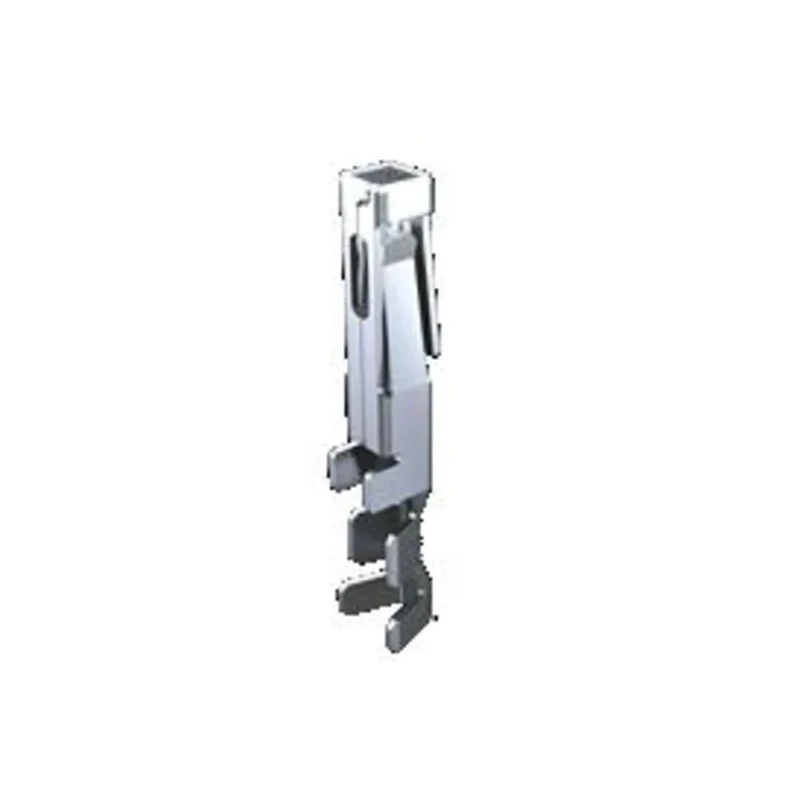

Samtec Female Crimp Terminal, Matt Tin Plated, Phosphor Bronze Contact, 16-24 AWG Wire Size, 10.3A Current CC69L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Current | 10.3A |
| Model | CC69L |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | CC69L |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Housing IPBD |
| Contact Plating | Matt Tin |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Constructed from phosphor bronze for durability and conductivity.
- Features matt tin plating for corrosion resistance.
- Compatible with Housing IPBD connectors.
- Supports wire sizes from 16 to 24 AWG.
- Provides current rating of 10.3 amperes.
- Operates within -55°C to 105°C temperature range.
- Ensures maximum contact resistance of 15 milliohms.
- Loose contacts available for flexible assembly.
Product Description
Samtec CC69L Series Female Crimp Terminal is engineered for use in electronic components, especially suitable for PCB connectors and wire housing assemblies.
Made from high-quality phosphor bronze with matt tin plating, this crimp terminal supports wire sizes from 16 AWG minimum to 24 AWG maximum, providing electrical current capacity up to 10.3 amperes. It operates reliably within a temperature range from -55°C to 105°C, making it suitable for demanding industrial and electronic applications.
The crimp terminal features a standard pitch of 0.165 inches (4.19 mm), ensuring compatibility with common connector housings such as the IPBD housing type. Its low contact resistance of 15 milliohms ensures efficient signal and power transmission.
Loose contacts are supplied to facilitate flexible assembly for manufacturing or repair purposes. Assembly tooling is available to support consistent crimp termination quality.
This product is ideal for a wide range of industries including industrial automation, electronics manufacturing, telecommunications, and instrumentation where reliable wire termination is critical.
Constructed from phosphor bronze for durability and conductivity. Matt tin plating provides corrosion resistance. Compatible with Housing IPBD connectors. Wire size range: 16 to 24 AWG. Current rating of 10.3A. Operating temperature range: -55°C to 105°C.
Low contact resistance of 15 milliohms. Loose contacts supply ease of assembly.
Choose Samtec CC69L Female Crimp Terminal for reliable, durable wire termination in professional electrical and electronic assemblies. Explore more electronic components and connectors on EnvMart for your manufacturing needs.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 10.3 amperes, making it suitable for various electrical applications.
It supports wire sizes ranging from 16 AWG to 24 AWG, allowing for flexibility in wire termination.
This terminal operates reliably within a temperature range of -55°C to 105°C, suitable for demanding environments.
The contact is made from phosphor bronze, which provides good conductivity and durability.
It features matt tin plating, which offers corrosion resistance for enhanced longevity.
It is compatible with Housing IPBD connectors, ensuring ease of assembly with common connector types.
The maximum contact resistance is 15 milliohms, which helps ensure efficient signal and power transmission.
Yes, loose contacts are supplied to facilitate flexible assembly for manufacturing or repair purposes.
This terminal uses a crimp termination type, which is common for reliable electrical connections.
It is ideal for industries such as industrial automation, electronics manufacturing, telecommunications, and instrumentation.
The crimp terminal features a standard pitch of 0.165 inches (4.19 mm), ensuring compatibility with various connector housings.
The country of origin for this product is India, indicating its manufacturing location.
