Nexperia Bipolar Transistor 100 mA NPN 45 V 3-Pin SOT-8009 BC847AQC-QZ

The Nexperia BC847AQC-QZ is a Bipolar Transistor designed for general-purpose amplification and switching applications. It is an NPN transistor with a maximum DC collector current of 100 mA and a collector-emitter voltage rating of 45 V, making it suitable for low power circuits in consumer electronics and automotive uses.

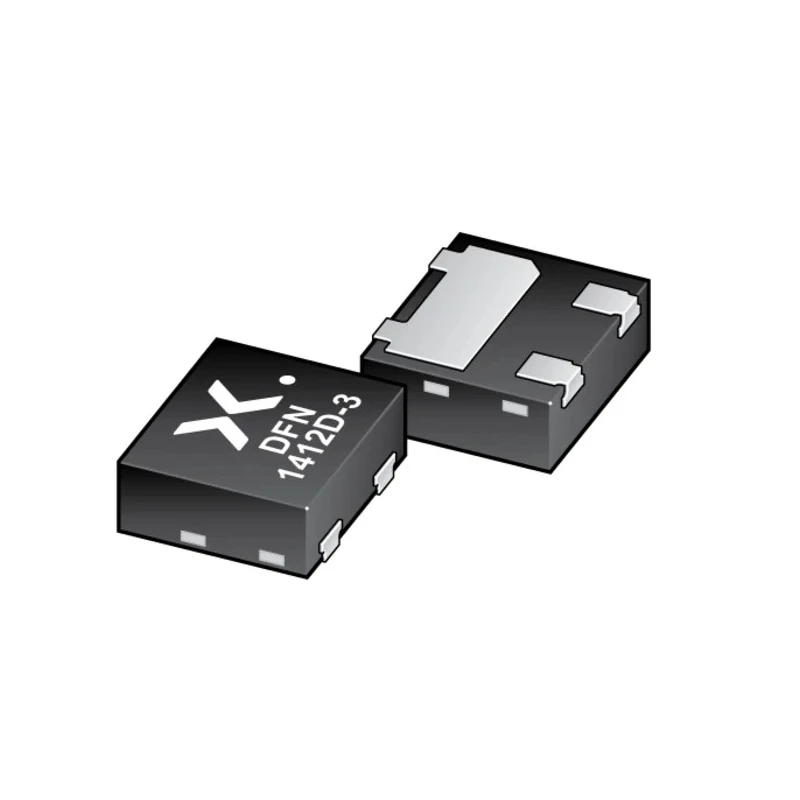

Packaged in an ultra-small leadless Surface-Mounted Device (SMD) format, specifically the DFN1412D-3 SOT-8009 package, the transistor has a compact footprint and a low profile height of 0.5 mm. The package’s side-wettable flanks allow for easy and reliable soldering and are compatible with automatic optical inspection (AOI) systems to ensure quality solder joint inspection during manufacturing.

The device supports a wide operating temperature range from -55°C to +150°C, allowing use in harsh environmental conditions often encountered in automotive and industrial applications. It meets the AEC-Q101 automotive standard, confirming its suitability for automotive system integration.

Featuring a minimum DC current gain (hFE) of 110, the transistor provides reliable amplification performance in switching and signal processing circuits. It is surface mountable, with a 3-pin configuration suitable for compact printed circuit board designs where space is limited.

Additionally, the device complies with RoHS environmental regulations for lead-free, environmentally friendly electronics manufacturing, making it a sustainable choice for industrial, automotive, and commercial applications.

The transistor supports a maximum DC collector current of 100 mA. Maximum collector-emitter voltage is rated at 45 V for reliable operation. It features a low-profile surface mount SOT-8009 package suitable for compact designs.

The transistor is qualified according to AEC-Q101 automotive standards. Operating temperature range is from -55°C to 150°C for diverse environments. Current gain (hFE) minimum is 110 for effective amplification. Maximum collector-base voltage is 50 V, and maximum emitter-base voltage is 6 V.

The device package height is 0.5 mm with side-wettable flanks supporting automatic optical inspection. It is RoHS compliant ensuring environmentally safe usage.

This transistor is ideal for industrial electronics, automotive systems, telecommunications, and general-purpose amplification or switching in electronic circuit boards. It offers reliability and performance in a small footprint suitable for modern compact electronics manufacturing.
