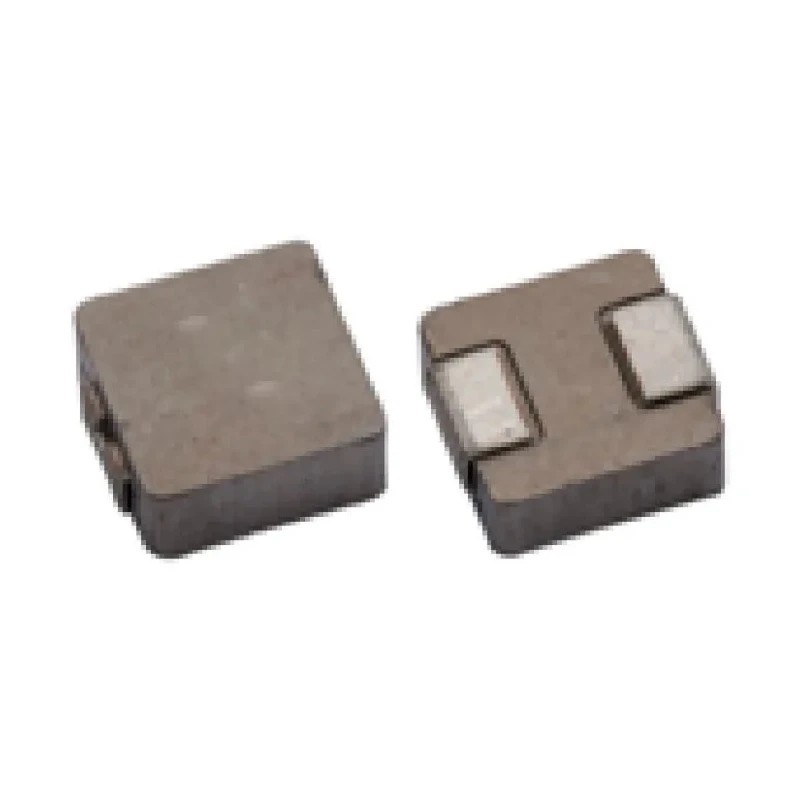

Abracon Shielded Surface Mount Inductor with Iron Core 4.7nH ±20% 4.5A 5.6mm Length ASPI-0530LR-4R7M-T2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3mm |
| Length | 5.6mm |
| Model | ASPI-0530LR-4R7M-T2 |
| Depth | 3mm |
| Packaging | Tape and Reel |
| Series | ASPI-0530LR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Iron |
| Inductance | 4.7nH |
| Standards/Approvals | QS 9000, Pb RoHS, ISO 9001 |
| Package/Case | Surface Mount |
| Maximum DC Current | 4.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 65mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Suitable for Reflow Soldering |
| Inductor Construction | Moulding Type Power Inductor |
Key Features
- Compact surface mount package measuring 5.6 mm in length and 3 mm in height and depth.
- Shielded construction with an iron core for reduced electromagnetic interference.
- Moulding type power inductor suitable for high saturation current applications.
- Operates reliably between -55°C and 125°C temperature range.
- Maximum DC resistance of 65 milliohms ensures low power loss.
- Designed for reflow soldering and supplied in tape and reel packaging for automated assembly.
- Complies with QS 9000, Pb RoHS, and ISO 9001 standards ensuring quality and environmental compliance.
- Pin count of 2 for standard surface mount installation.
Product Description
Abracon ASPI-0530LR-4R7M-T2 is a shielded surface mount inductor featuring an iron core with an inductance of 4.7 nH and a tolerance of ±20%. It is designed for applications requiring high saturation current up to 4.5 A while maintaining low DC resistance of 65 mΩ, contributing to efficiency in power circuits.
This moulding type power inductor has a compact form factor, measuring 5.6 mm in length and 3 mm in both height and depth, making it suitable for space-constrained designs. Its shielding and iron core construction minimize electromagnetic interference, enhancing signal integrity.
It is capable of operating reliably in environments with temperatures ranging from -55°C to 125°C and is suitable for automated manufacturing processes due to its tape and reel packaging and compatibility with reflow soldering.
The ASPI-0530LR-4R7M-T2 series adheres to quality and environmental standards including QS 9000, Pb RoHS, and ISO 9001, ensuring dependable performance in electronics applications.
Compact dimensions enable use in notebooks, netbooks, desktops, servers, and low-profile power supplies. High saturation current supports demanding DC/DC converter power applications. Low DC resistance reduces energy losses and heat generation.
Shielded iron core construction improves electromagnetic compatibility. Packaging in tape and reel format allows efficient automated PCB assembly. Compliance with industry standards ensures product reliability and safety.
Suitable for use in industrial, electronic components, telecommunications, and power supply systems.
This surface mount inductor is ideal for designers and engineers seeking a reliable passive component for high-frequency power circuits where size, efficiency, and EMI reduction are critical.
Explore more Surface Mount Inductors and Abracon quality components in EnvMart to meet your precise electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7 nH with a tolerance of ±20%.
This inductor has a maximum DC current rating of 4.5 A, making it suitable for high saturation current applications.
The dimensions of this unit are 5.6 mm in length, and 3 mm in both height and depth.
The maximum DC resistance is 65 milliohms, which helps to reduce power loss in circuits.
It operates reliably in a temperature range from -55°C to 125°C.
This model features a shielded construction with an iron core, which minimizes electromagnetic interference.
It is supplied in tape and reel packaging, making it suitable for automated assembly processes.
Yes, it is designed to be suitable for reflow soldering, facilitating its integration into PCB designs.
It complies with QS 9000, Pb RoHS, and ISO 9001 standards, ensuring quality and environmental compliance.
This inductor has a pin count of 2, which is standard for surface mount installations.
It is suitable for use in notebooks, netbooks, desktops, servers, and low-profile power supplies, particularly in high-frequency power circuits.
The core material of this inductor is iron, which contributes to its shielding and performance characteristics.
