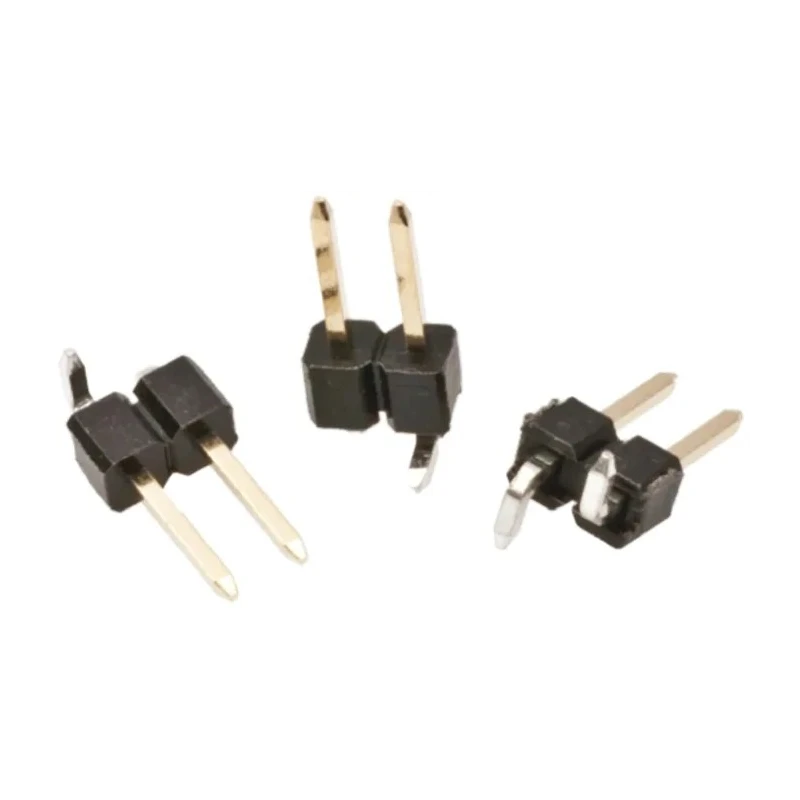

HARWIN M20 Series Straight Surface Pin Header 5 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-8770542
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M20-8770542 |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.8mm |
Key Features
- Features a 2.54 mm pitch for standard PCB interfacing.
- Constructed with nylon housing to endure high temperature soldering.
- Provides a maximum current rating of 3A suitable for various electronics applications.
- Male brass contacts with gold plating ensure durable, corrosion-resistant connections.
- Supports operating temperatures from -40°C to 105°C for diverse environments.
- Unshrouded design allows ease of soldering and inspection.
- Surface mount type enables straightforward board-to-board or wire-to-board connectivity.
- 5.8 mm mating pin length accommodates common connector heights.
Product Description
HARWIN M20-8770542 is a straight surface mount pin header designed with 5 contacts arranged in a single row at a 2.54 mm pitch. The connector features a durable nylon housing engineered to withstand reflow soldering processes, making it ideal for embedded systems, motherboards, and various electronics assembly tasks.
This unshrouded pin header utilizes brass male contacts with gold plating to provide reliable electrical connections and resist corrosion. Rated for a current of 3A and operating temperature range of -40°C to 105°C, it suits industrial, consumer electronics, communications, and control systems.
The design versatility allows usage in board-to-board and wire-to-board connector systems with a solder termination type. The 5.8 mm mating pin length optimizes compatibility with M20 series sockets and jumpers.
These headers are essential components in electronics manufacturing, enabling flexible and robust connector solutions in high density PCB designs. Their thermoplastic housing and castellated design allow for precise customization and adaptation.
Features a 2.54 mm pitch for standard PCB interfacing. Constructed with nylon housing to endure high temperature soldering. Provides a maximum current rating of 3A suitable for various electronics applications. Male brass contacts with gold plating ensure durable, corrosion-resistant connections.
Supports operating temperatures from -40°C to 105°C for diverse environments. Unshrouded design allows ease of soldering and inspection. Surface mount type enables straightforward board-to-board or wire-to-board connectivity.
5.8 mm mating pin length accommodates common connector heights.
This product is manufactured in Taiwan, Province Of China, and meets required industrial standards ensuring quality and longevity. It is well suited for applications in industrial monitoring, communications, consumer electronics, and personal computing devices.
Explore more PCB connectors and electronic components on EnvMart for your industrial and manufacturing needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm, which is standard for PCB interfacing.
It has a maximum current rating of 3A, suitable for various electronics applications.
The housing is made of nylon, and it features male brass contacts with gold plating for reliable connections.
The operating temperature range is from -40°C to 105°C, making it suitable for diverse environments.
This pin header has 5 contacts arranged in a single row.
It uses a solder termination type, which is common for PCB connections.
The mating pin length is 5.8 mm, accommodating common connector heights.
It supports both board-to-board and wire-to-board connector systems.
This model is unshrouded, allowing for ease of soldering and inspection.
It is manufactured in Taiwan, Province Of China.
The orientation of this pin header is straight.
It is suitable for applications in industrial monitoring, communications, consumer electronics, and personal computing devices.
