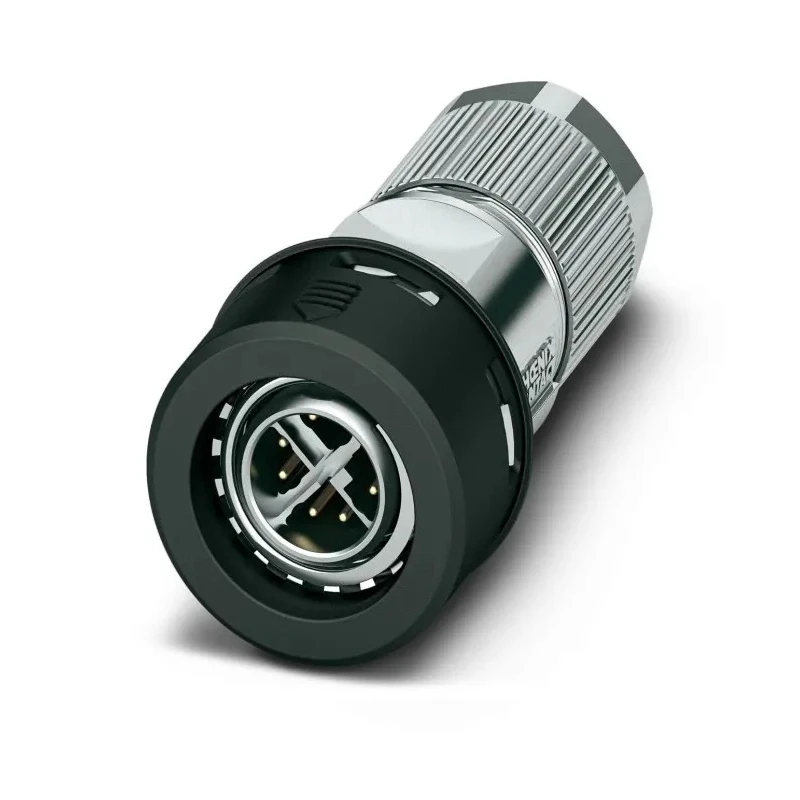

Phoenix Contact Industrial Circular Connector 8 Contacts Cable Mount M12 Plug IP65 IP67 SACC Series 1021783
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 500mA |
| Model | 1021783 |
| IP Rating | IP65, IP67 |
| Mount Type | Cable |
| Housing Material | Die Cast Zinc |
| Contact Material | Copper Zinc Alloy |
| Series | SACC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | EAC, EN, IEC, RoHS |
| Number of Contacts | 8 |
| Mating Type | Push Pull |
| Connector Size | M12 |
| Plug/Socket | Plug |
| Coding | X |
Key Features
- Compact design enables installation in small wiring spaces with high contact density.
- Constructed with die-cast zinc housing for robust mechanical stability and vibration resistance.
- Contacts are made of copper zinc alloy for corrosion resistance and optimal conductivity.
- Push-pull mating type ensures secure and easy connection and disconnection.
- Operating temperature range from -40°C to 85°C suits harsh environments.
- Termination via crimp type supports firm and reliable contact retention.
- Coding 'X' for data applications enhances system compatibility.
- Meets standards including EAC, EN, IEC, and RoHS compliance.
Product Description
Phoenix Contact 1021783 Industrial Circular Connector is an 8-contact cable-mounted M12 plug from the SACC Series. It offers an IP65 and IP67 rated protection class, making it suitable for industrial environments requiring dust-tight and waterproof connections. The connector operates at a rated voltage of 48 V AC and 60 V DC, delivering dependable electrical performance.
The connector features a compact, die-cast zinc housing that ensures mechanical robustness to withstand high shock and vibration loads encountered in applications such as railway systems. Contacts crafted from copper zinc alloy deliver excellent conductivity and corrosion resistance, supporting long-term reliability.
Designed for ease of use, the push-pull mating system allows secure and quick connections. The crimp termination method guarantees firm contact retention. The connector is coded with 'X', which is optimized for data transmission applications.
Its operating temperature range from -40°C to 85°C enables operation in extreme environmental conditions. This connector meets multiple international standards including EAC, EN, IEC, and RoHS, assuring quality and regulatory compliance.
The Phoenix Contact 1021783 circular connector is ideal for industrial sectors, railway applications, automation systems, and any setting where robust, compact, and reliable circular connectors are required.
Compact design suitable for constrained space installations. High contact density with 8 positions for versatile connectivity. Die-cast zinc housing provides protection and mechanical strength. Copper zinc alloy contacts maximize electrical performance and durability.
Push-pull mating type for ease of connection and disconnection. Wide operating temperature range from -40°C to 85°C. Crimp termination for secure wire attachment. Coding 'X' designed for data applications. IP65 and IP67 rated protection for harsh environments.
Compliant with EAC, EN, IEC, and RoHS standards. Explore more Phoenix Contact circular connectors on EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a rated voltage of 60 V DC and 48 V AC, ensuring reliable electrical performance in various applications.
It operates effectively within a temperature range of -40°C to 85°C, making it suitable for extreme environmental conditions.
The housing is made from die-cast zinc, while the contacts are crafted from copper zinc alloy, providing mechanical stability and corrosion resistance.
This model features a crimp termination type, which ensures secure wire attachment and reliable contact retention.
The connector is rated IP65 and IP67, indicating it is dust-tight and waterproof, suitable for harsh industrial environments.
This industrial circular connector has 8 contacts, allowing for versatile connectivity options in various applications.
It features a push-pull mating type, which facilitates secure and easy connection and disconnection.
The connector meets several international standards including EAC, EN, IEC, and RoHS, ensuring quality and regulatory compliance.
The connector is designed with a straight orientation, suitable for various installation scenarios.
It is ideal for use in industrial sectors, railway applications, and automation systems where robust connectivity is required.
The connector has a current rating of 500 mA, making it suitable for low-power applications.
This model is coded with 'X', which is optimized for data transmission applications, enhancing system compatibility.
