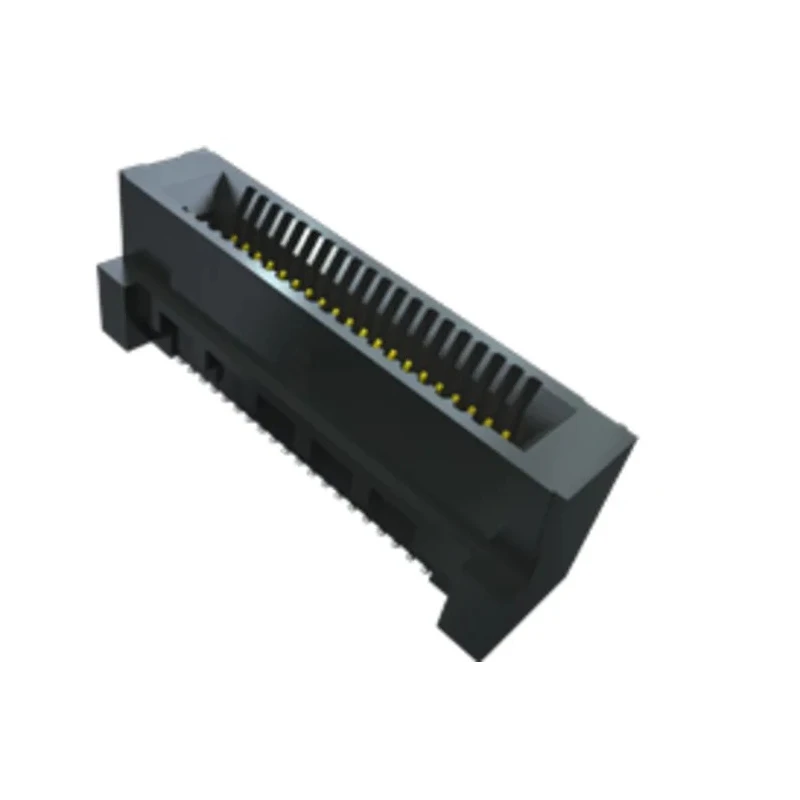

Samtec Vertical Edge Connector 60-Contacts 0.8 mm Pitch 2 Row Surface Mount Female Connector HSEC8-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2.8A |
| Model | HSEC8-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8-DV |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Card Slot | .062" (1.60 mm) |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1.6mm |
Key Features
- The connector supports a current rating of 2.8A with a voltage rating of 240V.
- It features beryllium copper alloy contacts plated with gold for excellent conductivity and corrosion resistance.
- The housing is made from durable liquid crystal polymer ensuring mechanical strength and thermal stability.
- Operating temperature ranges from -55°C to 125°C, suitable for harsh environments.
- The connector uses solder termination for secure PCB mounting.
- Card thickness supported is 1.6 mm with a card slot of 0.062" (1.60 mm).
- Its vertical orientation and surface mount design optimize PCB real estate usage.
- This series includes optional features like board locks, cable latching, and weld tabs for enhanced mechanical stability.
Product Description
Samtec HSEC8-DV Series Vertical Edge Connector (Model: HSEC8-DV) is a high-quality electronic connector featuring 60 female contacts arranged in 2 rows with a 0.8 mm pitch and surface mount termination. This connector is ideal for electronic, industrial, and manufacturing applications requiring reliable PCB edge connection functionality.
The contacts are made of beryllium copper alloy and plated with gold to provide excellent electrical conductivity and corrosion resistance. The housing material is liquid crystal polymer, providing mechanical robustness and high temperature tolerance from -55°C up to 125°C.
This vertical connector supports a current rating of 2.8A and voltage up to 240V, making it suitable for demanding power applications. Its solder termination ensures a secure and durable mount on printed circuit boards.
The design includes features like Rugged Edge Rate® contacts allowing single-ended and differential signal pairs. It accommodates a card thickness of 1.6 mm and card slot size of 0.062" (1.60 mm). Optional board locks, cable latching features, and weld tabs provide enhanced mechanical strength where required.
The series is part of Samtec's Extended Life Product™ (E.L.P.™) range, engineered for longevity and high performance at data speeds up to 28+ Gbps, addressing modern high-speed electronic communication needs.
The connector is suited for industrial, electronic manufacturing, HVAC controls, instrumentation, and commercial electronic device applications. It facilitates robust and precise edge connection in multi-contact PCB designs.
The vertical orientation optimizes PCB layouts by minimizing footprint.
This Samtec product is a trusted component in reliable electronic systems engineering. Browse EnvMart for more Samtec connectors and Edge Connector solutions to meet your project specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HSEC8-DV connector supports a current rating of 2.8A and a voltage rating of 240V.
The contacts are made from beryllium copper alloy plated with gold, while the housing is constructed from liquid crystal polymer.
It operates within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
This connector features 60 female contacts arranged in 2 rows.
The pitch is 0.8 mm, and it supports a card thickness of 1.6 mm with a card slot size of 0.062" (1.60 mm).
The HSEC8-DV connector uses solder termination for secure PCB mounting.
It is suitable for industrial, electronic manufacturing, HVAC controls, instrumentation, and commercial electronic device applications.
Optional features include board locks, cable latching, and weld tabs for enhanced mechanical stability.
This model has a vertical orientation and is designed for surface mount applications.
The Rugged Edge Rate® contacts allow for single-ended and differential signal pairs, enhancing signal integrity.
The connector is manufactured in India.
The maximum operating temperature for the HSEC8-DV connector is 125°C.
