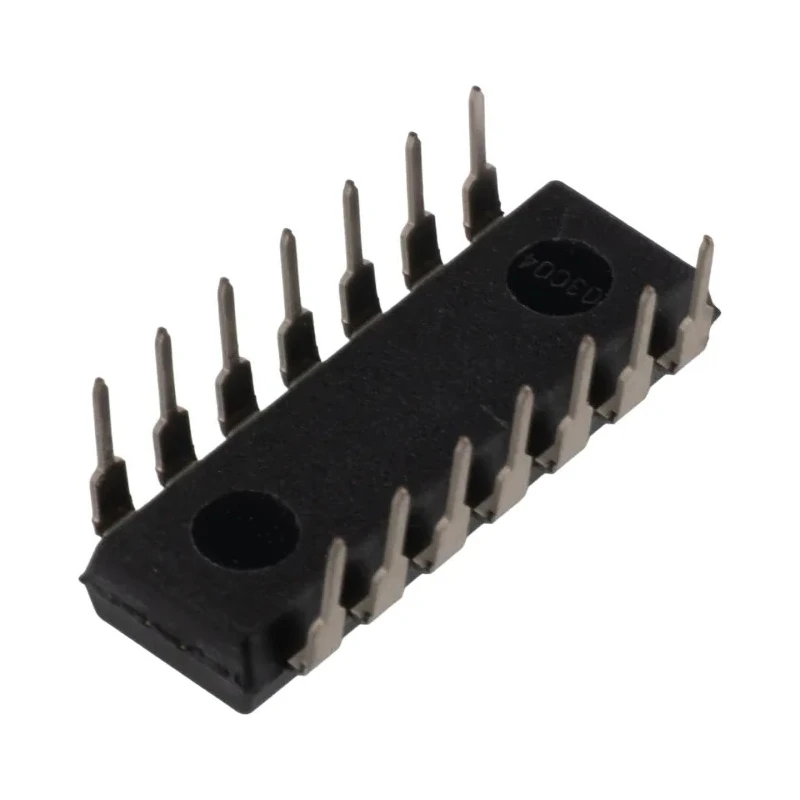

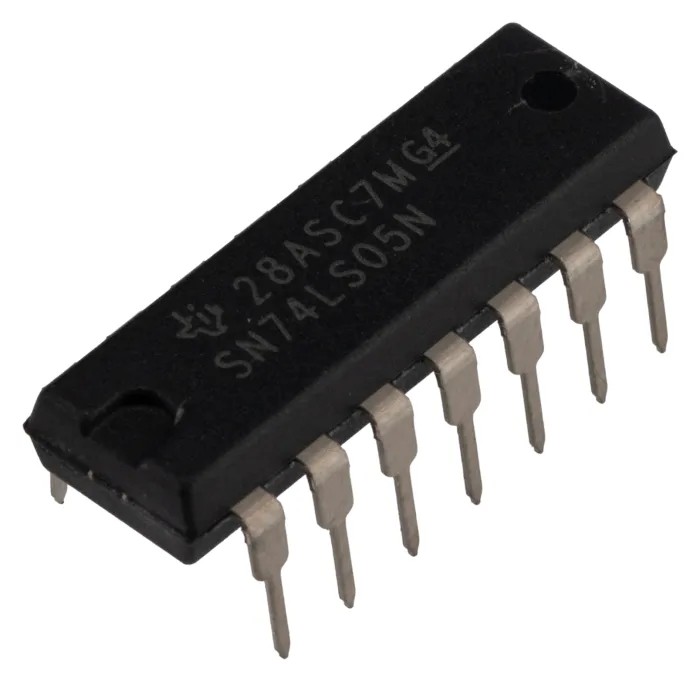

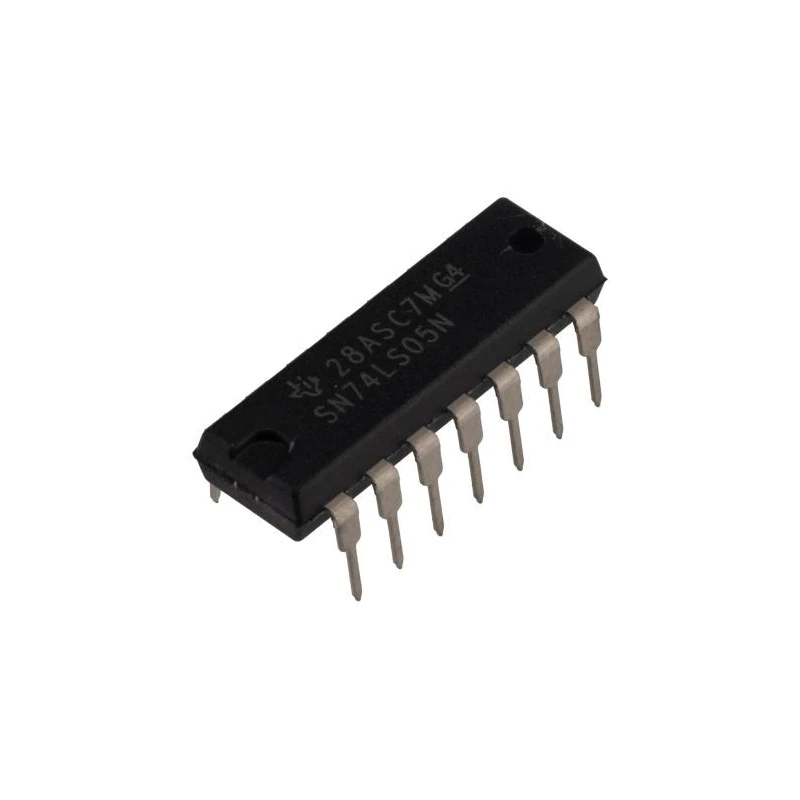

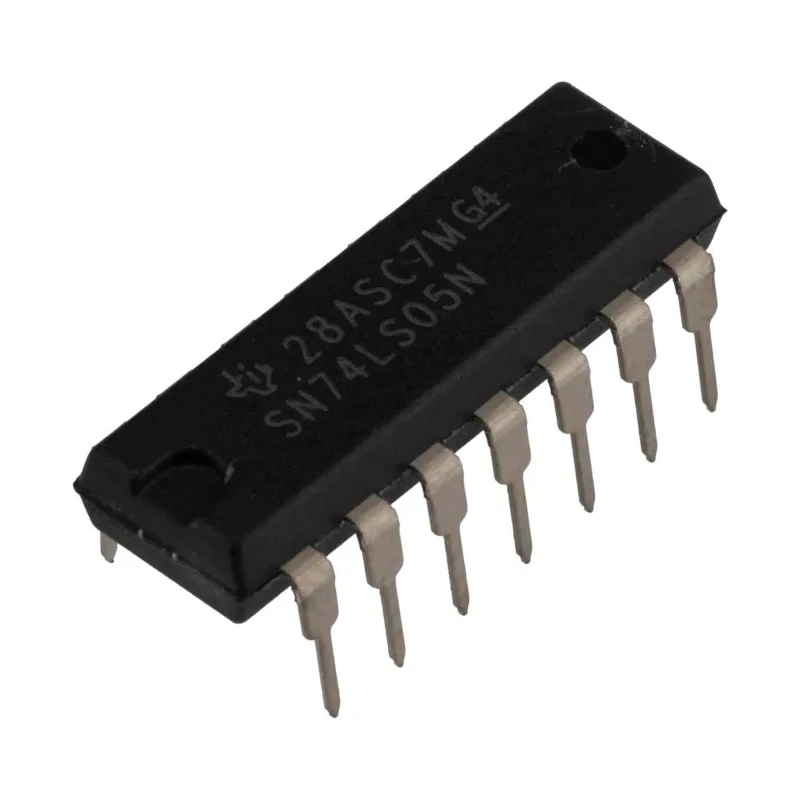

Texas Instruments Inverter Logic IC 6 Elements, 14-Pin PDIP SN74LS05N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN74LS05N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Output type | Open Collector |
| Series | SN74LS05 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | LS |
| Logic Function | Inverter |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -0.1mA |
| Maximum Low Level Output Current | 8mA |
Key Features
- Features six inverter gates in a single 14-Pin PDIP package.
- Designed with LS logic family for compatibility and high performance.
- Operates within supply voltage range of 4.75V to 5.25V.
- Open collector output type enables wired-AND configurations.
- Operating temperature range from 0°C to 70°C for industrial environments.
- Through-hole mount type ensures easy PCB assembly.
- Maximum low level output current of 8mA and high level output current of -0.1mA.
- No Schmitt Trigger input included, simplifying signal processing in design.
Product Description
Texas Instruments SN74LS05N is a 6-element inverter Integrated Circuit housed in a 14-Pin PDIP package, designed using low power Schottky logic (LS) technology.
This device supports open collector outputs, which are particularly useful for wired-AND logic circuits and allows for flexible interfacing with other components. Operating at a supply voltage between 4.75V and 5.25V, the SN74LS05N ensures stable performance within typical digital logic voltage levels.
The IC’s maximum operating temperature is rated at 70°C, and it is suitable for various industrial and electronic applications requiring reliable low power switching mechanisms. Its compact size with dimensions of 19.3mm length, 6.35mm width, and 4.57mm height makes it suitable for integration in densely populated circuit boards.
With a through-hole mount design, the SN74LS05N simplifies assembly processes in prototyping and manufacturing environments. Despite lacking Schmitt Trigger inputs, it offers robust inverter functionality with an output low level current capability of 8mA.
This product belongs to the 74LS05 series by Texas Instruments, known for combining speed and low power consumption using bipolar junction technology coupled with Schottky diode clamps.
Features six inverter gates in a single 14-pin PDIP package. Open collector output design enables wired-AND configurations. Supply voltage range from 4.75V to 5.25V for stable operation. Compact dimensions support integration into tight PCB layouts.
Suitable for industrial, electronics manufacturing, and general laboratory equipment applications. Through hole mount type facilitates easy soldering and replacement. Operating temperature range 0°C to 70°C for reliable performance.
Maximum low output current of 8mA, maximum high output current of -0.1mA.
This Texas Instruments SN74LS05N inverter logic IC is ideal for electronics engineers and technicians engaged in designing digital circuits and control systems. Explore further semiconductor and logic IC solutions on EnvMart for a broad array of industrial electronic components.
Explore more products in our Inverters ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN74LS05N operates within a supply voltage range of 4.75V to 5.25V.
This model features six inverter gates in a single 14-pin PDIP package.
It has an open collector output type, which allows for wired-AND configurations.
The maximum operating temperature for the SN74LS05N is rated at 70°C.
The dimensions of this model are 19.3mm in length, 6.35mm in width, and 4.57mm in height.
The maximum low level output current is 8mA.
The SN74LS05N features a through-hole mount type, facilitating easy PCB assembly.
No, this model does not include Schmitt Trigger inputs, simplifying signal processing in design.
This inverter IC belongs to the LS logic family, designed for compatibility and high performance.
The maximum high level output current is -0.1mA.
The SN74LS05N is manufactured in India.
It is suitable for various industrial and electronic applications requiring reliable low power switching mechanisms.
