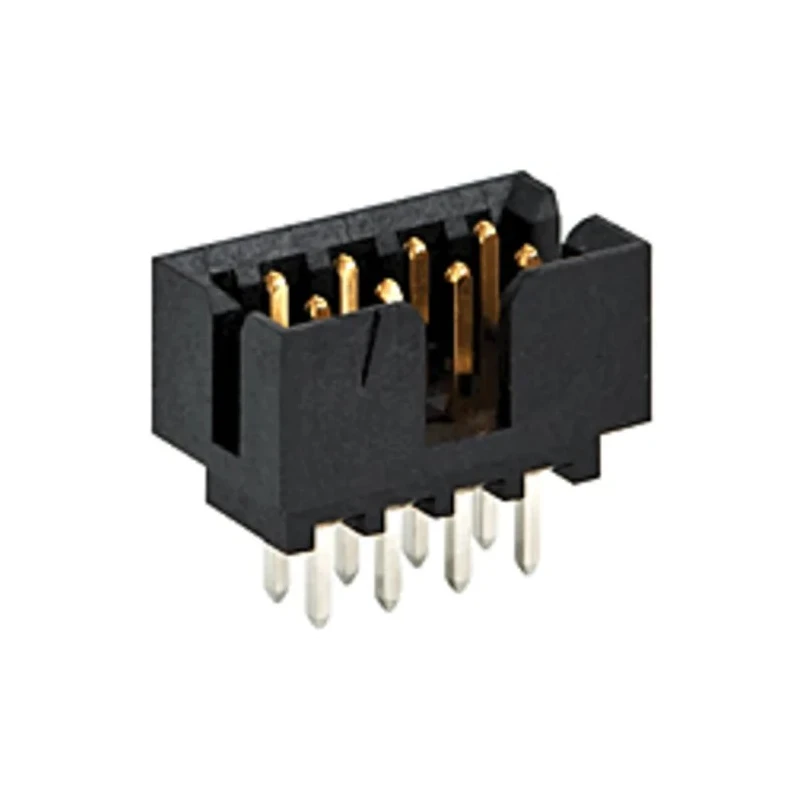

Molex Milli-Grid Series Straight Surface PCB Header 10 Contacts 2 mm Pitch 2 Row Shrouded 87831-1042

Molex 87831-1042 Milli-Grid Series Straight Surface PCB Header is a high-quality, 10-contact male connector designed for wire-to-board applications in electronics manufacturing. Featuring a 2 mm pitch and 2 row configuration, this PCB header is surface mount type with a shrouded housing made from nylon ensuring both durability and electrical insulation.

The contacts constructed from phosphor bronze material are plated with 0.76 μm of gold to provide excellent conductivity and prevent corrosion, making it ideal for industrial and commercial electronics use. With a current rating of 2 A and voltage capacity of 125 V, it meets the demands of moderate power electronic circuits.

Its termination is through solder pins with a tail pin length of 2.5 mm, facilitating reliable and robust PCB connections. The wide operating temperature range from -55°C to 105°C allows usage in challenging environmental conditions such as industrial controls, instrumentation, and communication devices.

The shrouded design includes a locking window that helps maintain secure mating and prevents pin damage during assembly. The absence of a center polarization slot and PCB locator enhances design flexibility, and the surface mount compatibility aligns with modern assembly lines.

This Molex PCB header is suitable for industries including electronics manufacturing, industrial machinery, telecommunications, and laboratory instrumentation. It supports diverse applications requiring dependable electrical connections on printed circuit boards.

The connector features a 2 row configuration suitable for compact PCB designs. Housing is made of durable nylon material providing good insulation. Contacts are phosphor bronze plated with 0.76 μm gold for enhanced conductivity and corrosion resistance.

It supports a maximum current rating of 2 A and voltage of 125 V. The termination type is solder with a 2.5 mm tail pin length for secure PCB mounting. Operating temperature range is from -55°C to 105°C, suitable for various industrial environments.

The connector is shrouded and includes a locking window to prevent misalignment during assembly. No center polarization slot and no PCB locator are included, allowing flexible design options. Mount type is surface mount, making it compatible with standard assembly processes.
