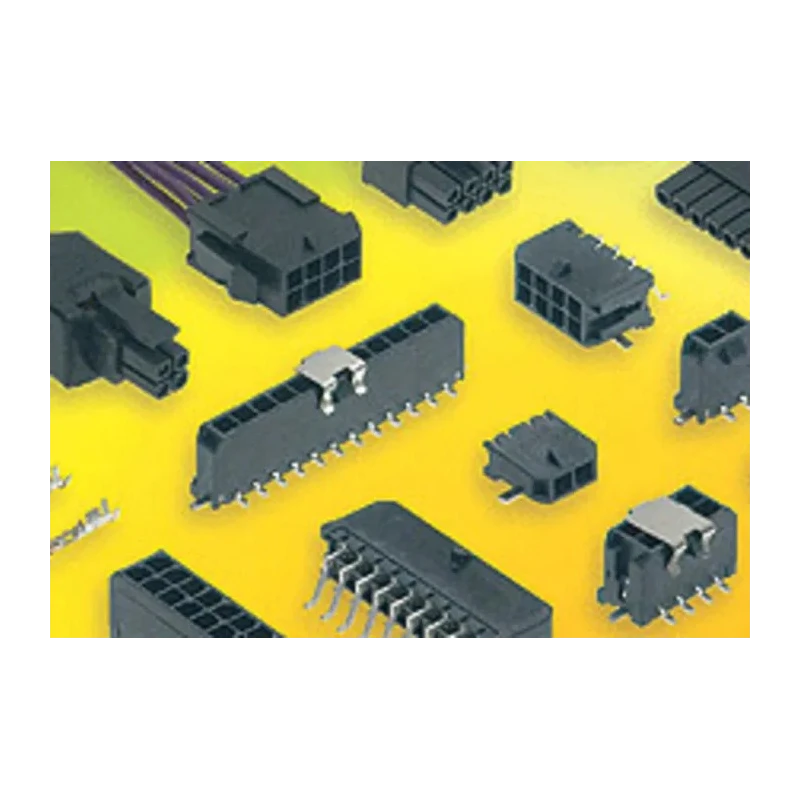

Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 2 Contacts 3 mm Pitch 1 Row Shrouded 43650-0210
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 8.5A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header features 2 contacts with a 3 mm pitch in a single-row configuration.
- Constructed with thermoplastic housing for durability and insulation.
- Contacts are male brass with gold plating to ensure reliable conductivity and corrosion resistance.
- Right-angle orientation suits space-saving PCB layouts.
- The header is shrouded to provide protection and polarization for mating connectors.
- Surface mount type allows for soldering on PCB surface to maintain secure mechanical bonds.
- Supports a maximum current of 8.5A and voltage rating of 600V.
- Operates reliably in temperature range from -40°C up to 125°C.
Product Description
Molex 43650-0210 Micro-Fit 3.0 Series Right Angle Surface PCB Header is engineered for wire-to-board interconnections requiring compact and robust solutions. Featuring a 3 mm pitch and 2 contacts arranged in a single row, this connector is shrouded to enhance durability and user safety. The right-angle orientation minimizes PCB space usage, ideal for dense circuit designs.
The header utilizes thermoplastic housing combined with male brass contacts gold plated for optimal conductivity and protection against corrosion. It supports a high current rating of 8.5A and withstands voltages up to 600V, making it suitable for various electronic and industrial equipment. Operating temperature ranges from -40°C to a maximum of 125°C, ensuring performance under diverse environmental conditions.
This connector supports surface mount solder termination which provides mechanical stability on printed circuit boards. It is designed to meet rigorous industrial standards though no specific certifications are listed.
Common industrial applications include electronics manufacturing, control panels, power supplies, and instrumentation where dependable PCB connections are critical. This product is part of the established Micro-Fit 3.0 series renowned for precision and reliability in wire-to-board connectors.
This PCB Header features 2 contacts with a 3 mm pitch in a single-row configuration. Constructed with thermoplastic housing for durability and insulation. Contacts are male brass with gold plating to ensure reliable conductivity and corrosion resistance.
Right-angle orientation suits space-saving PCB layouts. The header is shrouded to provide protection and polarization for mating connectors. Surface mount type allows for soldering on PCB surface to maintain secure mechanical bonds.
Supports a maximum current of 8.5A and voltage rating of 600V. Operates reliably in temperature range from -40°C up to 125°C. Termination method is solder type ensuring solid electrical connections. Manufactured in Mexico with high quality standards for industrial electronic applications.
Explore Molex Micro-Fit connectors and related components in the Electronics & Electricals category at EnvMart for advanced PCB solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 8.5A.
The voltage rating of this header is 600V.
The contacts in this model have a pitch size of 3 mm.
This connector utilizes a solder termination method for secure electrical connections.
The housing of this PCB header is constructed from thermoplastic material.
It operates reliably within a temperature range from -40°C to 125°C.
This PCB header features 2 contacts.
The connector is designed with a right-angle orientation, suitable for space-saving layouts.
This model is shrouded, providing protection and polarization for mating connectors.
This product is manufactured in Mexico.
This model is part of a wire-to-board connector system.
The contacts are made of brass and are gold plated to ensure reliable conductivity.
