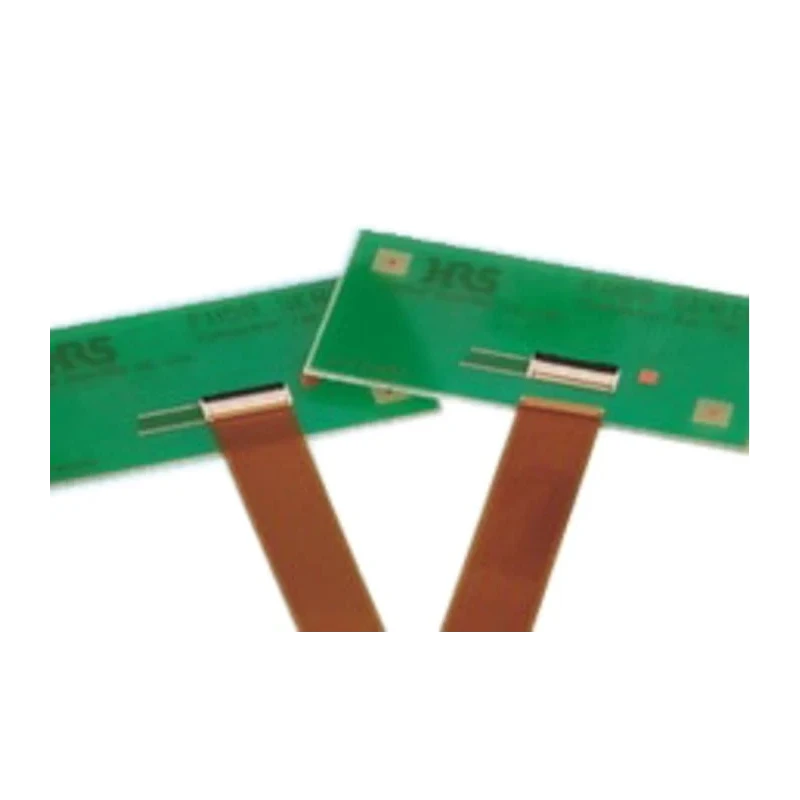

Hirose FPC Connector 31 Contacts 0.2 mm Pitch Horizontal Female Surface Mount FH58-31S-0.2SHW(99)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 30, 30V ac |
| Brand | Hirose |
| Orientation | Horizontal |
| Current | 200mA |
| Model | FH58-31S-0.2SHW(99) |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer, Polyamide |
| Contact Material | Phosphor Bronze |
| Series | 58 |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 0.2mm |
| Contact Plating | Gold |
| Number of Contacts | 31 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom, Top |
Key Features
- Features a Zero Insertion Force (ZIF) locking mechanism for easy mating.
- Contact material made of phosphor bronze with gold plating ensures reliable conductivity.
- Housing constructed from liquid crystal polymer and polyamide for durability.
- Supports operating temperatures ranging from -55°C to 85°C.
- Electrical rating of 30 VAC/VDC and 200 mA current capacity.
- Single row connector with bottom and top contact positions.
- Designed to support high-speed transmissions and provide high FPC retention force.
- Manufactured in Japan to high standards ensuring quality and reliability.
Product Description
Hirose FH58-31S-0.2SHW(99) is a 31-contact FPC Connector designed for high precision electronic applications. It features a 0.2 mm pitch with a horizontal female orientation and surface mount (SMT) termination. The connector utilizes a Zero Insertion Force (ZIF) locking mechanism, facilitating easy and secure mating while reducing wear on the flexible printed circuit (FPC).
Constructed with high-quality phosphor bronze contacts plated in gold, it guarantees reliable electrical conductivity and corrosion resistance. The housing is made of liquid crystal polymer and polyamide materials, providing mechanical strength and thermal stability.
This connector is rated for 30 volts AC/DC with a current carrying capacity of 200 mA. It supports operating temperatures from -55°C to 85°C, making it suitable for demanding environments and industrial applications. The single-row design with 31 ways and contacts positioned at both bottom and top ensures versatile mounting options for complex PCB designs.
Hirose's FH58 series connectors are engineered for excellent retention force and low insertion force, supporting high-speed data transmissions essential in modern electronics, including robotics, industrial machinery, medical devices, and telecommunications equipment.
Zero Insertion Force (ZIF) mechanism for easy and damage-free mating. Phosphor bronze contacts with gold plating for durability and electrical performance. Robust housing materials ensure mechanical and thermal reliability.
Supports full industrial temperature ranges from -55°C to 85°C. Compact 0.2 mm pitch and 31-way configuration for high-density PCB layouts.
This connector is manufactured in Japan, adhering to strict quality standards. It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring reliability in electrostatic discharge sensitive applications.
For professionals seeking a dependable and precise FPC connector for advanced electronics, the Hirose FH58-31S-0.2SHW(99) offers superior performance and reliability. Explore more FPC Connectors and related components in EnvMart’s extensive electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 0.2 mm.
It supports a maximum operating temperature of 85°C.
This connector has a current capacity of 200 mA.
The housing is made from liquid crystal polymer and polyamide, while the contacts are made of phosphor bronze with gold plating.
It uses a surface mount termination type.
This model features 31 contacts.
The voltage rating is 30 VAC/VDC.
It has a horizontal orientation.
It features a Zero Insertion Force (ZIF) locking mechanism for easy mating.
It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
The minimum operating temperature is -55°C.
The contact positions are at both the bottom and top.
