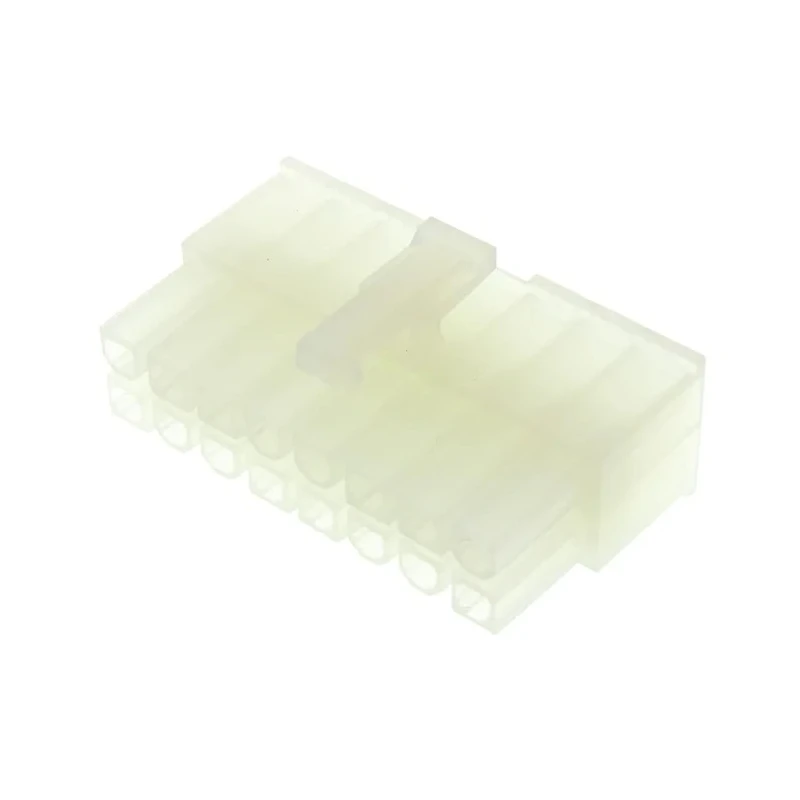

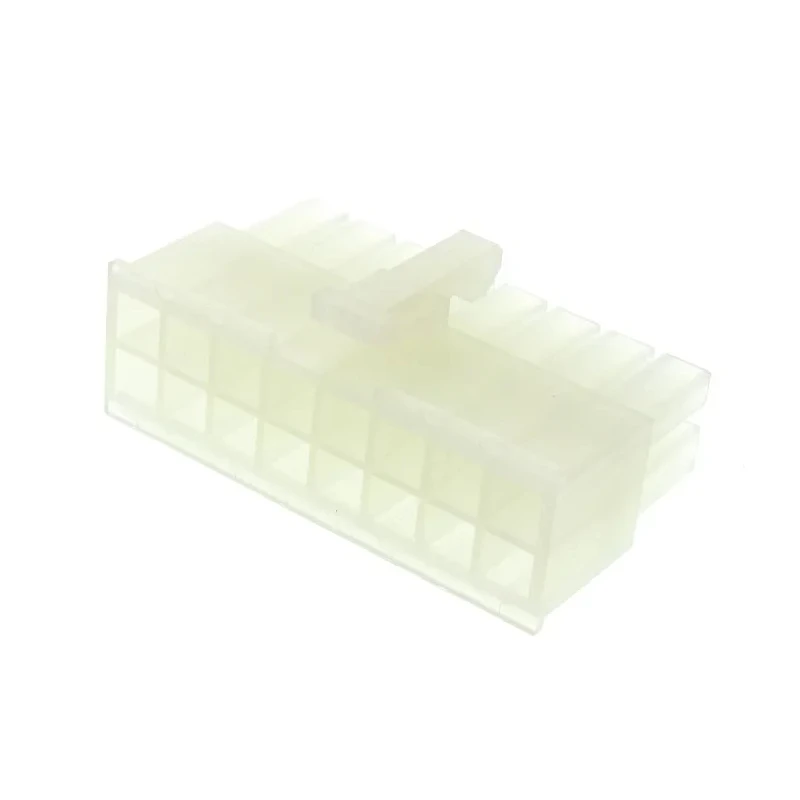

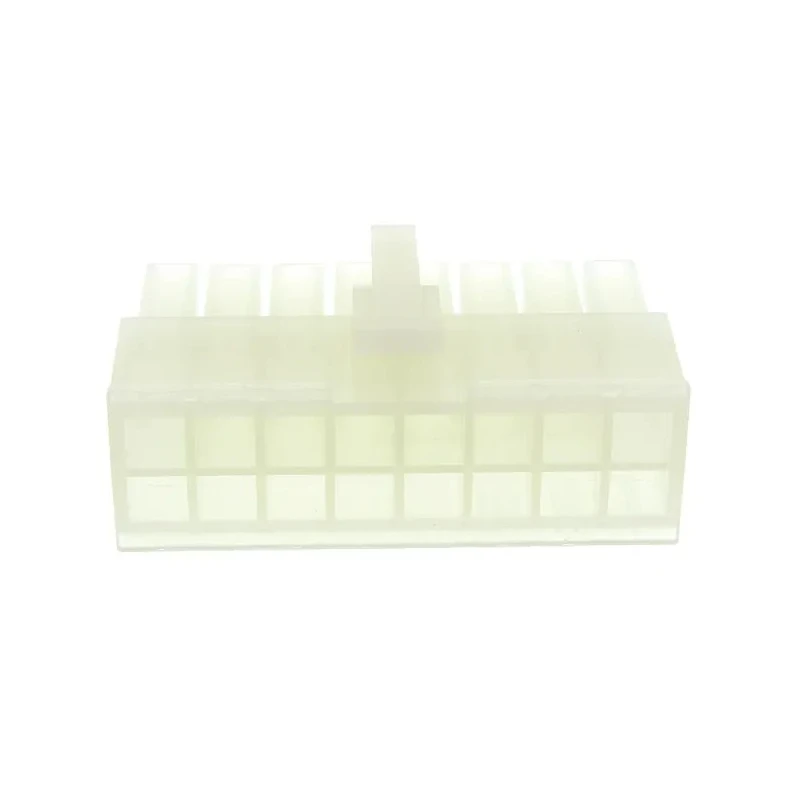

Molex Mini-Fit Female Connector Housing 4.2 mm Pitch 16 Way 2 Row Straight Nylon Housing 39-01-2160
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 34.8mm |
| Width | 19.6mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Mini-Fit |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | 45750 Mini-Fit Plus HCS Crimp Terminals, 5556 Mini-Fit Female Crimp Terminals |
| Number of Contacts | 16 |
| Connector Gender | Female |
Key Features
- Offers a 13A current rating suitable for high current connectors.
- Includes polarization and keying features to prevent mismating and misalignment.
- Audible click ensures a secure locking connection.
- Fully isolated terminals protect against debris and damage from mishandling.
- Constructed from durable nylon material for impact resistance.
- Designed for wire-to-wire and wire-to-board applications.
- Compatible with 45750 Mini-Fit Plus HCS and 5556 Mini-Fit Female Crimp Terminals.
- Has flame-retardant properties enhancing fire safety.
Product Description
Molex 39-01-2160 Mini-Fit Female Connector Housing is engineered with a 4.2 mm pitch and features 16 contacts arranged in 2 rows, providing efficient space usage and reliable power transmission.
This female connector housing is made from high-quality nylon, offering excellent impact resistance and durability for demanding environments in electronics manufacturing, automation, automotive, and medical applications.
The design incorporates polarization and keying to prevent mismating and misalignment during assembly, ensuring a secure and precise fit. An audible click confirms proper locking of the connector, preventing accidental disconnections caused by shock or vibration.
It supports a current rating of up to 13A per circuit, making it suitable for high-current applications. Terminals are fully isolated to protect against debris and damage resulting from mishandling, enhancing reliability and longevity.
The connector housing is intended for wire-to-wire and wire-to-board configurations, compatible with standard Mini-Fit and Mini-Fit Plus crimp terminals (45750 and 5556 series). This component also benefits from flame-retardant materials with UL94V-0 or UL94V-2 ratings, contributing to its fire safety compliance.
Offers a 13A current rating suitable for high current connectors. Includes polarization and keying to prevent mismating and misalignment. Audible click for secure locking confirmation. Fully isolated terminals protect against debris and mishandling damage.
Constructed of durable nylon housing material. Compatible with Mini-Fit and Mini-Fit Plus crimp terminals. Flame-retardant with UL94V-0 or UL94V-2 rated housing. Supports wire-to-wire and wire-to-board applications. Length: 34.8 mm; Width: 19.6 mm; Pitch: 4.2 mm.
Manufactured in China, ensuring consistent quality standards.
This Connector Housing is extensively used across industrial sectors such as electronics manufacturing, automotive, medical devices, and automation systems, where secure and reliable power connections are necessary.
Explore similar Molex Mini-Fit Jr connectors and housings on EnvMart for comprehensive electronic interconnection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing supports a current rating of up to 13A per circuit, making it suitable for high-current applications.
It is constructed from durable nylon material, providing impact resistance and enhancing the housing's longevity.
The dimensions of this connector housing are 34.8 mm in length and 19.6 mm in width.
This model features 16 contacts arranged in 2 rows, designed for efficient space usage.
It is intended for wire-to-wire and wire-to-board applications in sectors such as electronics manufacturing, automotive, medical devices, and automation systems.
Yes, it is compatible with 45750 Mini-Fit Plus HCS and 5556 Mini-Fit Female Crimp Terminals.
The design incorporates polarization and keying features to prevent mismating and misalignment, ensuring a secure fit.
Yes, it features an audible click that confirms the proper locking of the connector, preventing accidental disconnections.
The pitch of this connector housing is 4.2 mm, which aids in its compact design.
The housing is made from flame-retardant materials with UL94V-0 or UL94V-2 ratings, contributing to its fire safety compliance.
This connector housing has a straight orientation, suitable for various installation configurations.
This connector housing is manufactured in China, ensuring consistent quality standards.
