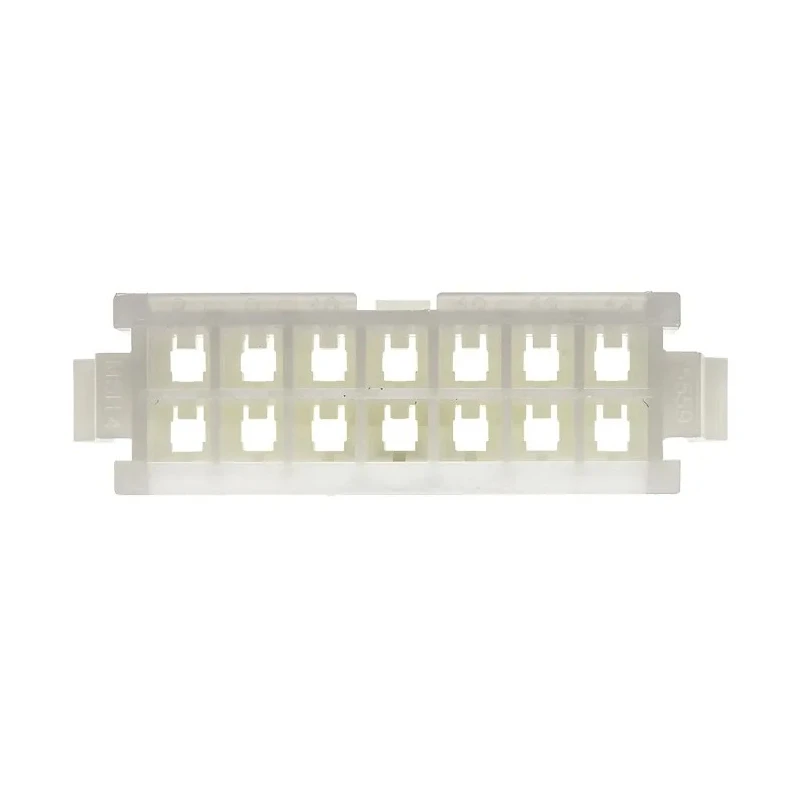

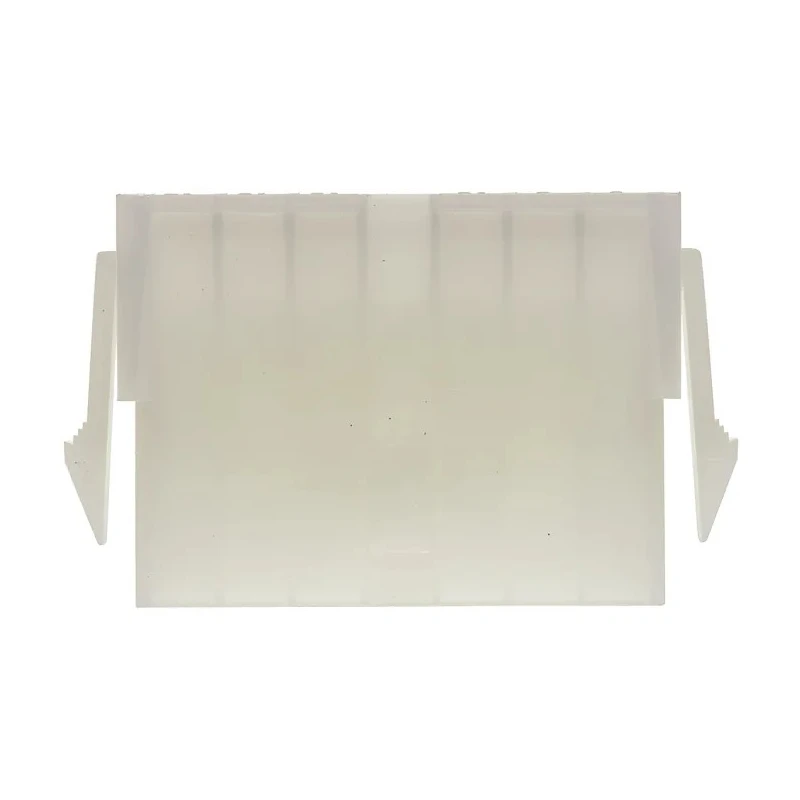

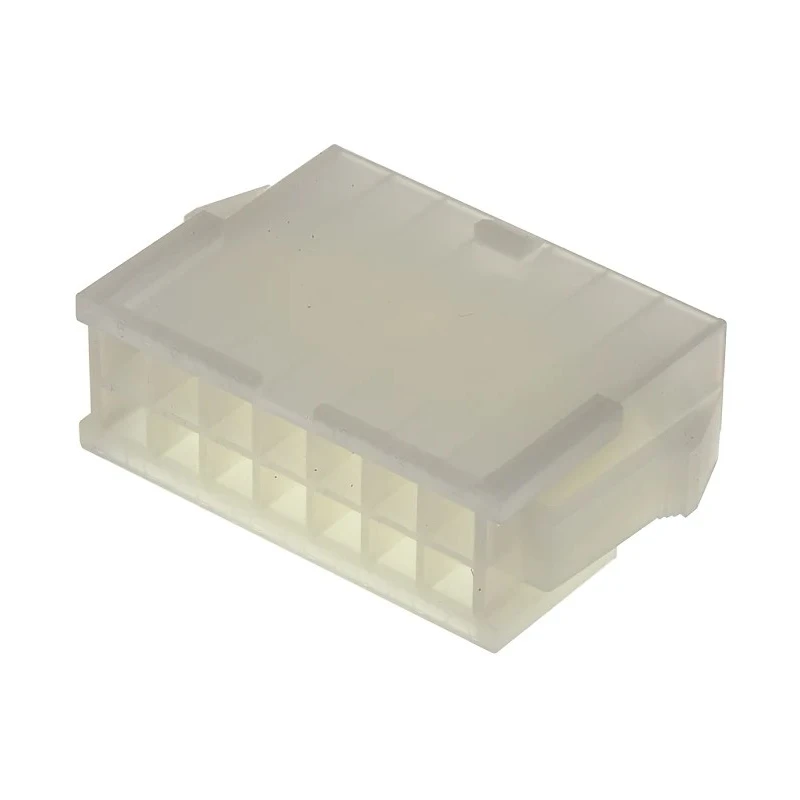

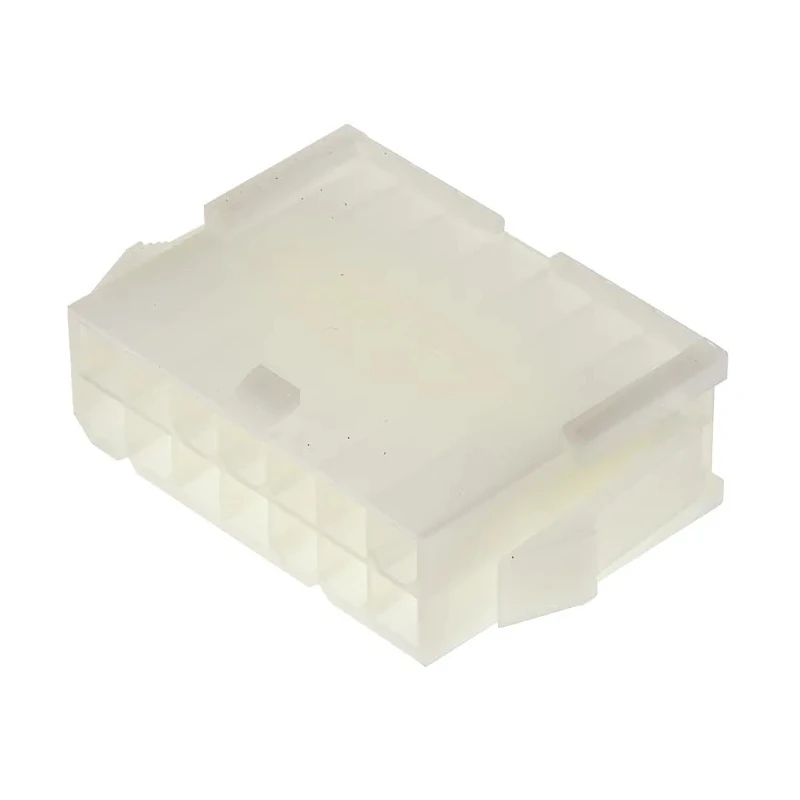

Molex Mini-Fit Jr Male Connector Housing 4.2 mm Pitch 14 Way 2 Row Straight 39-01-2141
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 36mm |
| Width | 12mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | Mini-Fit Jr |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | Mini-Fit Jr. Plug |
| Number of Contacts | 14 |
| Connector Gender | Male |
Key Features
- Compact dimensions of 36 mm length and 12 mm width optimize PCB space usage.
- Constructed from rugged nylon material for durable performance.
- Supports up to 13A current per circuit ensuring high current capacity.
- Polarized design prevents conductor mismatches for safe operation.
- Features positive locking to secure connections against vibration and shocks.
- Suitable for wire-to-board and wire-to-wire applications using Mini-Fit Jr. plugs.
- Withstands ambient temperatures from -40°C to +105°C for reliable function.
- Self-extinguishing housing material enhances safety in case of fire.
Product Description
Molex 39-01-2141 Mini-Fit Jr Male Connector Housing is an industrial-quality connector housing designed for effective wire-to-board and wire-to-wire interconnections. Featuring a 4.2 mm pitch with 14 contact ways arranged in two rows, this connector housing supports secure and compact integration within electronic assemblies.
The housing is crafted from high-quality nylon that provides excellent mechanical strength and heat resistance, functioning reliably over a temperature range of -40°C to +105°C. Its compact dimensions of 36 mm length, 12 mm width, and 23.9 mm depth minimize footprint while maintaining robust electrical performance for currents up to 13 amps per circuit.
Designed to prevent misalignment, the connector housing includes polarization features and a positive locking mechanism ensuring a secure connection even in environments subject to vibration or shock. The self-extinguishing nylon material contributes to fire safety, making it suitable for demanding industrial and electronic applications including consumer electronics, medical instruments, test and measuring devices, and industrial control panels.
This connector housing is compatible with Mini-Fit and Mini-Fit Plus crimp terminals, providing versatility for various wiring solutions. The panel-mount straight orientation facilitates easy installation and reliable operation in power and signal transmission roles.
Compact nylon housing suitable for high current applications up to 13A per circuit. Polarized design to prevent conductor mismatches and damage. Positive locking mechanism for secure mating and vibration resistance. Wide operational temperature range from -40°C to +105°C.
Self-extinguishing housing material for enhanced safety. Compatible with Mini-Fit Jr. plugs and crimp terminals. Ideal for consumer electronics, medical devices, and industrial controls. Panel mount type with straight connector orientation.
This reliable Connector Housing is part of the extensive Molex Mini-Fit Jr. series, designed to streamline wire-to-wire and wire-to-board connectivity challenges in professional and industrial settings. Browse more electronic connectors on EnvMart to find complementary parts and accessories for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports up to 13A current per circuit, ensuring high current capacity for various applications.
The compact dimensions are 36 mm in length, 12 mm in width, and 23.9 mm in depth, optimizing PCB space usage.
The housing is constructed from rugged nylon material, providing mechanical strength and heat resistance.
It can operate reliably over a temperature range of -40°C to +105°C, making it suitable for demanding environments.
This model features 14 contacts arranged in two rows, allowing for versatile connectivity options.
Yes, it is compatible with Mini-Fit and Mini-Fit Plus crimp terminals, providing flexibility for various wiring solutions.
The polarized design of the housing prevents conductor mismatches, ensuring safe operation during use.
It supports panel mount installation, facilitating easy setup and reliable operation in electronic assemblies.
It features a positive locking mechanism that secures connections against vibration and shocks, enhancing reliability.
It is suitable for wire-to-board and wire-to-wire applications, including consumer electronics, medical instruments, and industrial controls.
The country of origin for this product is India, reflecting its industrial quality and standards.
The contacts are arranged with a pitch of 4.2 mm, which is standard for the Mini-Fit Jr series.
