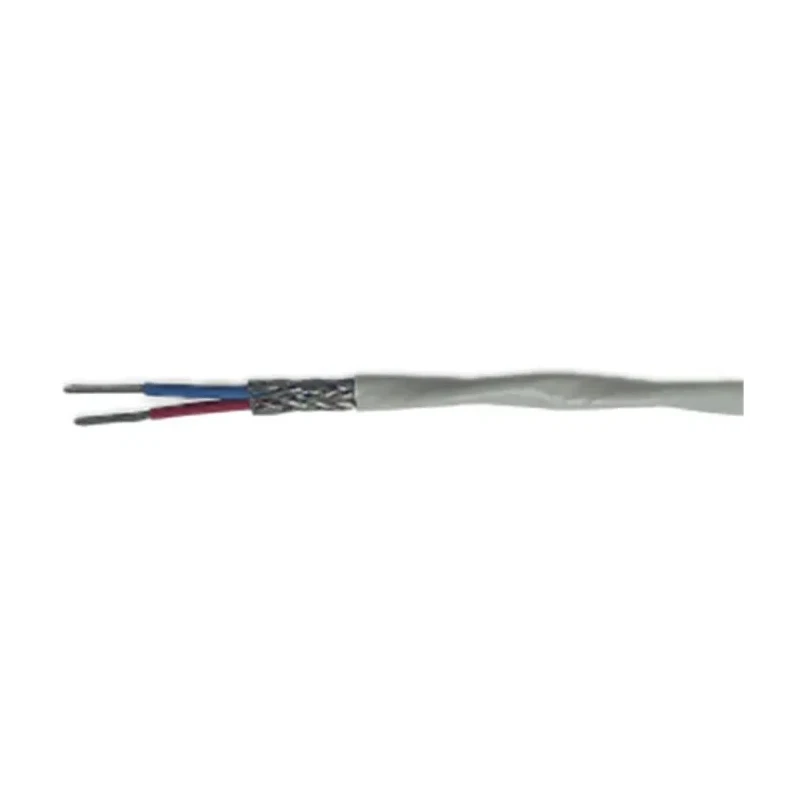

TE Connectivity Type 55 Series Red Blue 0.38 mm² 22 AWG Hook Up Wire, 19x34 AWG Core Strands, 100 m 55A1121-22-2/6-9
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| CROSS SECTIONAL AREA | 0.38mm² |
| Model | 55A1121-22-2/6-9 |
| Cable Length | 100m |
| Series | Type 55 |
| Outside diameter | 3.02mm |
| Maximum Operating Temperature | 150°C |
| Conductor Material | Tinned Copper |
| Minimum Operating Temperature | -65°C |
| Jacket Material | Ethylene Tetrafluoroethylene |
| Standards/Approvals | RoHS Compliant |
| Jacket Colour | Red, Blue |
| Fire Behaviour | Flame Retardant, Self-Extinguishing |
| American Wire Gauge | 22AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 34AWG |
| Size of Strands | 34AWG |
Key Features
- The wire features a 0.38 mm² cross-sectional area for precise electrical conduction.
- Color coded red and blue jackets facilitate easy identification and wiring organization.
- Constructed with 19 strands of 34 AWG tinned copper cores ensuring excellent conductivity.
- Designed for voltage rating up to 600 V and temperature ratings from -65°C to 150°C.
- The ethylene tetrafluoroethylene jacket offers flame retardant and self-extinguishing properties.
- Compliant with RoHS standards, ensuring environmental safety.
- This Type 55 Series wire exhibits resistance to chemicals, UV exposure, and electrical arc tracking.
- Suitable for aerospace, industrial, and high-performance electrical applications.
Product Description
TE Connectivity 55A1121-22-2/6-9 Type 55 Series Hook Up Wire features a 0.38 mm² cross-sectional area and 22 AWG gauge with 19 strands of 34 AWG tinned copper core strands. The wire is jacketed with ethylene tetrafluoroethylene (ETFE), known for its flame retardant and self-extinguishing properties. Rated for operation at voltages up to 600 V and capable of withstanding temperatures from -65°C to 150°C, this cable is engineered for demanding electrical and industrial environments.
This wire's dual-wall Airframe construction with 0.25 mm total wall thickness and contrasting core color (blue) provides damage indication and reliable mechanical durability. Its chemically resistant jacket ensures exceptional resistance to most corrosive substances, electrical arc tracking, and environmental factors including UV and moisture degradation.
Primarily used in aerospace, avionics, satellite systems, helicopters, high performance military systems, and industrial wiring, the Type 55 wire meets stringent technical requirements with superior shop handling, scrape abrasion, and flexibility.
Key attributes include small size and ultra-lightweight construction, enhanced mechanical ruggedness, and compatibility with rigorous international environmental standards. The product is RoHS compliant, ensuring its safe use in modern electrical applications.
The wire has a 0.38 mm² cross-sectional area allowing fine conduction for precise wiring needs. Features a reliable tinned copper conductor with 19 strands of 34 AWG core strands for excellent current carrying capacity. Jacket material is ETFE, recognized for its flame retardant and self-extinguishing characteristics.
Rated for maximum voltage of 600 V and operates in temperature range from -65°C up to 150°C. Highly resistant to UV radiation, moisture, and various chemicals for prolonged service life. Ideal for demanding industrial and aerospace electrical applications requiring complex wiring solutions.
Available in 100-meter reels with dual color jackets (red and blue) for enhanced wiring identification. Meets RoHS compliance standards for safe, eco-friendly electrical wiring. Set contains one reel of 100 meters insulated Hook Up Wire.
Explore the full range of high performance industrial and aerospace wiring solutions available at EnvMart for your technical and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hook up wire has a cross-sectional area of 0.38 mm².
It is rated for a maximum voltage of 600 V.
This wire can operate in temperatures ranging from -65°C to 150°C.
The conductor is made of tinned copper, and the jacket is made from ethylene tetrafluoroethylene (ETFE).
The wire is available in a length of 100 meters per reel.
The wire features dual color jackets in red and blue for easy identification.
The conductor consists of 19 strands of 34 AWG core strands.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
The jacket is flame retardant and self-extinguishing, providing added safety.
It is suitable for aerospace, industrial, and high-performance electrical applications.
The outside diameter of the wire is 3.02 mm.
The contrasting core color (blue) provides damage indication and enhances mechanical durability.
