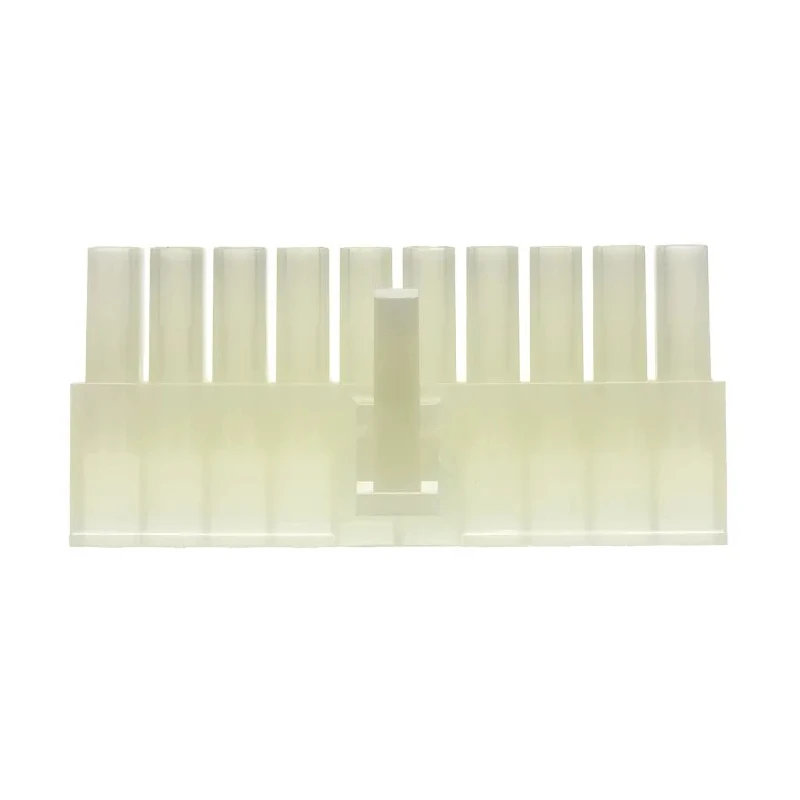

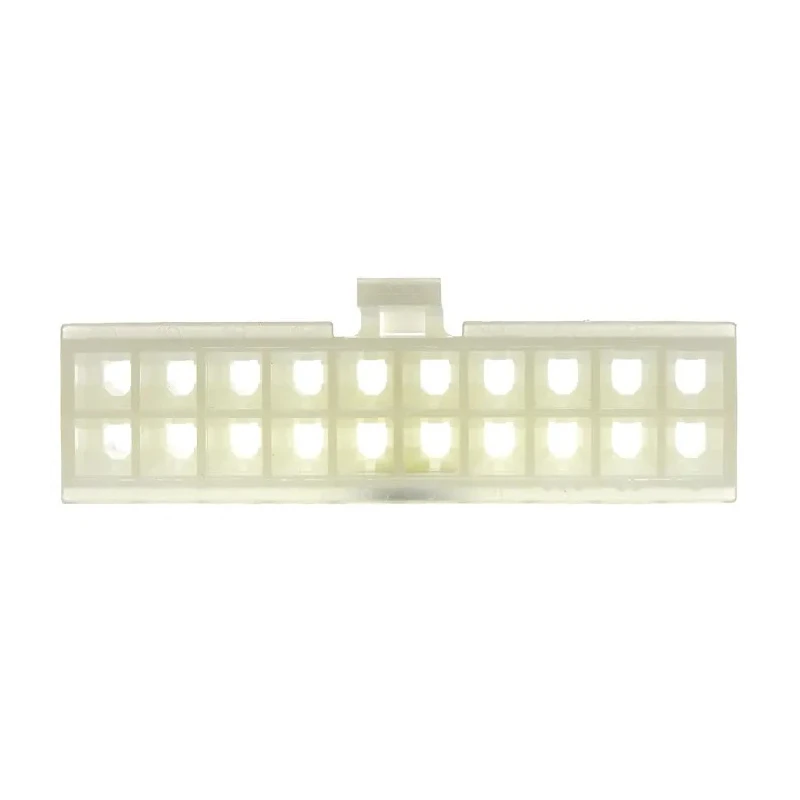

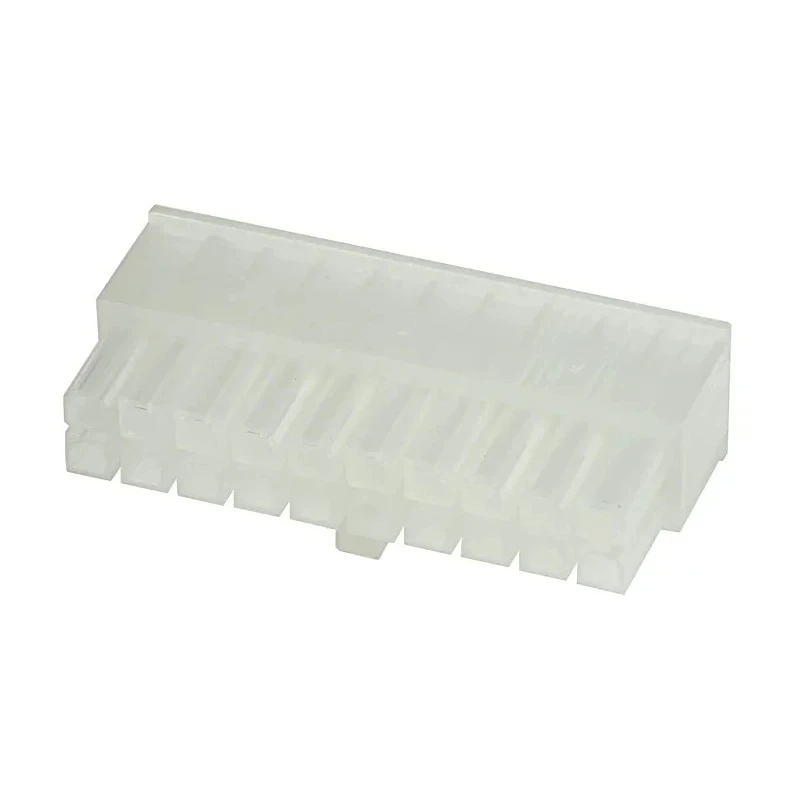

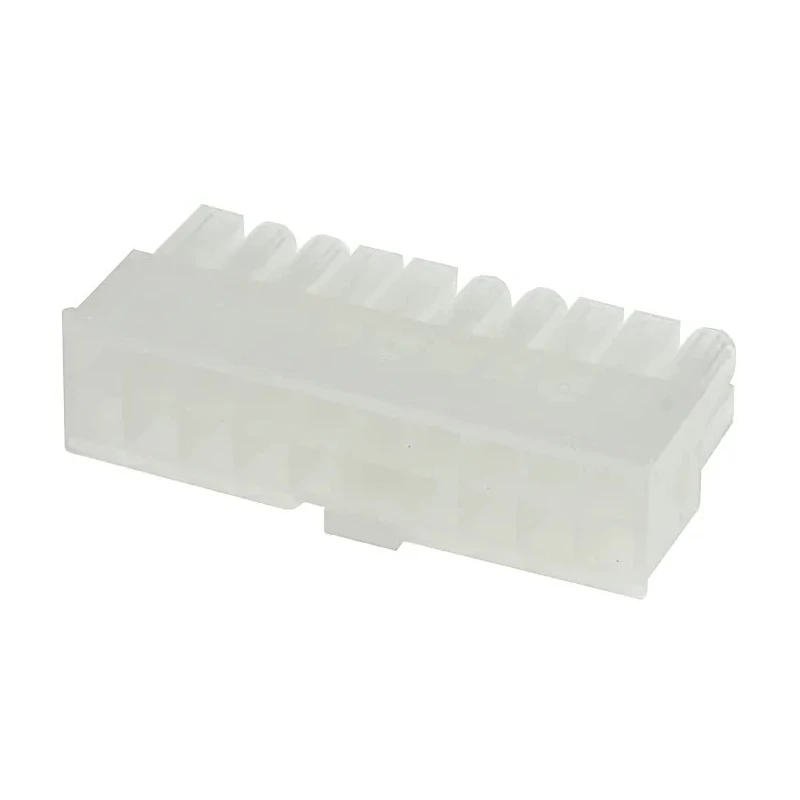

Molex Mini-Fit Female Connector Housing 4.2 mm Pitch 20 Way 2 Row Straight Nylon Housing 39-01-2200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 43.2mm |
| Width | 19.6mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Mini-Fit |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | 45750 Mini-Fit Plus HCS Crimp Terminals, 5556 Mini-Fit Female Crimp Terminals |
| Number of Contacts | 20 |
| Connector Gender | Female |
Key Features
- Features 20 contacts arranged in two rows for compact connections.
- Constructed with a nylon housing providing excellent electrical insulation.
- Designed for easy cable mounting offering flexible installation.
- Supports operating temperatures up to +125°C suitable for harsh industrial environments.
- Provides positive locking mechanism and audible click for secure mating and to prevent accidental disconnection.
- Supports up to 13A of current per circuit to accommodate high current needs.
- Fully isolated terminals protect against debris and mishandling damage.
- Compatible with Mini-Fit Plus HCS and Mini-Fit Female Crimp Terminals.
Product Description
Molex 39-01-2200 Mini-Fit Female Connector Housing is a 20 Way, 2 Row straight connector housing with a 4.2 mm pitch designed for cable mounting applications. The nylon housing ensures excellent electrical insulation and durability under demanding industrial conditions.
This connector is engineered to handle up to 13 amperes of current per circuit, making it suitable for high current power connector applications typically found in computer systems, electronic devices, and industrial equipment. Its positive locking mechanism ensures reliable and secure mating connections with an audible click confirming proper engagement, preventing accidental disconnections caused by shock or vibration.
The fully isolated terminals provide protection from debris and mishandling, increasing reliability and lifespan of the connector assembly. It is compatible with standard Mini-Fit and Mini-Fit Plus crimp terminals, allowing flexible use in wire to wire or wire to board applications.
The connector housing operates reliably within temperatures up to +125°C, making it fit for tough industrial environments. 20 contacts arranged in two rows allow for compact system designs. Durable nylon housing for excellent electrical insulation and mechanical protection.
Positive locking with audible click to ensure secure mating and prevent vibration-induced unmating. Supports currents up to 13A per circuit for high current connectivity. Fully isolated terminals protect against contamination and mechanical damage.
Cable mount design provides versatile installation options. Compatible with Mini-Fit Plus and Mini-Fit Female crimp terminals. Suitable for connection of cables to PCBs in electronics and industrial applications. This connector is ideally applied in industrial, electronic, and computer systems where reliable power connections and robust mechanical integrity are critical.
Explore more Molex Connector Housings and electronic components on EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Molex Mini-Fit Female Connector Housing is 4.2 mm.
This connector housing features 20 contacts arranged in two rows.
It supports up to 13A of current per circuit, making it suitable for high current applications.
The housing is constructed from nylon, providing excellent electrical insulation.
The dimensions of the connector housing are 43.2 mm in length and 19.6 mm in width.
This model is designed for cable mounting, offering flexible installation options.
It operates reliably within temperatures up to +125°C, suitable for harsh industrial environments.
It is compatible with 45750 Mini-Fit Plus HCS Crimp Terminals and 5556 Mini-Fit Female Crimp Terminals.
It includes a positive locking mechanism with an audible click to ensure secure mating and prevent accidental disconnection.
This connector is suitable for applications in industrial, electronic, and computer systems where reliable power connections are critical.
The orientation of this connector housing is straight.
The country of origin for this connector housing is China.
