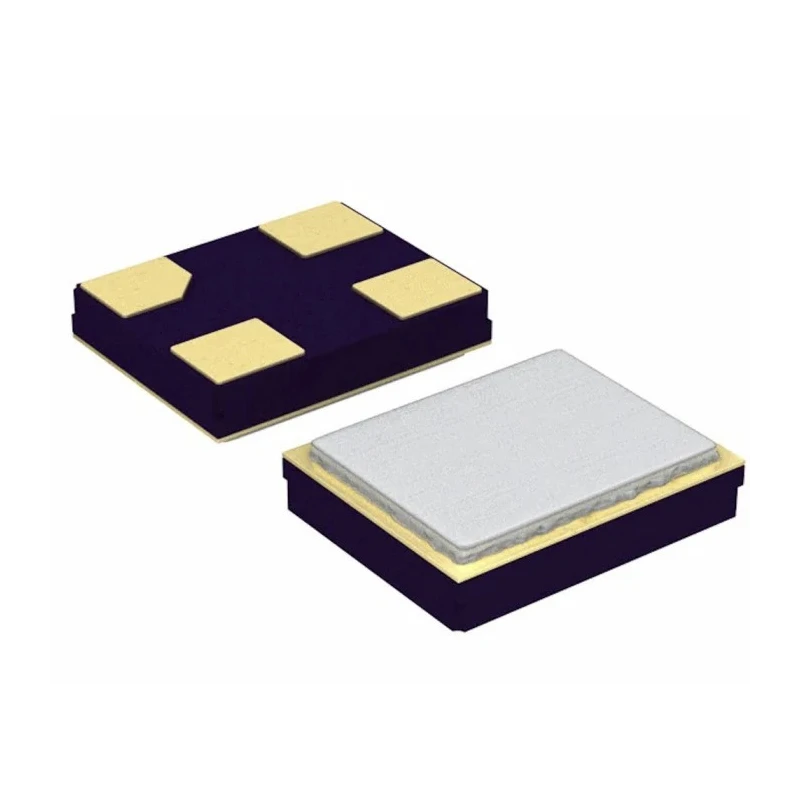

Abracon 20 MHz Crystal ±20 ppm Surface Mount 0.59 mm Height 2 mm Length 1.6 mm Width ABM11-20.000MHZ-D2X-T3

Free Delivery in India | Lowest Global Shipping Charges

Abracon 20 MHz Crystal ±20 ppm Surface Mount 0.59 mm Height 2 mm Length 1.6 mm Width ABM11-20.000MHZ-D2X-T3

Name: Abracon 20 MHz Crystal ±20 ppm Surface Mount 0.59 mm Height 2 mm Length 1.6 mm Width ABM11-20.000MHZ-D2X-T3
Brand: Abracon
SKU: 150713
Price: 1.03 USD
Availability: InStock



Category Crystal Units Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.59mm
Length	2mm
Model	ABM11-20.000MHZ-D2X-T3
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	ABM11
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	REACH, RoHS
Standard Frequency	20MHz
Load Capacitance	10pF
Series Resistance	120Ω

Key Features

Standard frequency of 20 MHz for accurate signal generation.
Surface mount type with compact dimensions of 2 mm length, 1.6 mm width, and 0.59 mm height.
Load capacitance rating of 10 pF ensuring stable oscillation.
Series resistance maximum at 120 Ω to reduce signal attenuation.
Operating temperature range from -40°C to 85°C for broad application environments.
Packaged in Tape & Reel suitable for automated PCB assembly.
Complies with REACH and RoHS environmental standards.
Ideal for high density applications such as cellular telephones, pagers, communication devices, test equipment, PCMCIA, and wireless applications.

Product Description

Abracon ABM11-20.000MHZ-D2X-T3 is a 20 MHz crystal unit designed for precision frequency control in electronic circuits. This ceramic base surface mount device features a sealed ceramic package with a metal lid that provides high precision and enhanced reliability under demanding conditions.

The crystal has a standard frequency of 20 MHz with a frequency tolerance and frequency stability rated at ±20 ppm. It supports a load capacitance of 10 pF and a series resistance of up to 120 Ω. The dimensions of 2 mm length, 1.6 mm width, and 0.59 mm height make it suitable for compact electronics.

It operates over a wide temperature range from -40°C to 85°C, making it reliable in various industrial and commercial environments. This crystal is supplied in Tape & Reel packaging, facilitating high volume surface mount assembly processes.

Applications include high density devices such as cellular telephones, pagers, communication systems, test equipment, PCMCIA cards, and wireless applications requiring stable and accurate timing signals.

Standard frequency of 20 MHz for accurate signal generation. Compact Surface Mount design with ultra-miniature ceramic package. Frequency tolerance and stability within ±20 ppm ensuring reliable performance. Load capacitance rating of 10 pF for oscillator stability.

Maximum series resistance of 120 Ω to minimize signal loss. Wide operating temperature range from -40°C to 85°C guarantees durability. Environmental compliance with REACH and RoHS standards supports eco-friendly manufacturing.

Packaged in Tape & Reel for automated assembly.

This crystal is ideal for use in industrial, telecommunications, and consumer electronics requiring high precision frequency sources. It is categorized under crystal units for effective frequency control and signal generation tasks.
