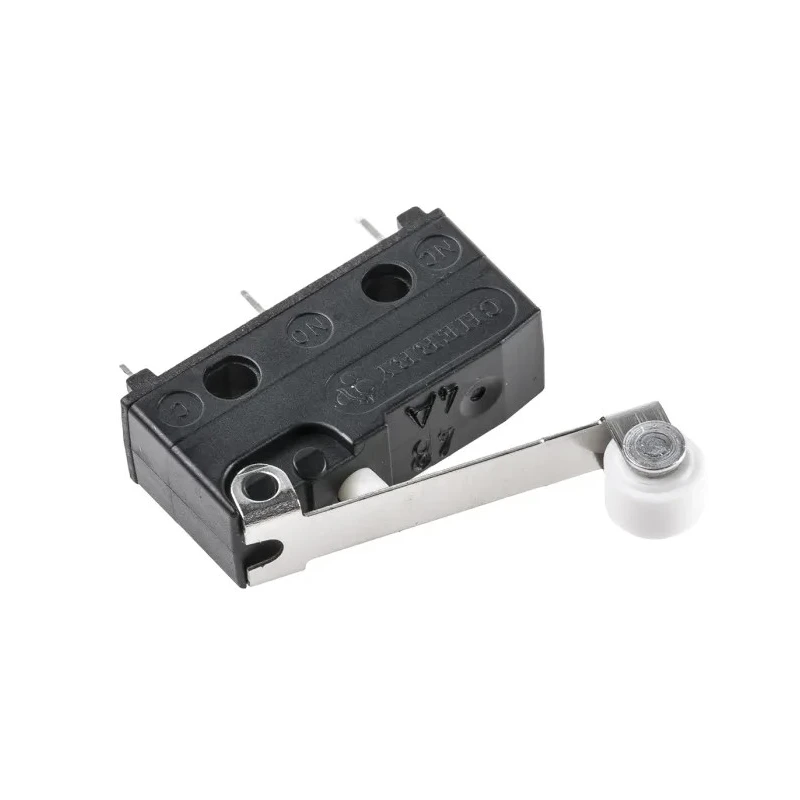

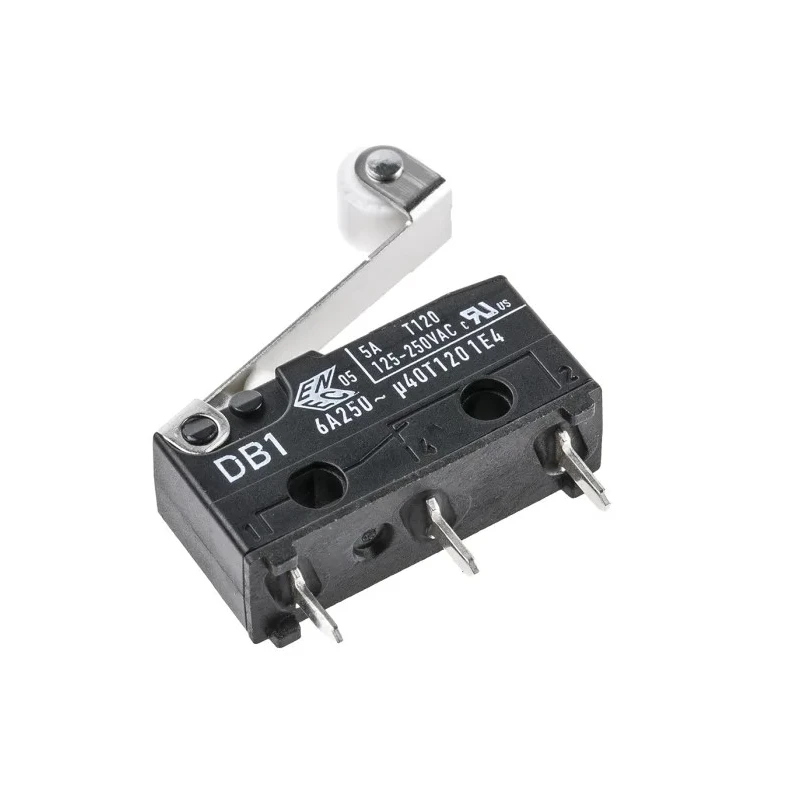

ZF Roller Lever Micro Switch Through Hole Terminal 6A 250V AC SPDT IP50 DB1C-C1RC

Free Delivery in India | Lowest Global Shipping Charges

ZF Roller Lever Micro Switch Through Hole Terminal 6A 250V AC SPDT IP50 DB1C-C1RC



Category Micro Switches Brand ZF Condition New

Specifications

Country of Origin	India
Brand	ZF
Model	DB1C-C1RC
IP Rating	IP50
Housing Material	Polyethylene Terephthalate, Polyamide
Series	DB1
Maximum Operating Temperature	120°C
Contact Configuration	SPDT
Actuator Type	Roller Lever
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Standards/Approvals	RoHS
Switch Contact Current	6A
Operating Force	0.54N
Mechanical Life	15000000Operations
Contact AC Voltage	250V ac
Microswitch Type	DB Subminiature

Key Features

Features a durable roller lever actuator for reliable mechanical operation.
Through hole terminal type ensures secure PCB mounting.
IP50 rated housing for protection against dust ingress.
Constructed using polyethylene terephthalate and polyamide materials for robust insulation.
Designed for high mechanical life of up to 15 million operations.
Operates within a wide temperature range from -40°C to 120°C.
Low operating force of 0.54N for efficient switching.
Complies with RoHS standards ensuring environmental safety.

Product Description

ZF DB1C-C1RC Roller Lever Micro Switch is a DB series subminiature micro switch designed for SPDT contact configuration with a contact current rating of 6A at 250V AC. The switch utilizes a roller lever actuator with a through hole terminal type, suitable for reliable mechanical switching applications where precise actuation is needed.

The housing material comprises polyethylene terephthalate and polyamide providing durable insulation and mechanical strength. The IP50 rated enclosure offers protection against dust ingress, suitable for industrial environments where moderate protection is required.

This micro switch operates over a temperature range from -40°C to 120°C, supporting various applications in electronics and industrial automation. Its low operating force of 0.54N ensures efficient and responsive actuation, contributing to its long mechanical life of approximately 15 million operations, enhancing reliability and reducing maintenance needs.

Compliant with RoHS standards, the DB1C-C1RC model integrates safety and environmental compliance. It's ideal for use in control systems, automation equipment, and electrical devices requiring dependable switch operation with precise actuation characteristics.

Durable roller lever actuator for reliable switching. Through hole terminals for secure PCB mounting. Housing made of polyethylene terephthalate and polyamide. IP50 protection level against dust ingress. Long mechanical life up to 15 million operations.

Wide operating temperature range from -40°C to 120°C. Low operating force of 0.54N. Compliant with RoHS environmental standards.

This micro switch fits applications in electronics manufacturing, industrial automation, and electrical systems requiring consistent and precise switching performance. Browse the Micro Switch category on EnvMart for related high-quality components from top manufacturers including ZF.
