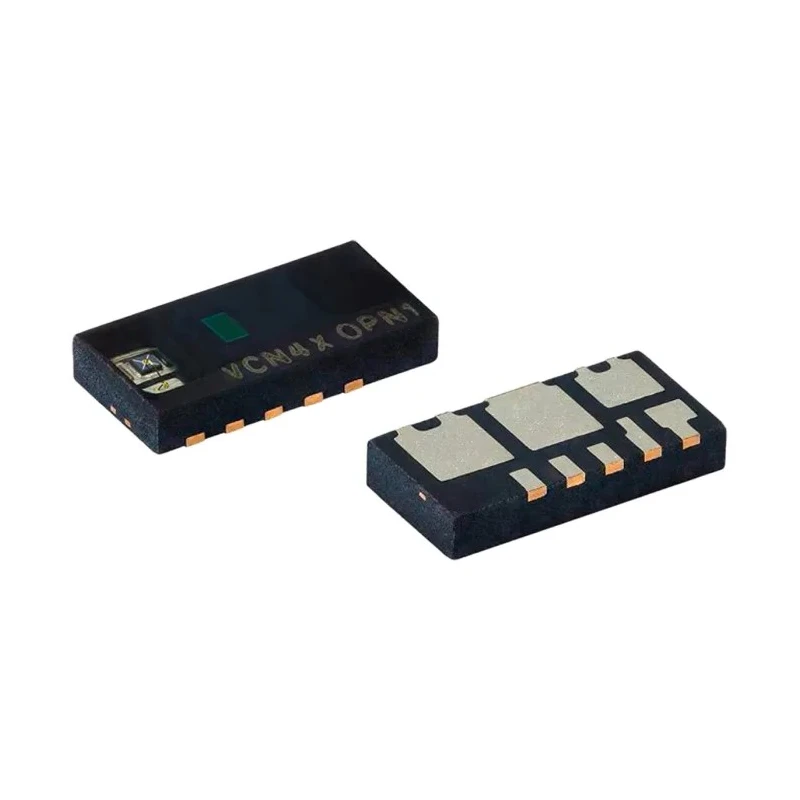

Vishay Proximity Light Sensor Surface Mount 200 mm Sensing Distance 2.5V-3.6V VCNL4020X01-GS08

Free Delivery in India | Lowest Global Shipping Charges

Vishay Proximity Light Sensor Surface Mount 200 mm Sensing Distance 2.5V-3.6V VCNL4020X01-GS08

Name: Vishay Proximity Light Sensor Surface Mount 200 mm Sensing Distance 2.5V-3.6V VCNL4020X01-GS08
Brand: Vishay
SKU: 189467
Price: 4.28 USD
Availability: InStock



Category Proximity Sensor IC Brand Vishay Condition New

Specifications

Country of Origin	Philippines
Brand	Vishay
Height	830μm
Length	4.9mm
Model	VCNL4020X01-GS08
Width	2.4mm
Mount Type	Surface
Output type	Open Drain, Digital
Sensing Distance	200mm
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Maximum Switching Frequency	3.4MHz
Pin Count	10
Automotive Standard	AEC-Q101
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2.5V

Key Features

Operates within a voltage range of 2.5 V to 3.6 V.
Provides a maximum switching frequency of 3.4 MHz for rapid detection.
Features an open drain digital output type suitable for various circuit designs.
Equipped with a surface mount package and 10-pin configuration for compact installation.
Supports automotive applications with AEC-Q101 qualification for reliability.
Designed to function effectively across a temperature range of -40°C to 105°C.
Compact sensor dimensions of 4.9 mm length, 2.4 mm width, and 830 μm height.
Programmable LED drive current from 10 mA to 200 mA enhances flexibility.

Product Description

Vishay VCNL4020X01-GS08 is a fully integrated proximity and ambient light sensor that includes an infrared emitter within a surface mount package. It has a sensing distance of up to 200 mm and supports a supply voltage range from 2.5 V to 3.6 V. The sensor's output is an open drain digital type, enabling easy interfacing with digital circuits.

This sensor features a 10-pin layout and compact dimensions measuring 4.9 mm in length, 2.4 mm in width, and 830 µm in height, making it suitable for space-constrained electronics applications. Notably, VCNL4020X01-GS08 is automotive qualified under the AEC-Q101 standard, ensuring robust operation in vehicle occupant presence detection and other automotive sensor applications.

Operating temperature ranges from -40°C to 105°C provide reliability in diverse environmental conditions. With a maximum switching frequency of 3.4 MHz, this sensor allows rapid proximity measurements. Additionally, its programmable LED drive current range (10 mA to 200 mA) offers customization for various illumination requirements.

The sensor uses an I²C serial communication interface with a 16-bit effective resolution, facilitating precise ambient light and proximity data readings. Close-to-human-eye sensitivity in light sensing enhances performance for ambient light detection applications.

Operates within voltage limits of 2.5 V to 3.6 V. Maximum switching frequency of 3.4 MHz enables fast sensing. Package mounts on surface mounts with 10 pins. Automotive compliant with AEC-Q101 for vehicle safety systems.

Compact dimensions support integration in small electronic devices. Temperature range suitable for harsh operating environments. Programmable LED drive current for flexible IR emitter control. I²C interface provides 16-bit resolution for data accuracy.

Designed for proximity and ambient light sensing applications.

This sensor is ideal for industrial, automotive, consumer electronics, and laboratory instrumentation requiring precise proximity and ambient light detection. Its automotive certification highlights its suitability for safety-critical applications, including occupant detection systems in vehicles.
