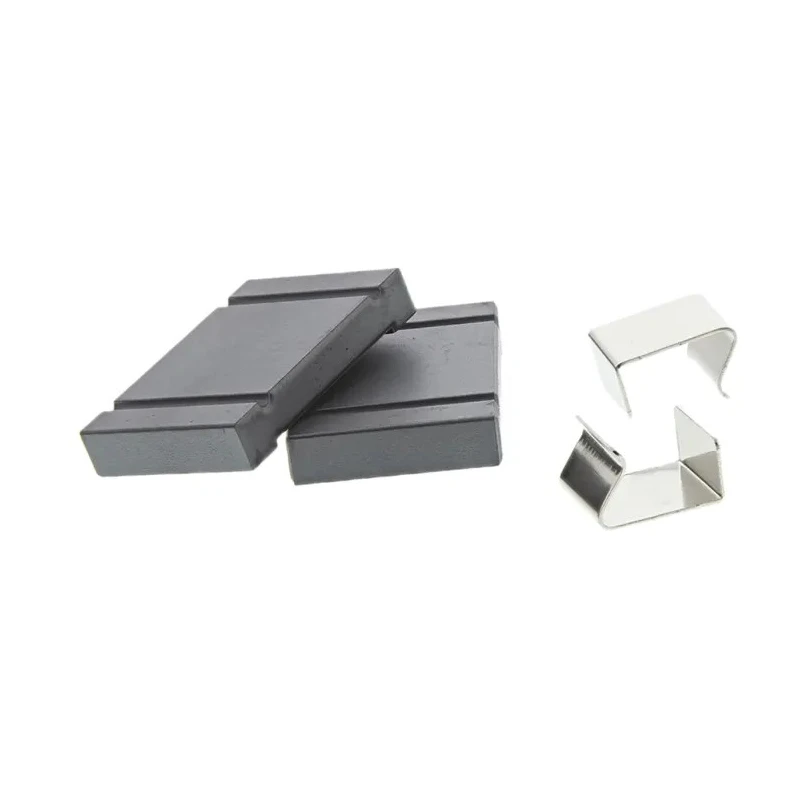

Essentra Openable Flat Cable Ferrite for 20 Max Wires Split Core 0.8 mm Internal Height 26.6 mm Internal Width RFP-1-20-25-A5
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Essentra |
| Material | A5 |
| Model | RFP-1-20-25-A5 |
| Sub Type | Split Core |
| Internal Width | 26.6mm |
| Internal Height | 0.8mm |
| External Width | 38mm |
| External Depth | 25.4mm |
| External Height | 6.35mm |
| Maximum Frequency | 100MHz |
| Impedance at 100 MHz | 175Ω |
| Minimum Frequency | 25MHz |
| Maximum Number of Wires | 20 |
| TDK Openable, Diameter 26 mm Ferrite Sleeve, Apertures | 1 11.5 mm 33.5 mm, For EMC AbsorptionBrand: TDK |
Key Features
- Suitable for ribbon cables with up to 20 maximum wires.
- Features a split core for easy attachment after cable assembly.
- Internal dimensions of 26.6 mm width and 0.8 mm height.
- Impedance of 175 ohms at 100 MHz frequency.
- Made of A5 ferrite material for high EMI attenuation.
- Supports frequency range from 25 MHz to 100 MHz.

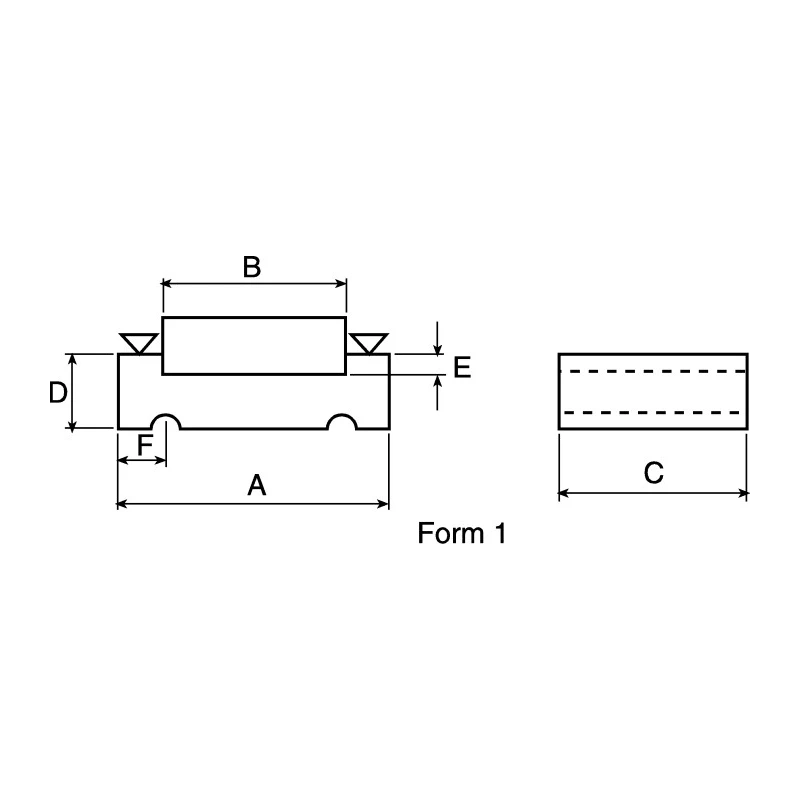

- External dimensions include 38 mm width, 25.4 mm depth, and 6.35 mm height.
- Designed without gapping for consistent attenuation.
Product Description
Essentra RFP-1-20-25-A5 openable flat cable ferrite is engineered for effective electromagnetic interference (EMI) emission attenuation in data and ribbon cables, specifically accommodating up to 20 maximum wires. Its split core design with a metal clip ensures simple and reliable attachment to cables after assembly or on cables already installed with plug connectors.
The ferrite is constructed from high-quality A5 material, optimized for use in office, digital, and industrial electronic devices. It operates effectively within the frequency range from 25 MHz minimum to 100 MHz maximum, with an impedance of 175 ohms at 100 MHz, providing robust EMI filtration to improve signal integrity.
With internal dimensions of 26.6 mm width and 0.8 mm height, and external dimensions measuring 38 mm in width, 25.4 mm in depth, and 6.35 mm in height, this ferrite sleeve is designed for compact integration without compromising electromagnetic absorption performance. The split core and openable feature simplify installation and enable retrofitting without cable disassembly.
Its application scope includes industrial electronics, office equipment, and consumer digital devices where EMI reduction on flat cables is critical for compliance and performance. The device’s build ensures durability and stability without gapping, enhancing consistent attenuation across the operating frequency spectrum.
Suitable for ribbon cables with up to 20 maximum wires. Features a split core for after-assembly installation. High impedance of 175 ohms at 100 MHz for EMI attenuation. Constructed with A5 ferrite material. Operates effectively from 25 MHz to 100 MHz frequencies.
Compact external size facilitating easy integration. Openable split core eases retrofit installation without cable removal. No gapping to maintain consistent electromagnetic absorption.
This product supports industrial, electronic manufacturing, digital communication devices, and office equipment applications, ensuring reduction of electromagnetic emission to meet regulatory standards. Explore more options in the Ferrite Sleeve category for advanced electromagnetic compatibility solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ferrite sleeve can accommodate up to 20 maximum wires.
The internal dimensions of this model are 26.6 mm in width and 0.8 mm in height.
The impedance at 100 MHz is 175 ohms.
It operates effectively within a frequency range of 25 MHz to 100 MHz.
The external dimensions are 38 mm in width, 25.4 mm in depth, and 6.35 mm in height.
It is constructed from A5 ferrite material, optimized for EMI attenuation.
The split core design allows for easy attachment after cable assembly or retrofitting on installed cables without disassembly.
This model is suitable for use in industrial electronics, office equipment, and consumer digital devices where EMI reduction is critical.
The design is without gapping, which helps maintain consistent electromagnetic absorption performance.
The country of origin for this ferrite sleeve is Taiwan.
The external depth of this model is 25.4 mm.
The impedance rating of 175 ohms at 100 MHz indicates its effectiveness in filtering EMI, which is crucial for maintaining signal integrity.
