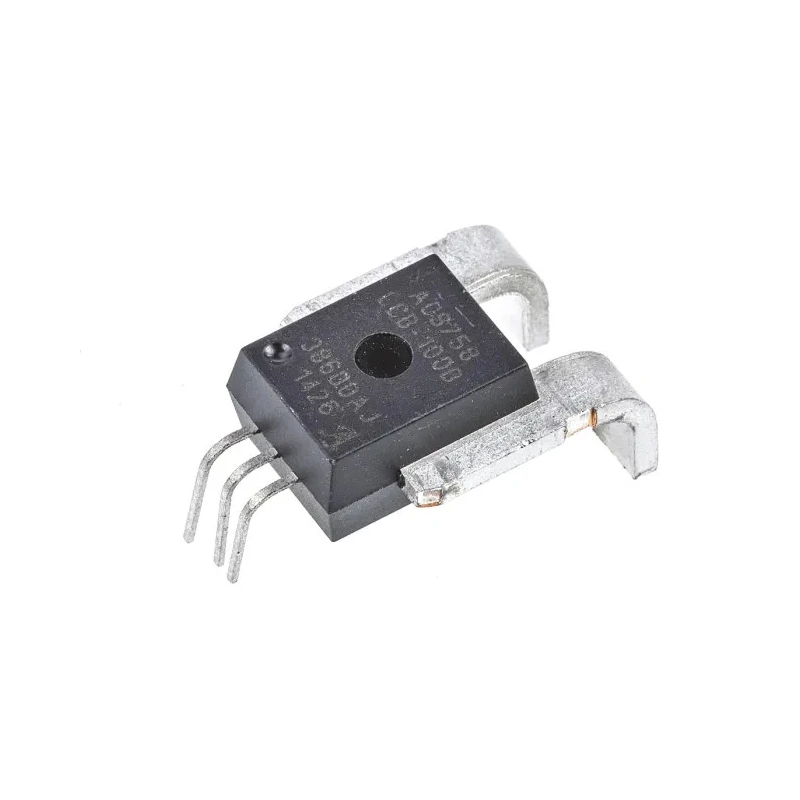

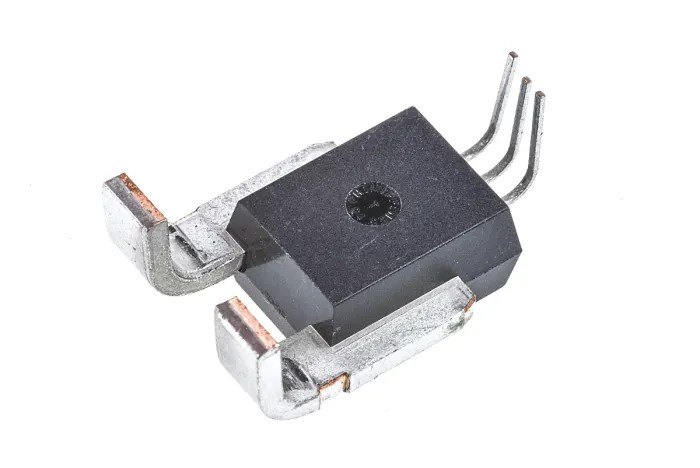

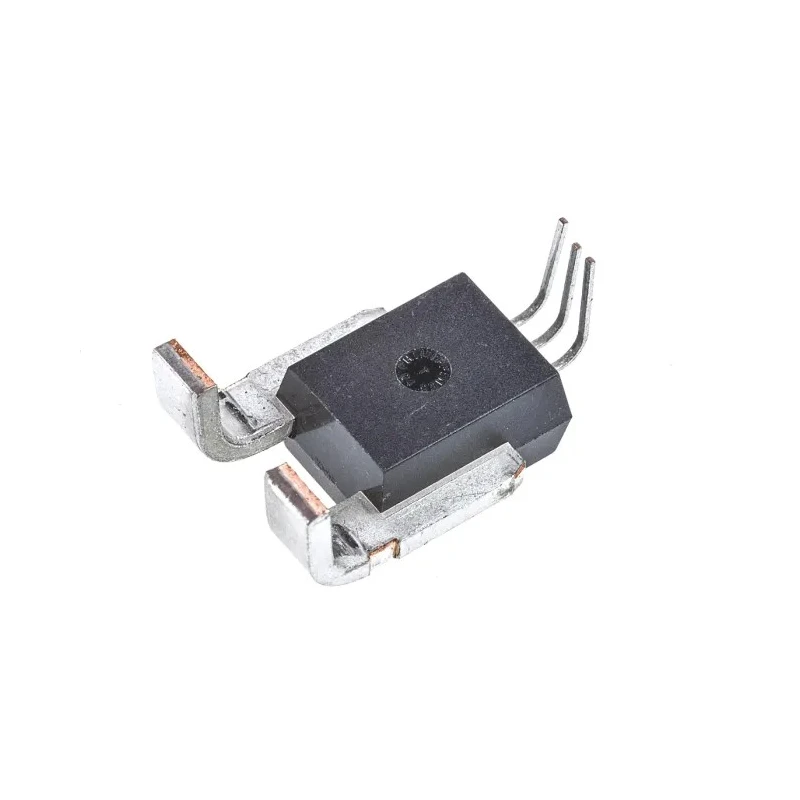

Allegro Microsystems Through Hole Hall Effect Sensor 3 V to 5.5 V, 20mV/A Sensitivity, 5-Pin ACS758LCB-100B-PFF-T

Allegro Microsystems ACS758LCB-100B-PFF-T is a high-performance through hole Hall Effect sensor designed for precise current sensing in various industrial and automotive environments. It operates with an analogue Hall Effect technology providing linear magnetic detection within a voltage supply range of 3 V to 5.5 V. The sensor is packaged in a CB PFF 5-pin package, ensuring easy integration into PCB designs.

The device features a sensitivity of 20mV/A enabling accurate current measurement with minimal conductor resistance of 100 micro-ohms, which ensures low power dissipation during operation. It complies with AEC-Q100 automotive standards, making it highly reliable for harsh operational environments.

Operating temperature range from -40°C to 150°C supports operation in extreme conditions. The fast response time of 4 microseconds is ideal for dynamic applications requiring real-time current monitoring. Its compact dimensions of 10 mm in length, 13 mm in width, and 7 mm in height make it suitable for space-constrained installations.

This sensor is extensively used in automotive systems, industrial control, laboratory equipment, HVAC systems, and power management applications where precise current measurement is critical.

Hall Effect Sensor with linear magnetic sensing technology. Voltage supply: 3 V to 5.5 V suitable for varied electronics. Low supply current of 10 mA ensures energy efficiency. AEC-Q100 automotive qualification for enhanced reliability.

Fast 4μs response time for precision current detection. Compact through hole 5-pin CB PFF package. Wide operating temperature range from -40°C to 150°C. Typical conductor resistance 100 μΩ minimizes losses. Ideal for automotive, industrial, and laboratory current measurements.
