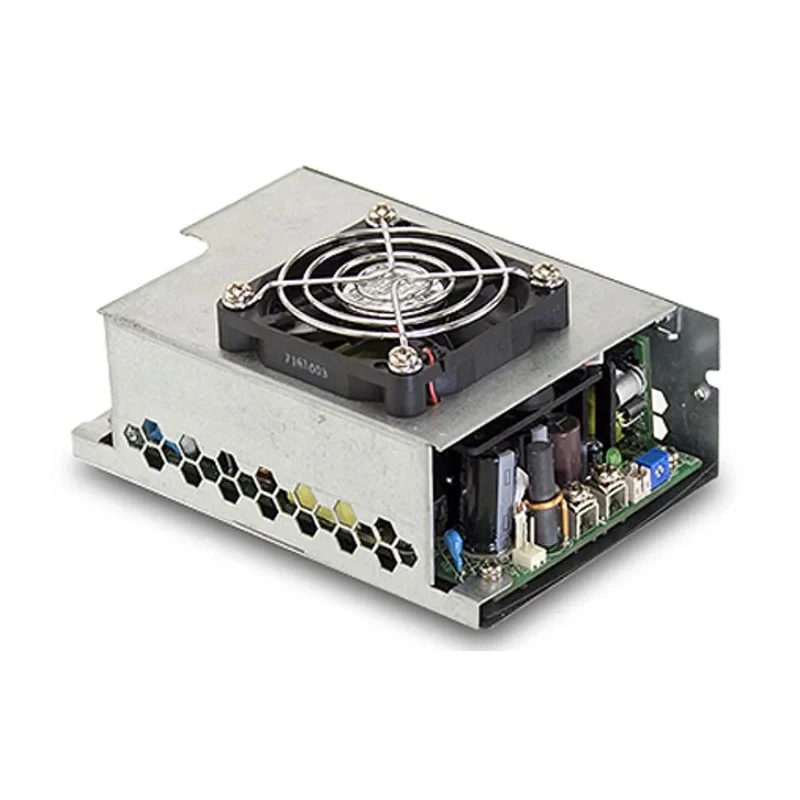

MEAN WELL 252W Switching Power Supply 24V DC, 16.7A Output, Chassis Mount, Model RPS-400-24-TF

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL 252W Switching Power Supply 24V DC, 16.7A Output, Chassis Mount, Model RPS-400-24-TF

Name: MEAN WELL 252W Switching Power Supply 24V DC, 16.7A Output, Chassis Mount, Model RPS-400-24-TF
Brand: MEAN WELL
SKU: 195518



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	252W
Efficiency	93%
Length	130mm
Model	RPS-400-24-TF
Depth	66.5mm
Gross Weight	580g
Width	66.5mm
Mount Type	Chassis
Series	RPS-400-24
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Maximum Output Voltage	24V dc
SMPS Output Current	16.7A
Minimum Input Voltage	80V ac

Key Features

High efficiency up to 93 percent for efficient power use.
Universal AC input voltage range from 80V AC to 370V DC.
Compact chassis mount design with dimensions 130 x 66.5 x 66.5 mm.
Wide operating temperature from -30°C to 70°C for reliable performance.
Built-in protections against over voltage, overload, short circuit, and over temperature.
Meets international medical safety standards with 2 x MOPP isolation.
Suitable for Class I and Class II designs with low leakage current.
Remote sense and power on LED indicator for operational feedback.

Product Description

MEAN WELL RPS-400-24-TF is a 252W switching power supply designed for medical and industrial use. It features a 24V DC output voltage and 16.7A output current, mounted in a compact chassis form factor measuring 130mm length, 66.5mm width, and 66.5mm depth. It operates over a wide temperature range of -30°C to 70°C and supports a universal AC input ranging from 80V AC to 370V DC.

This power supply has high efficiency of 93% and is approved under various international standards including IS 13252(Part1)/IEC 60950-1, UL 62368-1, TUV EN60601-1 among others, ensuring certified medical safety with two MOPP barriers. It provides reliable operation with multiple safeguards against short circuit, overload, over voltage, and over temperature failure modes.

The device supports both Class I (with FG) and Class II (no FG) grounding designs, making it suitable for BF rated patient-contact medical equipment. It includes features such as low leakage current, built-in power factor correction, remote sense function, and LED indicator for power status. Cooling is managed by free air convection for 250W and fan forced air at 25CFM for 400W configurations.

Typical applications include oral irrigators, hemodialysis machines, medical monitors, sleep apnea devices, various pumps, and electric beds used in medical environments. Its robust safety approvals and compact design make it ideal for industrial, laboratory, and medical device manufacturing applications.

High efficiency and universal input voltage. Medical safety approved with 2 x MOPP isolation. Multiple protection features for safe operation. Compact chassis mount suitable for equipment integration. Supports patient contact equipment with low leakage current.

Remote sense and LED status indicator. Explore MEAN WELL Switching Power Supplies on EnvMart for reliable and certified power solutions suited to diverse industrial and medical applications.
