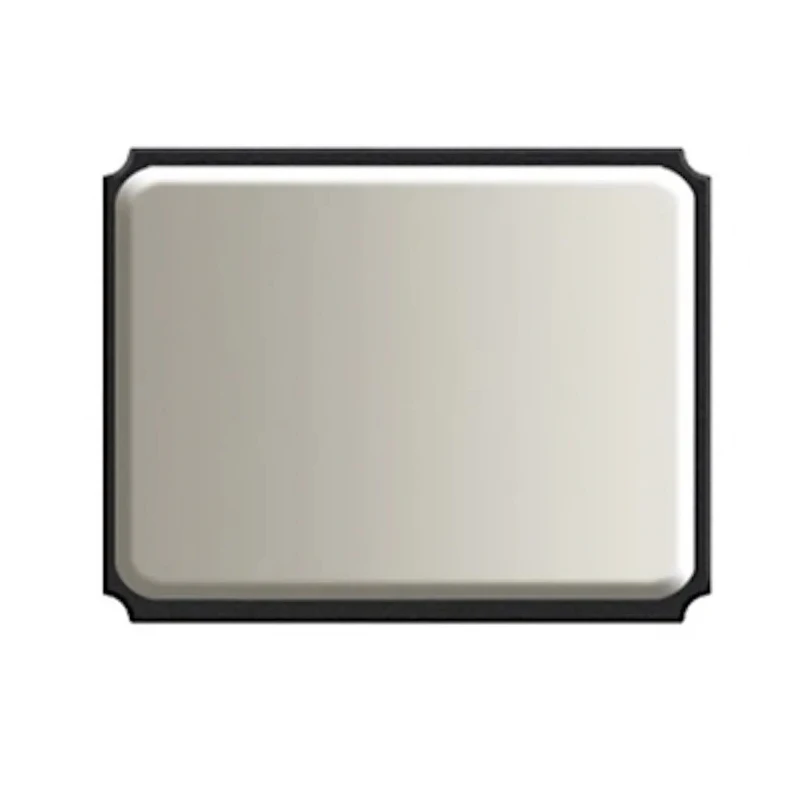

Abracon 25 MHz Crystal ±20 ppm Surface Mount 0.7 mm Height 2.5 mm Length 2 mm Width ABM10-25.000MHZ-D30-T3

Free Delivery in India | Lowest Global Shipping Charges

Abracon 25 MHz Crystal ±20 ppm Surface Mount 0.7 mm Height 2.5 mm Length 2 mm Width ABM10-25.000MHZ-D30-T3

Name: Abracon 25 MHz Crystal ±20 ppm Surface Mount 0.7 mm Height 2.5 mm Length 2 mm Width ABM10-25.000MHZ-D30-T3
Brand: Abracon
SKU: 150707
Price: 1.16 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	China
Brand	Abracon
Height	0.7mm
Length	2.5mm
Model	ABM10
Packaging	Tape & Reel
Width	2mm
Mount Type	Surface
Series	ABM10
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	REACH, RoHS
Standard Frequency	25MHz
Load Capacitance	10pF
Series Resistance	100kΩ
Abracon 25 MHz Crystal ±20 ppm Surface Mount 0.7 mm 2.5 mm 2mmBrand	Abracon

Key Features

The crystal features a ceramic base surface mount package measuring 2.5 mm in length, 2 mm in width, and 0.7 mm in height.
It offers a frequency stability of ±30 ppm suitable for critical timing applications.
Operating temperature range spans from -40°C to 85°C for robust performance in diverse environments.
The series resistance is rated at 100 kΩ, ensuring high reliability in circuits.
Packaging is provided in tape and reel format facilitating automated assembly processes.
Compliance with RoHS and REACH standards supports environmental and health safety regulations.
This crystal is applicable in Bluetooth devices, wireless communications, computers, microprocessors, portable radios, and test equipment.

Product Description

Abracon ABM10-25.000MHZ-D30-T3 25 MHz Crystal Surface Mount device is designed with a sealed ceramic package for ultra-miniature size and precise frequency control, featuring ±20 ppm tolerance and 10 pF load capacitance. The compact dimensions of 2.5 mm length, 2 mm width, and 0.7 mm height make it ideal for high-density electronic applications.

It provides stable frequency performance over a wide temperature range from -40°C to 85°C, ensuring reliable operation in industrial, communication, and computing equipment environments. The series resistance of 100 kΩ ensures signal integrity and efficiency.

Component packaging in tape & reel facilitates streamlined pick-and-place manufacturing processes. Certified for RoHS and REACH compliance, this crystal suits environmental sustainability demands.

Typical applications include Bluetooth technology, wireless communication, microprocessor clock sources, computers, test devices, and portable radios or MP3 players. The product has a ceramic base SMD construction assuring long-term reliability.

Frequency tolerance is ±20 ppm with frequency stability up to ±30 ppm for precision timing. Operating temperature supports -40°C minimum to 85°C maximum conditions. Surface mount package type suits automated assembly lines.

Complies with industry standards REACH and RoHS ensuring regulatory conformance. Includes tape & reel packaging supporting efficient mass production workflows. Applications span multiple domains including communication, computing, and consumer electronics.
