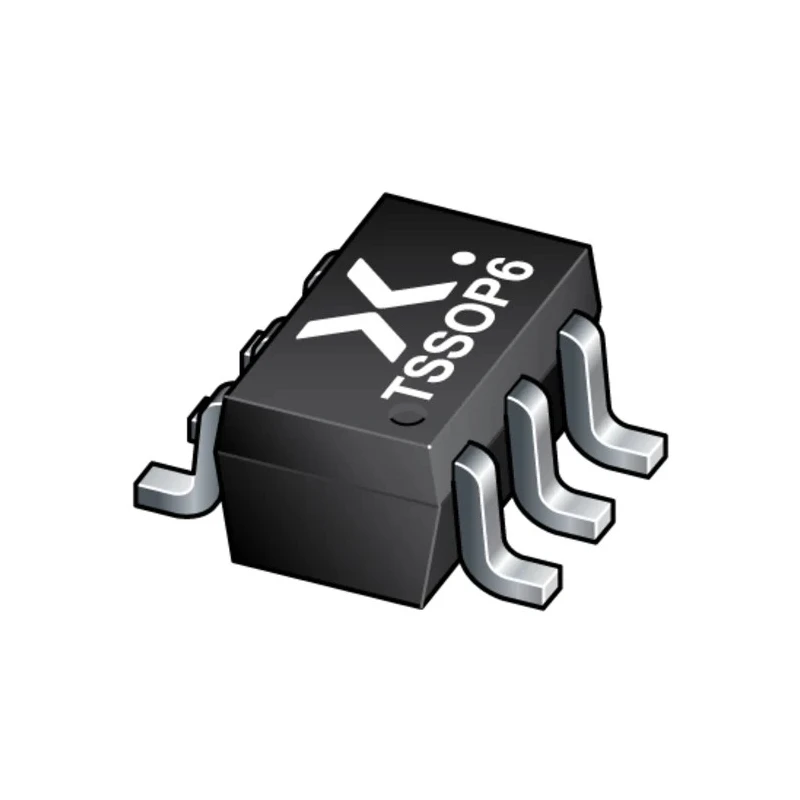

Nexperia Low-Power Single Positive Edge Triggered D-Type Flip Flop IC 6-Pin SC-88 Package 1 Element 74LVC1G175GW,125

Nexperia 74LVC1G175GW,125 is a low power, low voltage single positive edge triggered D-type flip flop integrated circuit in a 6-pin SC-88 surface mount package. The device includes one flip flop element with single ended data (D) input, clock (CP) input, and asynchronous active low master reset (MR) input which operates independently from the clock input. Information on the D input is transferred to the Q output upon the low-to-high clock transition, making it ideal for digital logic circuit designs requiring precise timing control.

This IC operates with a supply voltage range from a minimum of 1.65 volts up to a maximum of 5.5 volts, enabling flexible integration into mixed 3.3V and 5V systems. It supports high-speed clock frequencies up to 200 MHz and features a maximum propagation delay time of 5.5 nanoseconds when loaded with specified capacitance, facilitating fast and accurate digital signal processing.

The device's positive edge clock trigger and non-inverting polarity ensures predictable operation in synchronous circuits. It is rated to operate safely at temperatures from -40°C to 125°C, supporting industrial and automotive applications where temperature extremes are encountered.

The compact SC-88 package measures 2.2 mm in length and 1 mm in height, making it suitable for space-constrained printed circuit boards with surface mount technology. The IC is manufactured in Malaysia and does not carry specific industry standards or approvals, but meets general semiconductor quality expectations.

Compact 6-pin SC-88 surface mount package. Supports mixed 3.3V and 5V power supply applications. Asynchronous active LOW master reset for flexible control. High noise immunity and integrated termination resistor options.

Suitable for frequency division and signal delay implementations. Interfaces efficiently between asynchronous and synchronous digital systems. Low propagation delay and high switching speed for digital logic designs. Reliable under extended operating temperature ranges.

Single flip flop per chip architecture with positive edge triggering.

This flip flop IC is widely applicable in industrial, commercial, automation, and electronics development environments where robust logic signal handling is required. Its low voltage and high speed characteristics make it suitable for embedded systems, communication equipment, and timing control circuits. Environmentally friendly design complies with RoHS, facilitating use in global manufacturing standards.
