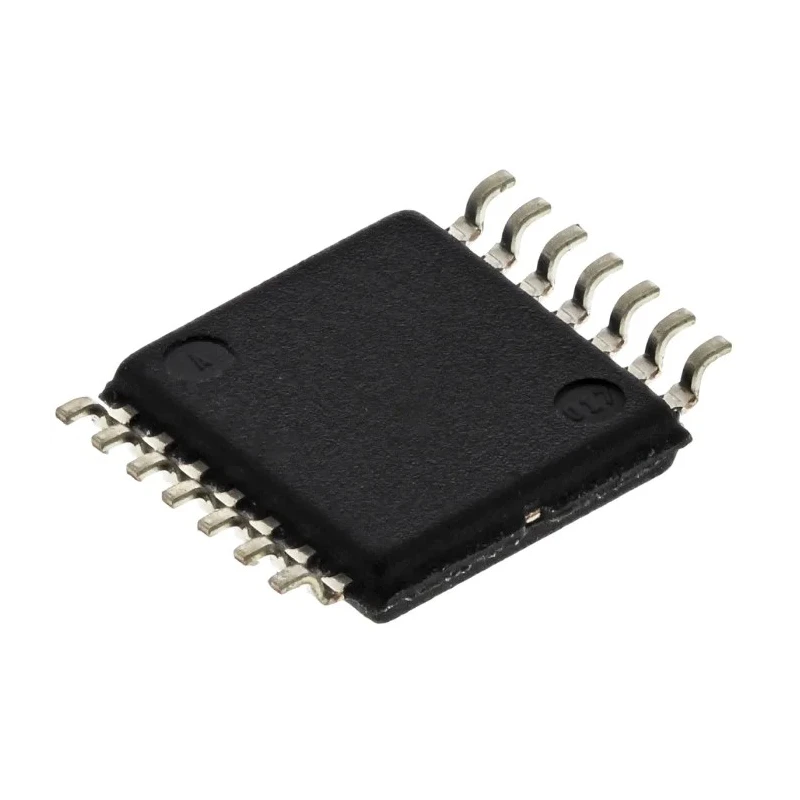

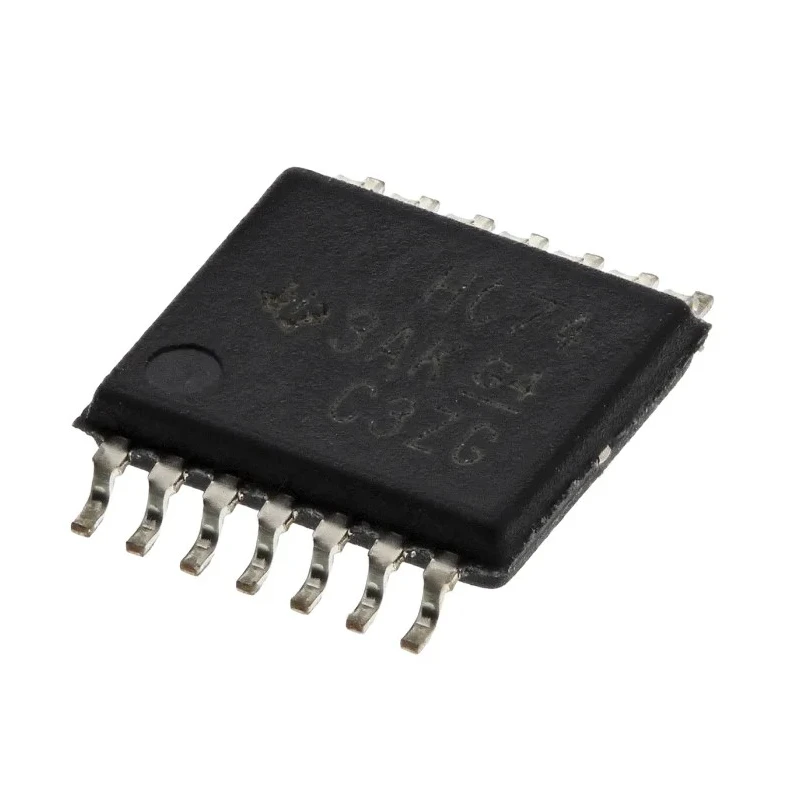

Texas Instruments 2 Flip Flop IC HC, 14-Pin TSSOP, 29MHz Clock Frequency, 2 to 6V Operating Voltage SN74HC74PWR

Texas Instruments SN74HC74PWR is a 2 Flip Flop IC within the 74HC family, designed using high-speed CMOS silicon gate technology that achieves operating speeds comparable to LSTTL devices while maintaining low power consumption. It is configured in a compact 14-Pin TSSOP package optimized for surface mounting on printed circuit boards.

This device operates at a clock frequency of 29 MHz and supports a voltage supply range of 2V to 6V, making it suitable for modern low-voltage electronic systems. The chip contains two D-type flip-flop elements capable of handling both inverting and non-inverting polarity inputs, triggered on the positive edge, providing versatile data storage and transfer functionality.

Each flip-flop features a maximum propagation delay time of 49 nanoseconds, delivering swift response times essential for timing-sensitive industrial, telecommunications, and consumer electronic applications. It operates reliably across a wide temperature range from -40 to 85 degrees Celsius, ensuring stable performance in varied environmental conditions.

The small footprint with a height of 1.15mm and length of 5mm allows integration into compact designs, especially suited for high-density PCB layouts in industrial automation, embedded systems, and instrumentation.

High-speed CMOS logic technology ensures efficient power and performance. Input CMOS and output CMOS compatibility simplifies electronic interfacing. Two D flip-flops per chip support multiple data lines and parallel operations.

Positive edge trigger mechanism ensures accurate timing control. Surface-mount TSSOP package supports automated assembly processes. Wide operating voltage and temperature range accommodate diverse applications. Compact dimensions enable space-saving PCB layouts.

Ideal for industrial, laboratory, and communication system electronics.

This Flip Flop IC from Texas Instruments is an industry-standard component widely used in electronic design for data storage, signal synchronization, and digital logic control. It is a reliable and tested solution for engineers requiring high-speed logic elements in modern electronic circuits.
