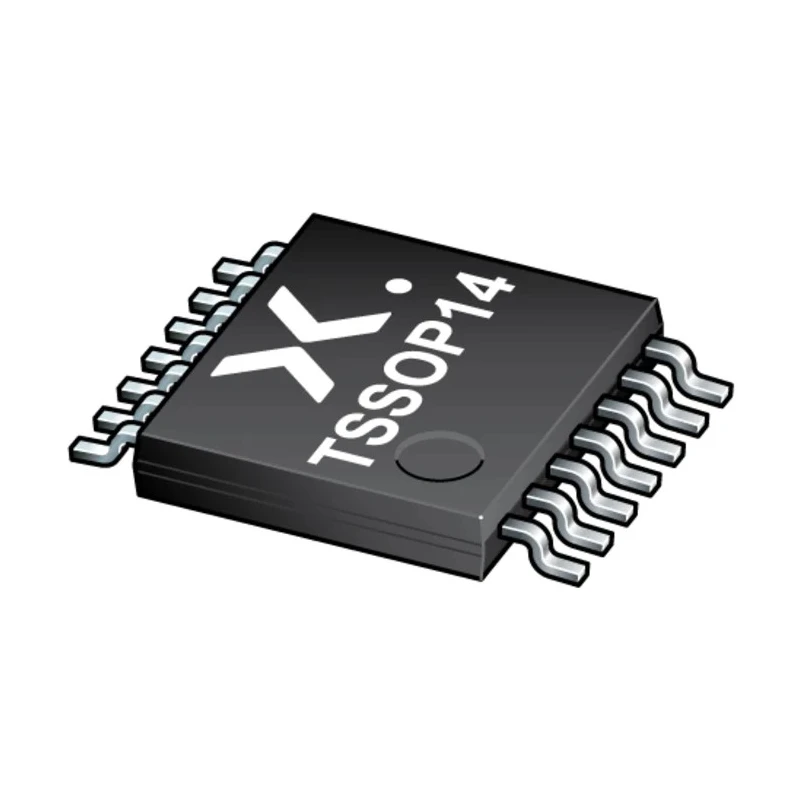

Nexperia Dual Edge Triggered D-Type Flip Flop IC 74LVC74APW,118 14-Pin TSSOP, 1.65V to 3.6V, 120MHz Clock Frequency

The Nexperia 74LVC74APW,118 is a highly reliable dual edge triggered D-type flip flop integrated circuit housed in a 14-pin TSSOP surface mount package. It operates with a supply voltage range from 1.65V to 3.6V, accommodating mixed 5V and 3.3V applications common in modern electronic devices. The device supports a maximum clock frequency of 120MHz, ensuring fast and precise digital signal processing.

This IC contains two independent flip-flops, each with individual data (nD), clock (nCP), set (nSD), and reset (nRD) inputs. The asynchronous active LOW set and reset inputs allow immediate response independent of the clock. Data input is transferred to the output on the LOW-to-HIGH clock transition, enabling edge-triggered synchronization.

Designed with integrated source termination resistors and overvoltage tolerant input options, the 74LVC74APW,118 provides enhanced signal integrity and noise immunity, making it suitable for complex mixed-signal environments. The flow-through pinout eases PCB layout, reducing design complexity in compact electronic circuits.

The device maintains a low maximum propagation delay time of 6.5ns, facilitating quick switching and improved performance in timing-critical applications. It operates reliably across a wide temperature range from -40°C to 125°C, making it suitable for industrial, automotive, and commercial use cases that demand robust and stable logic control components.

Typical applications include interfacing asynchronous and synchronous systems, frequency division, controlled delay circuits, and various digital logic control tasks. The product’s design caters to modern electronics requiring efficient and compact logic ICs.

The device is a dual edge triggered D-type flip-flop with asynchronous active LOW set and reset inputs. Supports a wide supply voltage range of 1.65V to 3.6V for mixed 5V and 3.3V applications. Features integrated termination resistors for improved signal integrity.

Operates reliably over a temperature range of -40°C to 125°C. Offers low propagation delay of 6.5ns for fast switching. Includes complementary outputs for versatile circuit design. Designed with flow-through pinout for easy PCB layout and routing.

Overvoltage tolerant input options and bus hold features enhance noise immunity. Explore further Nexperia semiconductor products and leverage our comprehensive electronics components range for your industrial, commercial, and laboratory needs here at EnvMart.

Explore more products in our Flip Flop ICs category.
