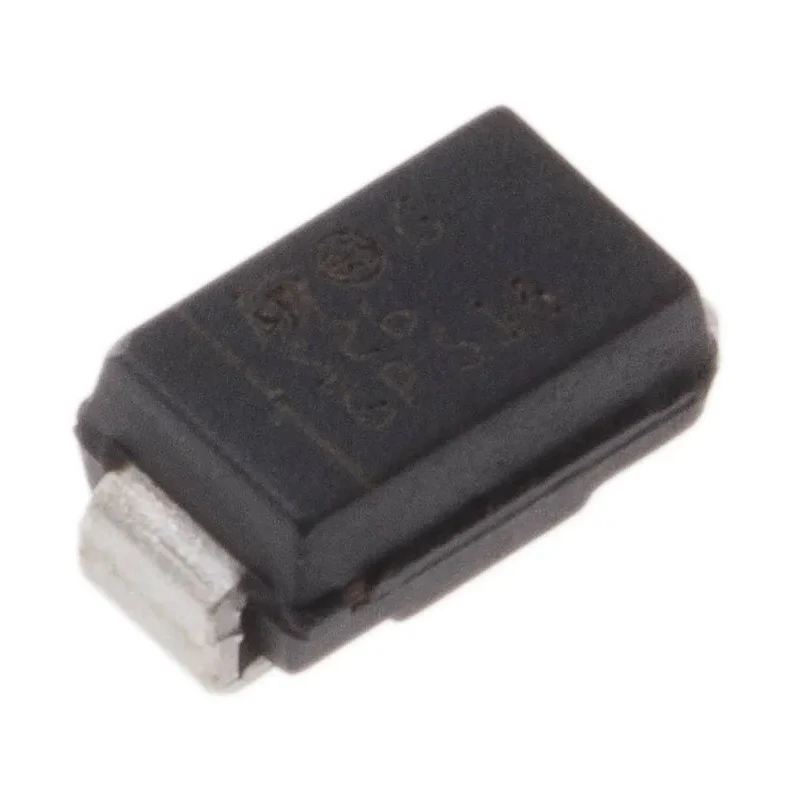

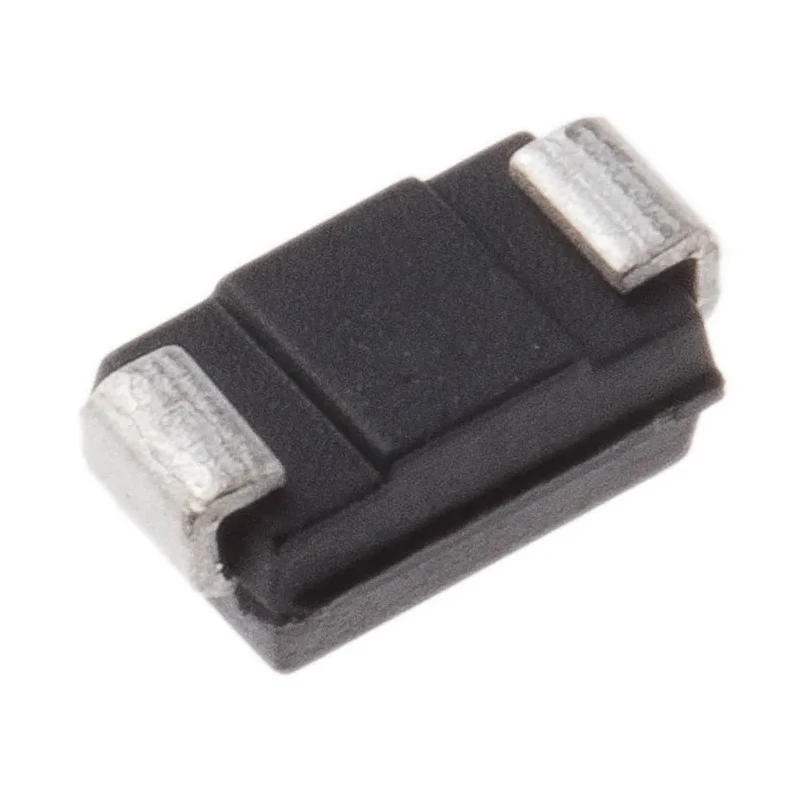

STMicroelectronics 60 V 2 A Surface Mount Schottky Diode DO-214AC STPS2L60A

Name: STMicroelectronics 60 V 2 A Surface Mount Schottky Diode DO-214AC STPS2L60A
Brand: STMicroelectronics
SKU: 150105
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.03mm
Length	4.6mm
Model	STPS2L60A
Width	2.95mm
Mount Type	Surface
Series	STPS2L60
Maximum Operating Temperature	150°C
Package Type	DO-214AC
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	75A
Maximum Forward Voltage Vf	0.51V

Key Features

This Schottky diode is designed for surface mount technology with a DO-214AC package.
It supports a maximum continuous forward current of 2 amperes.
The device has a peak repetitive reverse voltage of 60 volts.
The diode provides a low forward voltage drop of 0.51 volts.
It features a peak non-repetitive forward surge current capability of 75 amperes.
Operating temperature ranges from -65°C to 150°C ensuring reliability in harsh conditions.
The diode configuration is single with 2 pins suitable for efficient power conversion.
Compact physical dimensions facilitate integration in modern electronic assemblies.

Product Description

STMicroelectronics STPS2L60A is a high-performance Schottky barrier diode designed for surface mount applications, packaged in a DO-214AC casing. It supports a maximum continuous forward current of 2 A and withstands a peak repetitive reverse voltage of 60 V, making it ideal for efficient power rectification and fast switching in electronic circuits.

This single diode configuration with 2 pins offers a low forward voltage drop of 0.51 V, which enhances energy efficiency and reduces heat generation in power supplies. Its peak non-repetitive forward surge current is rated at 75 A, suitable for transient load conditions.

The diode operates reliably over an industrial temperature range from -65°C to 150°C, ensuring durability in harsh industrial, automotive, and consumer electronics environments. Its compact dimensions of 4.6 mm length, 2.95 mm width, and 2.03 mm height support use in space-constrained PCB layouts.

STMicroelectronics' Schottky diode series is well-regarded for electronic component applications including power supplies, voltage clamping, and reverse polarity protection. This device meets various industrial requirements without specific automotive certifications.

Surface mount Schottky barrier diode in DO-214AC package. 2 A maximum continuous forward current rating. Peak reverse repetitive voltage of 60 V. Low forward voltage drop of 0.51 V for efficiency. Supports peak surge current up to 75 A.

Operates between -65°C to 150°C for versatile use. Compact footprint: 4.6mm × 2.95mm × 2.03mm dimensions. Suitable for industrial, electronic, and power conversion applications. Explore more Schottky diodes and rectifiers from STMicroelectronics in EnvMart's Semiconductor Electronics category for reliable and efficient power device solutions.
