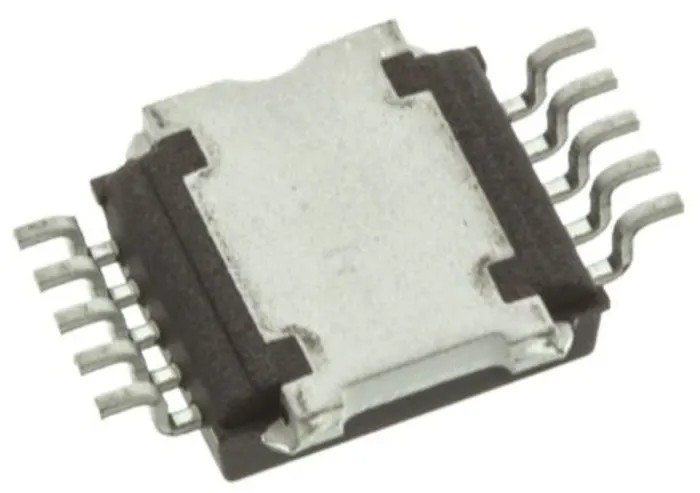

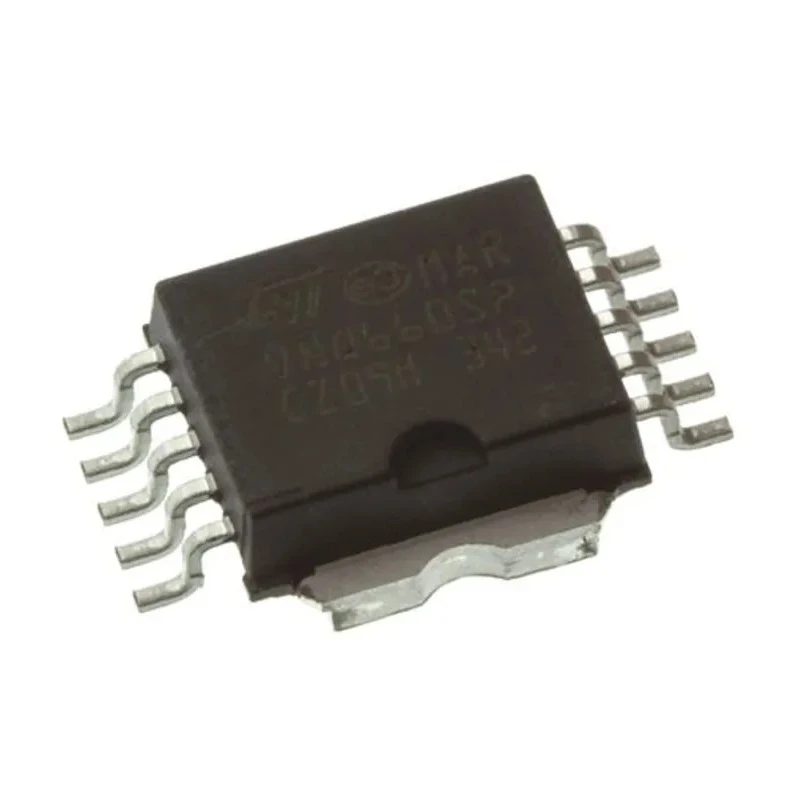

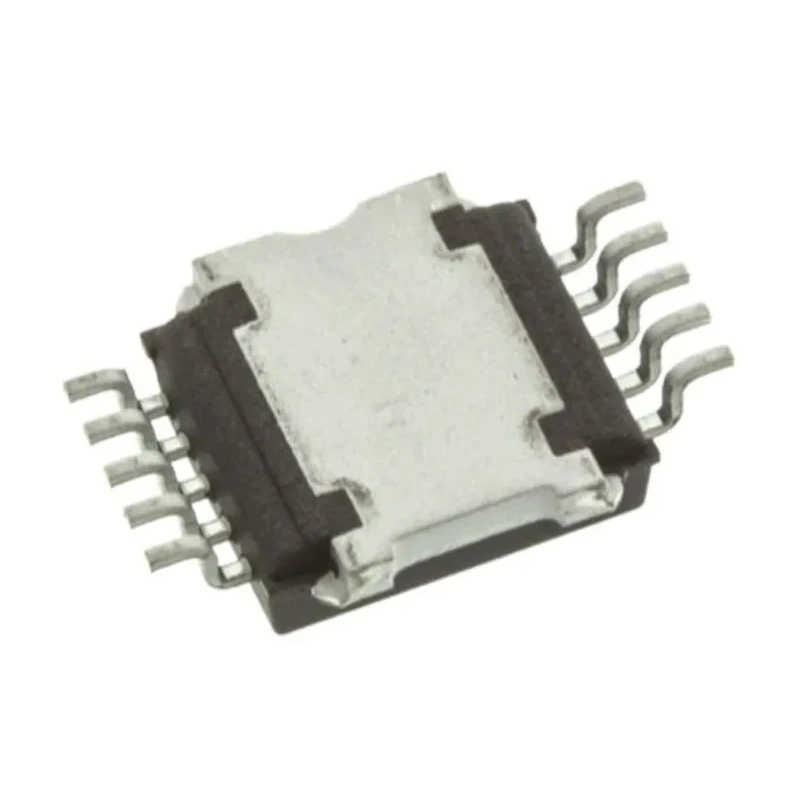

STMicroelectronics 5 Output Surface Mount Display Driver 2A PWM LED Driver STCS2ASPR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STCS2ASPR |
| Mount Type | Surface |
| Series | STCS2A |
| Sub Type | LED Driver |
| Operating Modes | ON, Shutdown |
| Number of outputs | 5 |
| Terminal type | Solder |
| Input Voltage | 40, 4.5V |
| Power Dissipation | 1.1W |
| Standards/Approvals | ECOPACK, JESD97 |
| Dimming Operation | PWM |
| Driver Current | 2A |
| LED Voltage | 40V |
Key Features
- Operates reliably with input voltages of 4.5 to 40 V.
- Supports 5 independent outputs for multiple LED channels.
- Driver current capability up to 2 amperes ensures robust LED control.
- PWM dimming enables precise LED brightness modulation.
- Surface mount design optimized for compact PCB integration.
- Features ON and shutdown operating modes for flexible control.
- Implements ECOPACK and JESD97 standards for quality and environmental compliance.
- Low power dissipation of 1.1 watts for thermal efficiency.
Product Description
STMicroelectronics STCS2ASPR 5 Output Display Driver is a versatile LED driver IC designed for controlling multiple LED channels with high precision and efficiency. It supports a wide input voltage range from 4.5 V to 40 V, making it suitable for various electronic applications requiring stable LED current regulation.
The device features five independent outputs capable of delivering up to 2 amperes of constant current per channel, which is set externally using a resistor. This makes it ideal for driving high-brightness LEDs in automotive, industrial, and consumer electronics lighting systems.
With PWM dimming operation, the STCS2ASPR enables users to modulate LED brightness smoothly, enhancing display and lighting performance. Its surface mount package allows easy integration into compact printed circuit boards (PCBs).
The driver supports ON and shutdown modes, offering flexible power management options to optimize energy consumption. It complies with ECOPACK and JESD97 standards, ensuring environmental and quality requirements are met.
The solder terminal type provides reliable and durable electrical connections suitable for automated assembly processes. The power dissipation is efficient with a rating of only 1.1 watts.
This LED driver is widely used in electronic component manufacturing, LED lighting components, and embedded display solutions across industrial, commercial, and automotive sectors.
Set includes 1 Pc STMicroelectronics STCS2ASPR 5 Output Display Driver. Operates reliably with input voltages of 4.5 to 40 V. Supports 5 independent outputs for multiple LED channels. Driver current capability up to 2 amperes ensures robust LED control.
PWM dimming enables precise LED brightness modulation. Surface mount design optimized for compact PCB integration. Features ON and shutdown operating modes for flexible control. Implements ECOPACK and JESD97 standards for quality and environmental compliance.
Low power dissipation of 1.1 watts for thermal efficiency. Solder terminal type ensures reliable electrical connections. Discover the comprehensive range of STMicroelectronics LED Drivers at EnvMart for your electronic and lighting design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably with input voltages ranging from 4.5 V to 40 V.
The STCS2ASPR supports five independent outputs for controlling multiple LED channels.
It has a driver current capability of up to 2 amperes per channel, ensuring robust LED control.
This unit supports PWM dimming, allowing for precise modulation of LED brightness.
The power dissipation for this model is rated at 1.1 watts, contributing to its thermal efficiency.
It features ON and shutdown operating modes, providing flexible control options.
This model has a surface mount design, optimized for compact PCB integration.
It implements ECOPACK and JESD97 standards for quality and environmental compliance.
The terminal type for this model is solder, ensuring reliable electrical connections.
This driver can handle LED voltages up to 40 V.
It is widely used in automotive, industrial, and consumer electronics lighting systems.
The package includes one piece of the STMicroelectronics STCS2ASPR 5 Output Display Driver.
