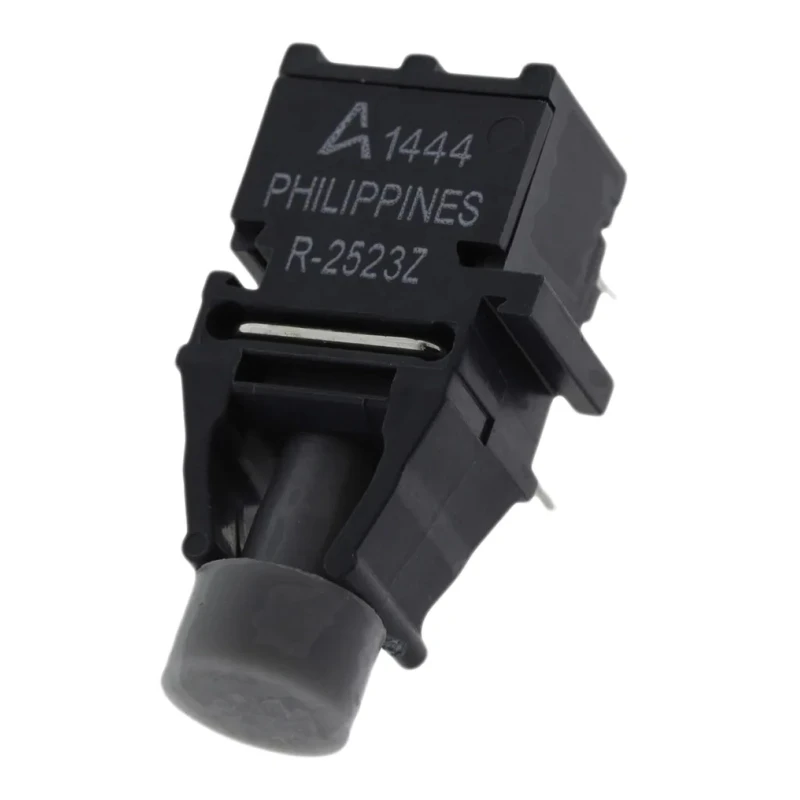

Broadcom Fibre Optic Receiver 0.04 MBd 660 nm TTL Output Through Hole Round H Push-in Connector HFBR-2523Z

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Fibre Optic Receiver 0.04 MBd 660 nm TTL Output Through Hole Round H Push-in Connector HFBR-2523Z

Name: Broadcom Fibre Optic Receiver 0.04 MBd 660 nm TTL Output Through Hole Round H Push-in Connector HFBR-2523Z
Brand: Broadcom
SKU: 149815
Price: 19.93 USD
Availability: InStock



Category Fibre Optic Receiver Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Height	7.62mm
Length	18.8mm
Model	HFBR-2523Z
Connector Type	H Push-in
Width	12.19mm
Mount Type	Through Hole
Series	Versatile Link
Number of Pins	6
Typical Rise Time	13ns
Typical Fall Time	10ns
Maximum Data Rate	0.04MBd
Output Signal Type	TTL
Connector Shape	Round
Wavelength of Peak Sensitivity	660nm
- Low current link	6mA peak supply current
- Enhanced digital links	dc-5 MBd
- Extended distance links	up to 120m at 40kBd
- Easy connecting	simplex, duplex and latching connectors
Avago HFBR-2523 0.04MBd 600Nm Fibre Optic Receiver, RoundBrand	Avago Technologies

Key Features

The receiver operates at a wavelength peak sensitivity of 660 nm for optimal LED detection.
Features TTL output signal type compatible with standard digital circuits.
Compact through hole mount design with a round connector shape and H push-in connector type.
Consists of 6 pins providing secure and reliable electrical connections.
Includes enhanced digital link capability with dc-5 MBd data rate support and low peak supply current of 6 mA.
Offers extended distance communication up to 120 meters at 40 kBd.
Designed for noise-immune fibre optic communication in industrial, data network, and audio/video applications.

Product Description

Broadcom HFBR-2523Z is a fibre optic receiver featuring a maximum data rate of 0.04 MBd, optimized for 660 nm wavelength LED sources. This receiver is designed for use in industrial automation, local area networks, and audio/video equipment requiring noise-immune data communication.

The device supports TTL output signaling with a 6-pin configuration and through hole mounting. Its round shape with an H push-in connector facilitates easy and secure connectivity on PCBs. The receiver belongs to the Versatile Link series, offering enhanced digital links with data rates up to dc-5 MBd and peak supply current of just 6 mA.

With typical rise and fall times of 13 ns and 10 ns respectively, it ensures fast and reliable signal detection. The unit supports communication distances up to 120 meters at 40 kBd, making it suitable for extended range fibre optic links.

The physical dimensions of 18.8 mm length, 12.19 mm width, and 7.62 mm height allow compact deployment in electronic systems. The HFBR-2523Z receiver offers flame retardant construction and high noise immunity for robust performance in challenging industrial environments.

Typical applications include motor controller triggering, secured data communication, and noise-immune transmission in various electronic and audio/video devices. Its compatibility with TTL logic and simplex, duplex, and latching connectors provides further versatility for system integrators.

The receiver is part of the HFBR-0500Z series, known for reliable fibre optic links. Low current consumption and extended communication distance enhance system efficiency. Easy connecting via multiple connector types improves installation and maintenance.

Suitable for industrial, laboratory, commercial, and manufacturing environments. Broadcom’s Versatile Link products ensure superior EMI/RFI immunity and signal insulation. Explore more Fibre Optic Receivers and complementary components under the Electronics & Electricals category on EnvMart.
