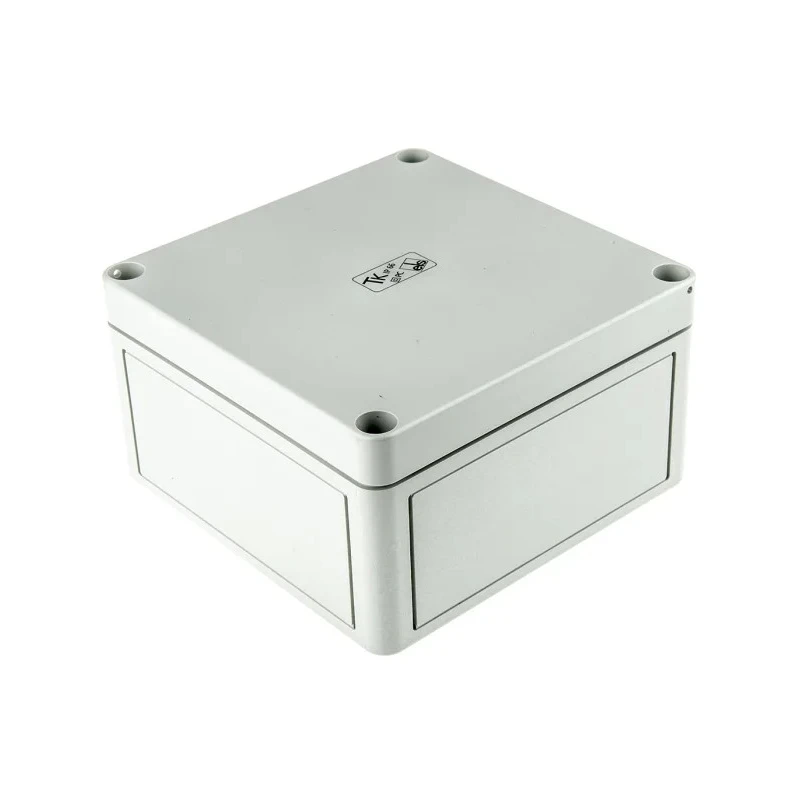

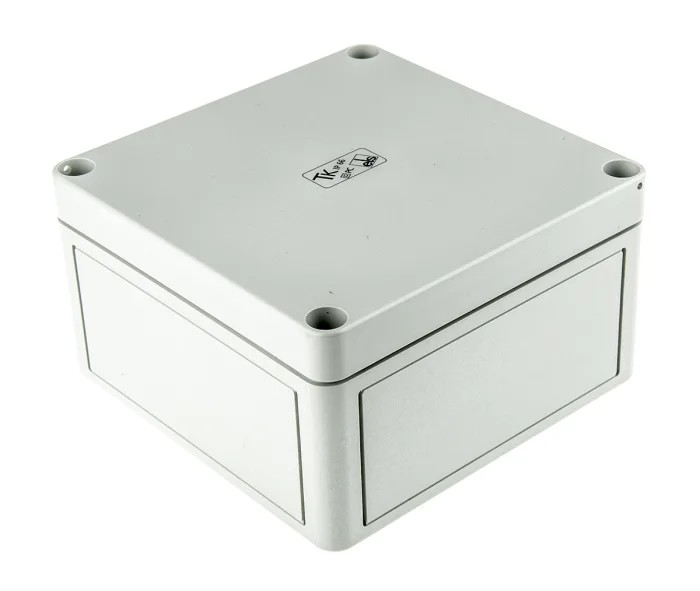

Spelsberg TK PC Series Grey Grey Lid Polycarbonate Enclosure IP66 IK08 75 mm x 130 mm x 130 mm 12040501

Spelsberg 12040501 TK PC Series Grey Grey Lid Polycarbonate Enclosure is a high-quality protective housing for electrical, electronic, and pneumatic equipment. Constructed from grey glass-fibre reinforced polycarbonate the enclosure provides excellent mechanical strength and resistance to impact (IK08) while offering IP66 rating for dust tight and water jet protection.

The enclosure features a grey polycarbonate lid and base with polyurethane sealing, ensuring a secure and weather-resistant enclosure suitable for both indoor and outdoor use. The product includes polyamide 6 fibre glass reinforced cover screws which reliably fasten the lid while maintaining the integrity of the enclosure seal.

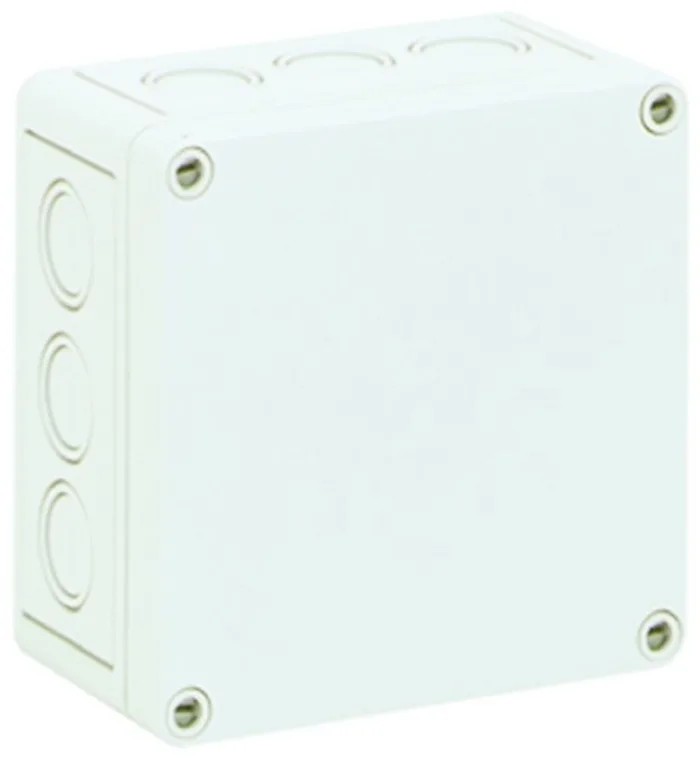

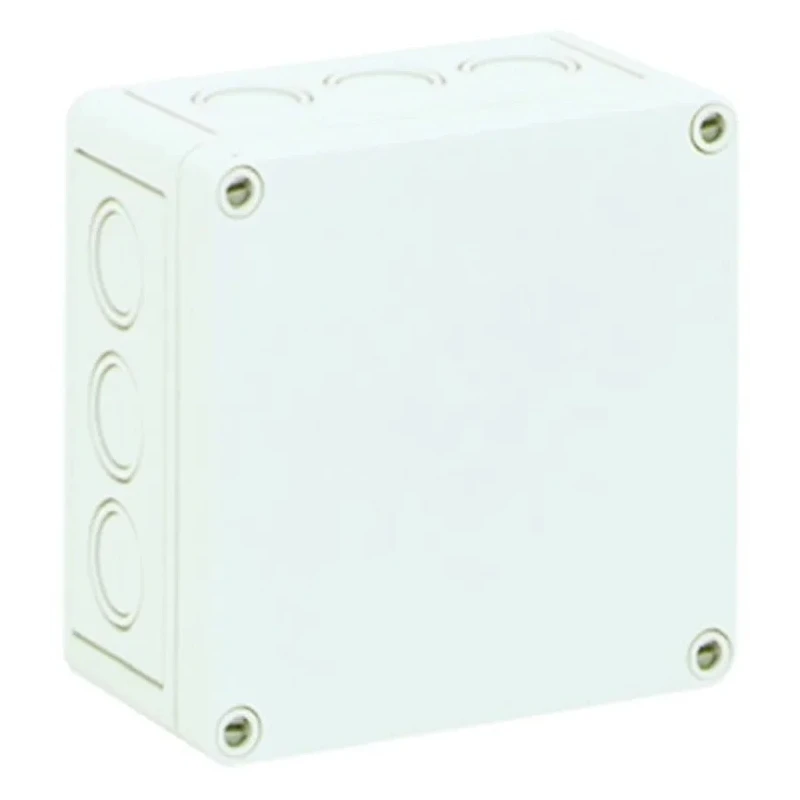

This TK PC series enclosure includes pre-pressed metric knockouts for easy cable entry and mounting flexibility. The enclosure supports wall mounting using through holes below the lid fixing screws, as well as surface mounting using knockouts located in the base bottom, with sealing plugs provided.

Key technical standards met include CE, EN 60529/DIN VDE 0470-1, UL94 fire rating, and compliance with DIN EN 5012/VDE 0470 Part 100. The flammability rating is VDE 0471 compliant with 960 °C / V2 classification.

The enclosure is shielded against electromagnetic interference, making it suitable for sensitive electronic device installations. The operating temperature range from -35 to +80 °C allows deployment in a wide range of environmental conditions.

Constructed of glass-fibre reinforced polycarbonate for robust protection. IP66-rated for dust and water ingress protection. IK08-rated for impact resistance. Pre-pressed metric knockouts for flexible cable entries. Weatherproof polyurethane sealing gasket included.

Polyamide reinforced cover screws enhance structural integrity. Suitable for indoor and outdoor applications. Flammability rated UL94, V2 to 960 °C. Shielded to prevent electromagnetic interference. Manufactured in Germany ensuring quality assurance.

This enclosure is an excellent choice for industrial, electrical, automation, and manufacturing sectors requiring reliable equipment protection. It is ideal for control stations, instrumentation housing, and outdoor electrical installations.
