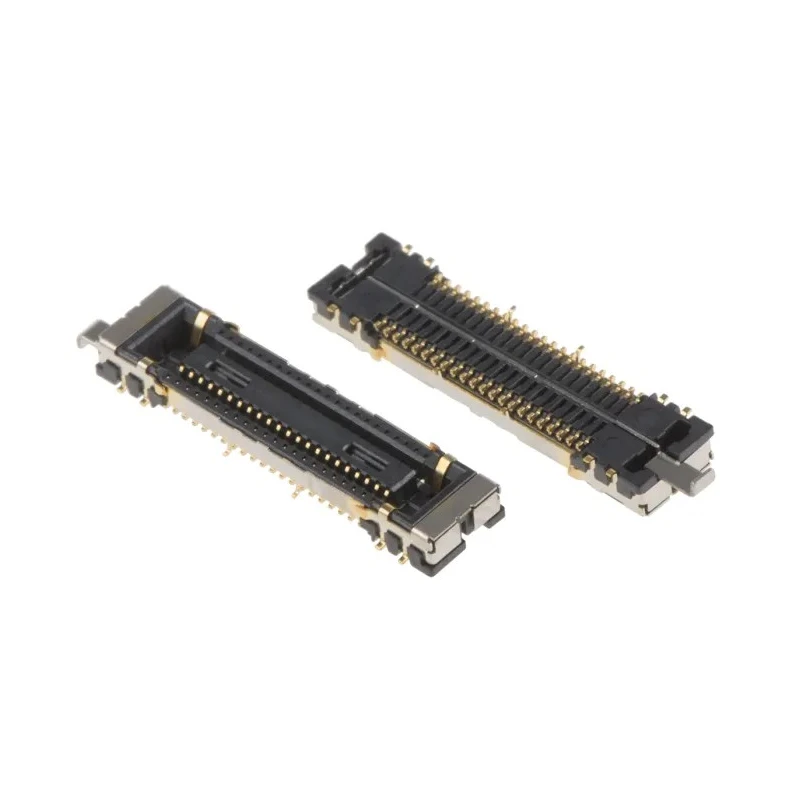

Hirose 40 Position 0.4 mm Pitch 30 V Surface Mount Straight Female FPC Connector DF40GL-44DS-0.4V(58)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30, 30V ac |
| Brand | Hirose |
| Orientation | Straight |
| Current | 350mA |
| Model | DF40GL-44DS-0.4V(58) |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | 40 |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.4mm |
| Contact Plating | Gold |
| Number of Contacts | 44 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | Non-ZIF |
| Contact Position | Top |
Key Features
- Supports a maximum current of 350 mA and voltage rating of 30 V AC.
- Features phosphor bronze contacts plated with gold for enhanced conductivity and corrosion resistance.
- Includes a positive lock mechanism and shielded design for secure connections and reduced interference.
- Has a compact 0.4mm pitch with 2 rows and top contact position for precise board assembly.
- Constructed with liquid crystal polymer housing ensuring durability and thermal stability from -55°C to 85°C operating temperature range.
- Non-ZIF insertion force allows for smooth mating operation without damage to contacts.
- Female connector gender suitable for FPC cable assemblies with a straight orientation.
- Ideal for high-speed transmission in electronic, industrial, and communication equipment.
Product Description
Hirose DF40GL-44DS-0.4V(58) is a 40 position straight female Flexible Printed Circuit (FPC) connector featuring a 0.4 mm pitch and surface mount termination type. Designed for compact and high-performance electronic assemblies, it supports a current of 350 mA and voltage up to 30 V AC. The connector is constructed with phosphor bronze contacts plated in gold to ensure excellent conductivity and long-lasting corrosion resistance.
The housing is made from liquid crystal polymer, providing mechanical strength and stability across a wide operating temperature range from -55°C to 85°C. It incorporates a positive locking mechanism to secure connections and shielded design to minimize electrical interference, suitable for high-speed transmission environments.
Contact positioning is on the top with two rows, enabling precise surface mounting on PCBs. The non-ZIF insertion force facilitates smooth mating without risking contact damage, ideal for reliable industrial electronics, telecommunications, and laboratory equipment applications.
This connector supports reliable and durable board-to-board or board-to-FPC connections in compact electronic devices and industrial systems. Supports a maximum current of 350 mA and voltage rating of 30 V AC. Phosphor bronze gold-plated contacts allow excellent conductivity and corrosion protection.
Positive lock and shielded design provide secure, interference-resistant connections. Compact 0.4 mm pitch, 2-row design, top contact position for efficient PCB assembly. Liquid crystal polymer housing supports wide temperature range from -55°C to 85°C.
Non-ZIF insertion force offers smooth, damage-free mating operation. Female connector gender is compatible with FPC cables and assemblies. Ideal for industrial, electronic, communication, and laboratory applications requiring high-speed transmission.
Explore a wide range of FPC Connectors and electronic components at EnvMart for reliable industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose DF40GL-44DS-0.4V(58) supports a maximum current of 350 mA and a voltage rating of 30 V AC.
This model features phosphor bronze contacts plated with gold for enhanced conductivity and corrosion resistance, and its housing is made from liquid crystal polymer.
The connector has a compact pitch of 0.4 mm and includes 44 contacts arranged in a 2-row configuration.
It utilizes a surface mount termination type, designed for precise assembly on PCBs.
The operating temperature range for this model is from -55°C to 85°C.
Yes, it incorporates a positive locking mechanism to secure connections and minimize the risk of disconnection.
This model features a non-ZIF (Zero Insertion Force) insertion force, allowing for smooth mating without damaging the contacts.
It is ideal for high-speed transmission in electronic, industrial, and communication equipment applications.
The connector has a straight orientation, suitable for FPC cable assemblies.
The contact position is on the top, which facilitates efficient surface mounting on PCBs.
The country of origin for this connector is India.
This connector has a female gender, making it suitable for FPC cable assemblies.
