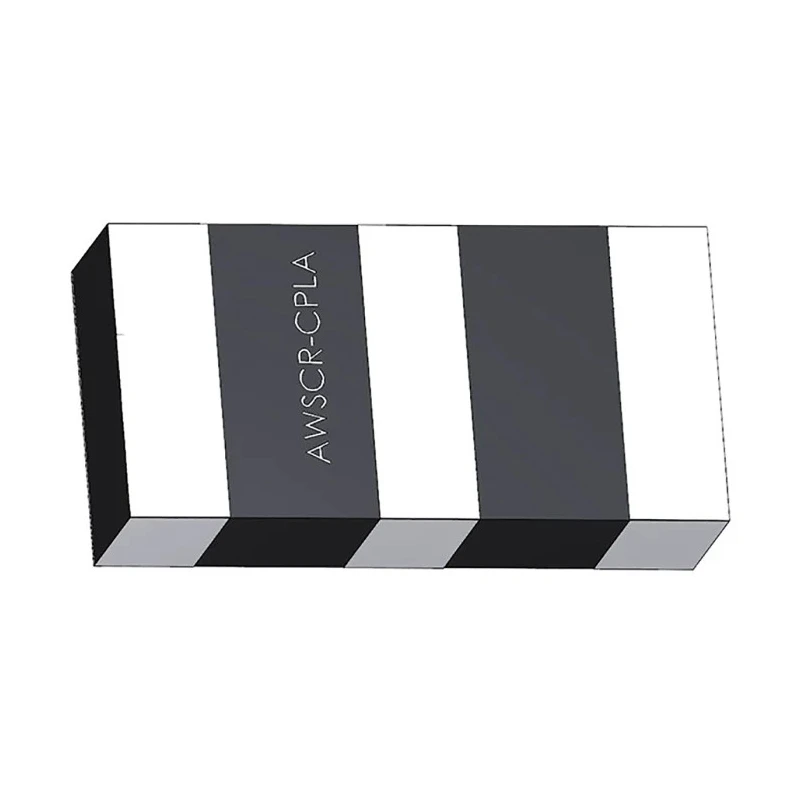

Abracon Ceramic Resonator 3.58 MHz 30 pF 3-Pin Surface Mount Tape & Reel AWSCR-3.58CPLA-C30-T4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.5mm |
| Length | 6mm |
| Model | AWSCR-3.58CPLA-C30-T4 |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | AWSCR-CPLA |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 30pF |
| Resonance Frequency | 3.58MHz |
| Resonance Resistance | 30Ω |
Key Features
- Resonance frequency of 3.58 MHz ensures precise oscillation control.
- ±0.5% frequency tolerance provides reliable performance in circuits.
- Comes in tape & reel packaging for automated assembly.
- Surface mount type with solder termination suitable for PCB mounting.
- Wide operating temperature range from -40°C to 85°C enables use in diverse environments.
- Low resonance resistance of 30Ω minimizes energy losses in circuits.
- Compact dimensions of 6 mm length, 3 mm width, and 1.5 mm height allow space saving PCB design.
- Built to RoHS compliance standards ensuring environmental safety.
Product Description
Abracon AWSCR-3.58CPLA-C30-T4 Ceramic Resonator is a high-quality passive electronic component designed for frequency control in various industrial and electronic applications. It operates at a resonance frequency of 3.58 MHz with a load capacitance of 30 pF, providing precise timing and oscillation stability.
This surface mount device features a 3-pin configuration with a footprint optimized for automated placement and soldering, packaged in tape & reel format facilitating efficient high-volume manufacturing processes.
The ceramic resonator is engineered with a frequency tolerance of ±0.5% and frequency stability of ±0.3%, ensuring dependable performance in demanding environments. It supports a broad operating temperature range from -40°C to 85°C, suitable for industrial, metering, and microprocessor control systems.
Mechanical dimensions of 6 mm length, 3 mm width, and 1.5 mm height make this component compact, aiding in optimized PCB layouts. Its low resonance resistance of 30Ω helps maintain signal integrity and reduces energy dissipation in electronic circuits.
The product complies with RoHS standards, supporting environmental safety requirements. Its typical applications include electronic metering systems, industrial automation controls, microprocessor timing circuits, remote controls, and electric appliances.
Resonance frequency of 3.58 MHz. ±0.5% frequency tolerance for precision. 30 pF load capacitance for stable oscillation. Surface mount 3-pin package suitable for automated PCB assembly. Wide temperature range from -40°C to 85°C.
Low resonance resistance of 30Ω. Compact size: 6 mm × 3 mm × 1.5 mm. RoHS compliance ensuring eco-friendly manufacturing. Applicable in industrial, metering, and microprocessor control systems. Explore high quality Abracon Ceramic Resonators at EnvMart for precision and reliability in your electronic projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 3.58 MHz, ensuring precise oscillation control in electronic circuits.
This ceramic resonator has a load capacitance of 30 pF, which contributes to its stable oscillation performance.
It features a frequency tolerance of ±0.5%, providing reliable performance in various applications.
The operating temperature range for this unit is from -40°C to 85°C, making it suitable for diverse environments.
This model has compact dimensions of 6 mm in length, 3 mm in width, and 1.5 mm in height, allowing for space-saving PCB design.
It comes in tape & reel packaging, which is designed for automated assembly processes in high-volume manufacturing.
The resonance resistance is low at 30Ω, which helps minimize energy losses in electronic circuits.
This unit is a surface mount type with solder termination, suitable for PCB mounting.
This ceramic resonator features a 3-pin configuration, optimized for automated placement and soldering.
It complies with RoHS standards, ensuring environmental safety in its manufacturing process.
Typical applications include electronic metering systems, industrial automation controls, microprocessor timing circuits, and remote controls.
This model is part of the AWSCR-CPLA series, which includes other similar frequency control components.
