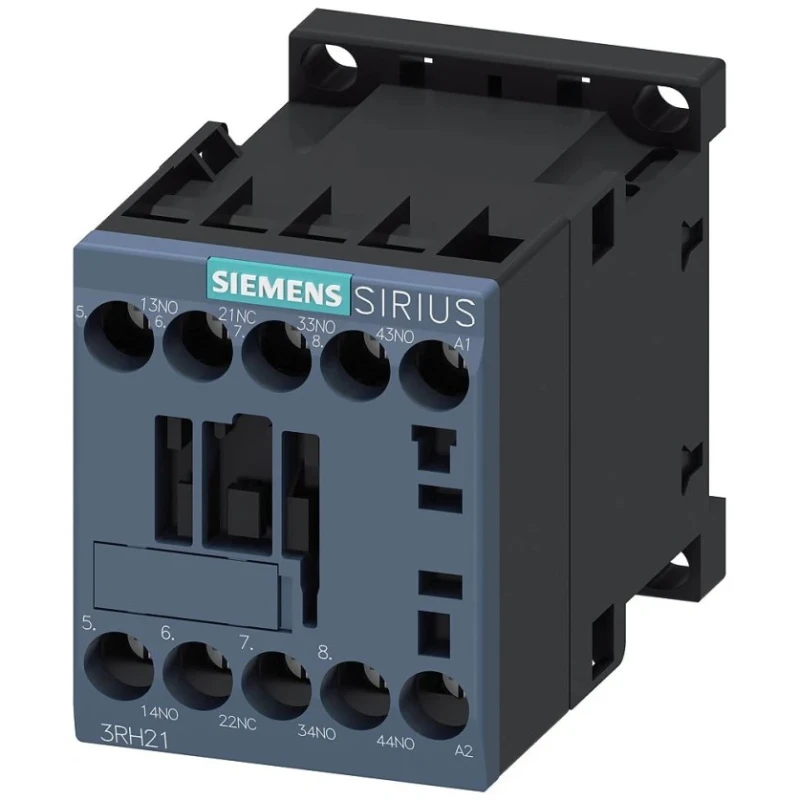

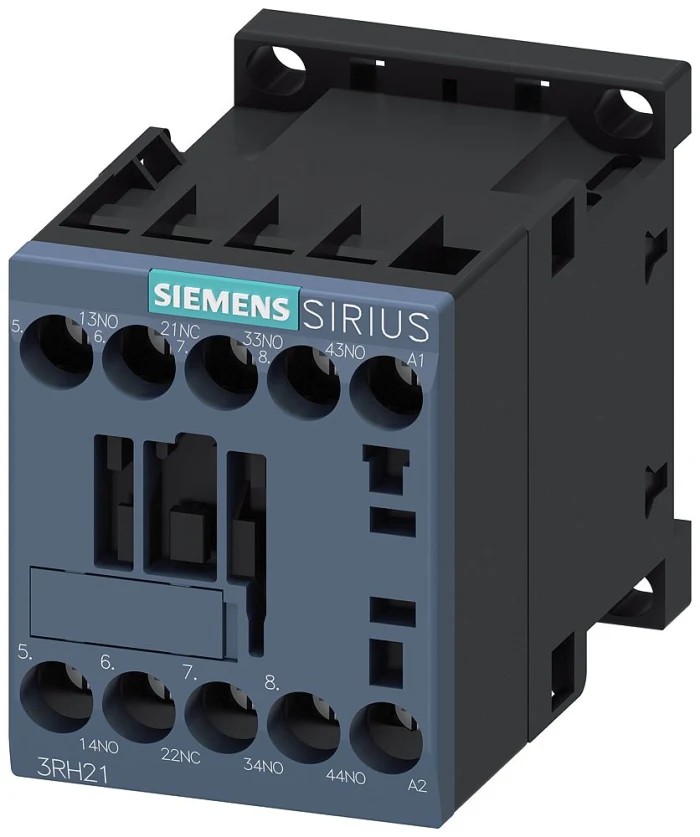

Siemens Contactor Relay 24V AC Coil, 10A, 3NO/1NC, DIN Rail, 690V AC, Model 3RH2131-1AB00

The Siemens 3RH2131-1AB00 is a high-performance contactor relay engineered for demanding automation and control panel applications. Designed to operate with a 24V AC coil, this relay provides reliable load switching capacity, supporting a maximum contact current of 10A and a contact voltage rating up to 690V AC. Its robust construction allows it to function at a wide ambient temperature range and in challenging industrial settings.

The relay features a versatile 3NO/1NC contact configuration, making it ideal for both standard switching and more intricate control circuit arrangements. It incorporates screw terminals to provide strong, low-resistance electrical connections, thereby supporting stability and operational reliability. The compact body, measuring just 57.5mm in length, 45mm in width, and 73mm in depth, enables easy integration into modern, space-constrained control cabinets.

Built for quick and secure installation, the 3RH2131-1AB00 is designed for DIN rail mounting, allowing standardization across new and retrofit panels. An auxiliary contact block (3NO + 1NC) further enhances its control versatility, permitting the relay’s use in motor control, load switching, and interlocking circuits for manufacturing lines, machine tools, HVAC systems, and process industry environments.

The relay can endure frequent actuations, with mechanical life expectancy rated for up to 30 million cycles and a maximum no-load switching frequency of 10,000 actuations per hour. This ensures the device is suitable for high-cycle industrial automation tasks without sacrificing long-term dependability. It is compliant with major international standards (UL, IEC 61508, IEC 60947-5-1, IEC 60529, EAC, CSA, CE, CCC) and tested for parameters such as shock resistance (11.4g) and surge voltage (6kV), offering peace of mind regarding both safety and durability.

Capable of operating in temperature extremes from -25°C up to +60°C, the relay remains dependable even in harsh manufacturing or process environments. Industrial designers, panel builders, and system integrators will benefit from its dependable operation, flexible mounting, and compatibility with global control standards.

This Siemens contactor relay is most commonly deployed in factory automation, industrial machinery control panels, HVAC systems, and motor control centers - where robust switching and auxiliary signaling are integral to smooth plant operations. The quality, extensive certification, and modularity of the 3RH2131-1AB00 make it a preferred choice for operational reliability and electrical safety.
