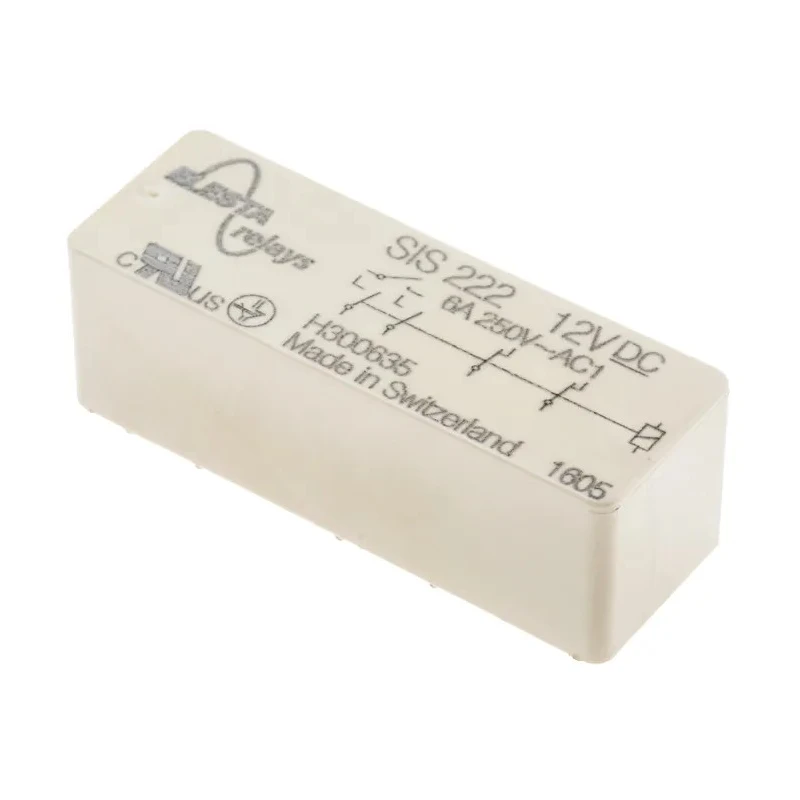

Elesta PCB Force Guided Relay 12V DC Coil Voltage, 2-Pole DPDT SIS 222 12VDC

Elesta SIS 222 12VDC PCB Force Guided Relay is a high-performance relay designed for industrial automation and railway signaling systems. This unit operates with a 12V DC coil voltage and delivers reliable switching, utilizing a 2-pole double throw (DPDT) contact configuration. Its gold-plated contacts ensure stable electrical performance and resistance to oxidation, making it ideal for mission-critical environments.

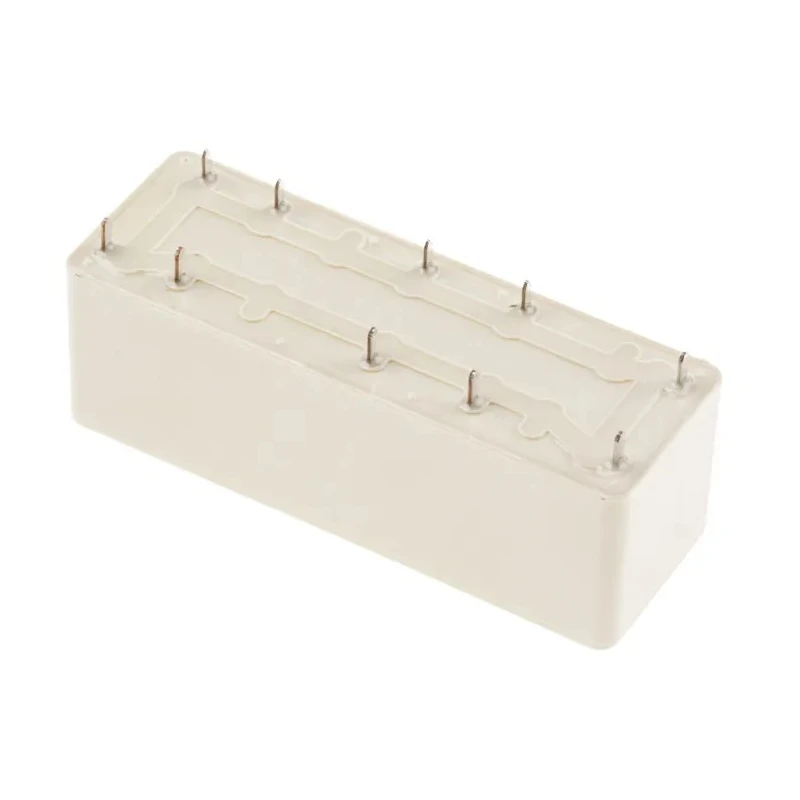

The relay is engineered for PCB mounting, offering a compact footprint with physical dimensions of 48 mm length, 16.5 mm height, and 16.6 mm depth. It incorporates protective separation between control and load circuits (leakage and creepage distance exceeding 8 mm) for enhanced safety and double/reinforced insulation between contacts. This allows use in safety-critical industrial and railway applications, certified to EN 50155 and EN 50205, Type A standards.

Operable across a wide temperature range from -40°C to 70°C, the SIS 222 12VDC model maintains performance in extreme conditions. The coil consumes a mean power of just 0.5 W, with holding power of 0.15 W, making it energy-efficient for continuous operation. The terminal type is solder, further supporting robust PCB integration.

With a DPDT configuration and 2 poles, this relay offers flexible switching for control circuits, signal conditioning, and automation systems. Installation is simple due to its small external dimensions, supporting high-density PCB layouts. The gold-plated contact material guarantees reliable actuation through frequent cycles and under harsh industrial atmospheres.

Applications for this relay include industrial automation, control panels, railway signaling, safety logic circuits, and any environment requiring securely guided contacts with reinforced insulation and protective separation. The SIS series supports demanding requirements for both control and load circuit isolation.

Features a 12V DC coil voltage for reliable signal switching applications. Double pole double throw (DPDT) contact configuration ensures versatile control. Gold-plated contacts offer improved conductivity and corrosion resistance.

Compact dimensions allow efficient PCB mounting in electronic control systems. Protective separation between control and load circuit with reinforced insulation. Coil power consumption of 0.5 W maximizes energy efficiency.

Supports a wide operating temperature range from -40°C to 70°C. Designed for demanding industrial and railway applications according to EN 50155. Explore the complete range of Elesta relays and industrial control products in the Industrial Relays category on EnvMart for advanced automation and signal conditioning solutions.
