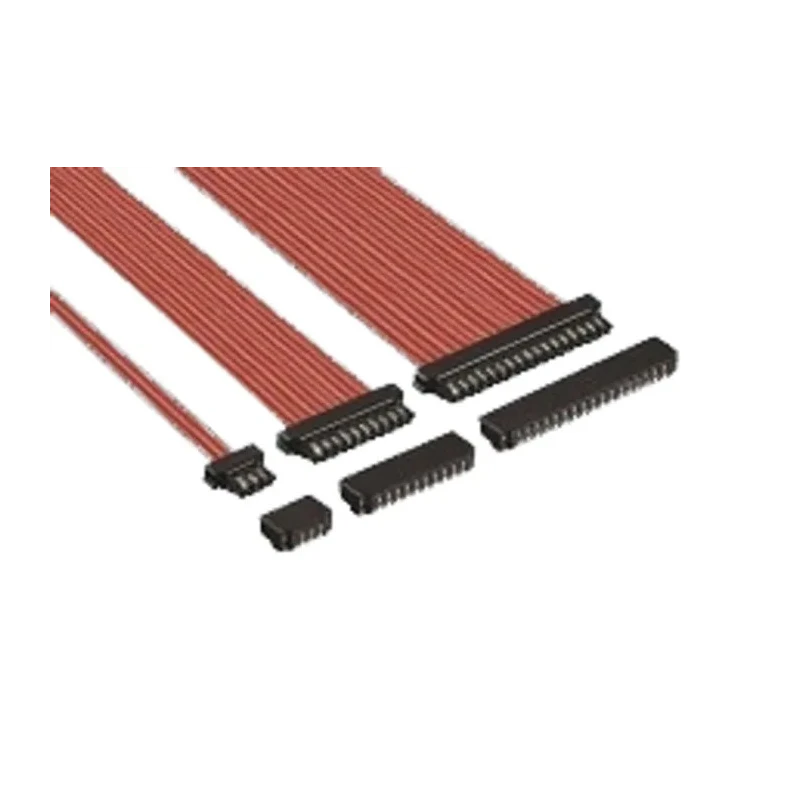

Hirose 52 Series Straight Cable FPC Connector, 16 Contacts, 0.8 mm Pitch, 1 Row DF52-16P-0.8C
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100, 100V ac |
| Brand | Hirose |
| Orientation | Straight |
| Current | 800, 1, 1.2mA |
| Model | DF52-16P-0.8C |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | 52 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance strength |
| Number of Rows | 1 |
| Pitch | 0.8mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
Key Features
- Small and robust wire to board connector suitable for compact electronic assemblies.
- Rated for currents up to 2.5 Amps maximum with AWG#28 cabling support.
- Housing made of durable polyamide material ensuring thermal and mechanical stability.
- Operating temperature range from -40°C to 85°C for versatile application environments.
- Contact plating of tin over copper alloy ensures reliable electrical conductivity and corrosion resistance.
- Termination type is crimp with high contact lance strength for secure attachment.
- Compatible with cables having jacket outer diameter of 0.5 to 0.6 mm, supporting AWG#32 to 28 wires.
- Available in straight plug configuration; receptacles offered in right angle orientation.
Product Description
Hirose DF52-16P-0.8C is a 52 Series Straight Cable FPC Connector designed for high-density electronic applications requiring reliable wire-to-board connections. Featuring 16 male contacts arranged in a single row with a pitch of 0.8 mm, this connector facilitates compact assembly with a height of 1.75 mm and depth of 4.1 mm. It supports operating voltages up to 100 V AC and maximum current ratings of 2.5 Amps for AWG#28 conductors.
The housing is made from durable polyamide material, providing mechanical robustness and thermal stability from -40°C to 85°C operating temperatures. The copper alloy contacts are plated with tin to offer corrosion resistance and ensure stable electrical performance. The crimp termination with a box-shaped contact design avoids deformation and maintains secure connectivity, complemented by a high contact lance strength interface.
Suitable for cables with jacket outer diameters between 0.5 and 0.6 mm (AWG#32 to 28), this small connector is available as a straight plug, with matching receptacles offered at right angle orientations for versatile PCB mounting. Being halogen-free, it meets environmental safety requirements often demanded in industrial, laboratory, and commercial electronics manufacturing.
Small and robust design for space-constrained electronic assemblies. Supports up to 2.5 Amp current with AWG#28 wires for reliable power delivery. Durable polyamide housing for excellent thermal and mechanical stability.
Wide operating temperature range from -40°C to 85°C. Tin-plated copper alloy contacts for corrosion resistance. Crimp termination with box-shaped design prevents deformation. Compatible with 0.5 to 0.6 mm cable jackets, AWG#32 to 28 wires.
Straight plug with available right-angle receptacle options. Halogen-free for safer environmental compliance.
This connector is ideal for electronic component assembly in industrial automation, consumer electronics, telecommunications, and laboratory instrumentation. Reliable, compact, and designed for precise cable mounting, the Hirose DF52-16P-0.8C supports efficient PCB header wiring.
