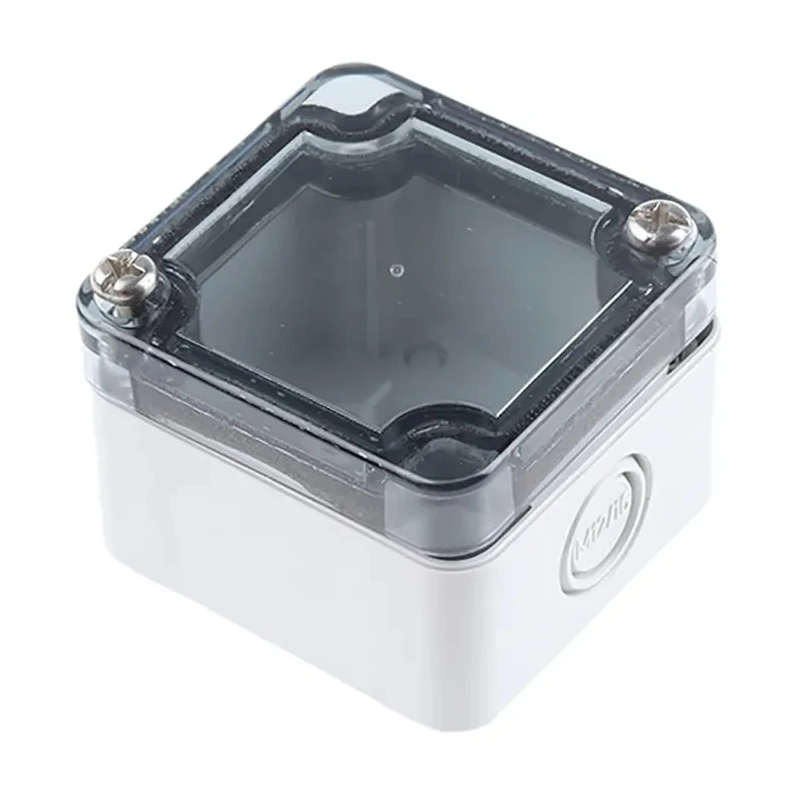

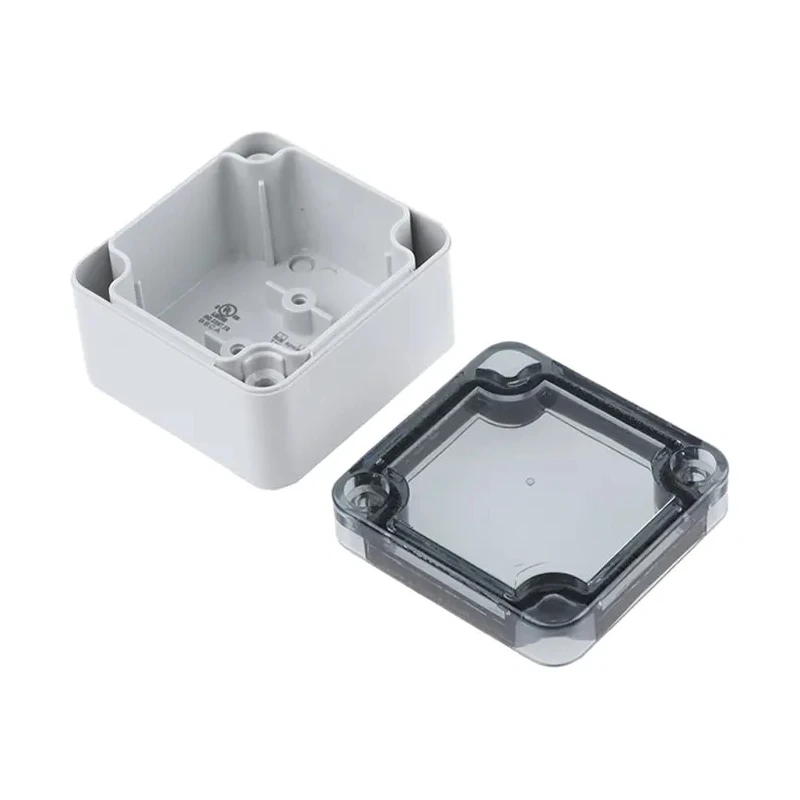

Spelsberg TK PC Series Grey Transparent Lid Polycarbonate Enclosure IP66 IK08 35 mm x 52 mm x 50 mm IP66

Free Delivery in India | Lowest Global Shipping Charges

Spelsberg TK PC Series Grey Transparent Lid Polycarbonate Enclosure IP66 IK08 35 mm x 52 mm x 50 mm IP66

Name: Spelsberg TK PC Series Grey Transparent Lid Polycarbonate Enclosure IP66 IK08 35 mm x 52 mm x 50 mm IP66
Brand: Spelsberg
SKU: 188611
Price: 12.67 USD
Availability: InStock



Category General Purpose Enclosures Brand Spelsberg Condition New

Specifications

Country of Origin	Germany
Brand	Spelsberg
Colour	Grey
Body Material	Polycarbonate
Model	IP66
IP Rating	IP66
Series	TK PC
External Width	50mm
External Height	35mm
Shielding	Unshielded
Flammability Rating	VDE 0471, UL94, 960 °C / V2
External Length	52mm
Lid Colour	Transparent
IK Rating	IK08
Number of Knockouts	1

Key Features

The enclosure features an IP66 rating, ensuring protection against dust and powerful water jets.
IK08 rating provides strong impact resistance, suitable for industrial and commercial environments.
Constructed from durable polycarbonate material with a transparent lid for easy visual inspection.
External dimensions are 35 mm height, 52 mm length, and 50 mm width, compact for various installation needs.
Equipped with one pre-pressed metric knockout for flexible wiring and conduit connections.
Halogen free materials and compliant with flammability ratings VDE 0471, UL94, 960 °C/V2.
Operating temperature range spans from -35 °C to +80 °C, enabling usage in varied environmental conditions.
Designed for wall mounting and surface mounting using the provided knockouts and sealing plugs.

Product Description

Spelsberg IP66 polycarbonate enclosure TK PC Series (model IP66) is a high-quality electrical enclosure engineered for protection and versatility. With dimensions of 35 mm height, 52 mm length, and 50 mm width, it offers a compact solution for housing electrical, electronic, and pneumatic components in industrial and commercial applications.

The enclosure features an IP66 ingress protection rating compliant with EN 60529 and DIN VDE 0470-1 standards, providing dust-tight sealing and resistance against powerful water jets. Additionally, it holds an IK08 impact resistance rating according to DIN EN 5012 and VDE 0470 Part 100, ensuring robust durability in rigorous environments.

Constructed from grey polycarbonate with a transparent polycarbonate lid, the enclosure facilitates visual inspection without compromising on protection. The base includes one pre-pressed metric knockout for versatile cable entry, while mounting flexibility is enhanced with through holes beneath the lid fixing screws for wall mounting and knockouts in the base for surface mounting, supplied with sealing plugs.

The enclosure is halogen free and meets flammability ratings VDE 0471 and UL94 at 960 °C/V2, ensuring safety and compliance. It operates reliably in a temperature range from -35 °C to +80 °C.

The enclosure’s transparent lid allows easy monitoring of electrical components without opening the box. Its polycarbonate material provides excellent resistance to acids and alkalis, enhancing longevity and suitability for harsh environments.

Designed for general purpose applications in electrical automation, industrial control systems, and pneumatic equipment housing. Manufactured in Germany, ensuring high-quality standards and reliability. The TK PC Series combines functionality, protection, and user-friendly design in a compact footprint.

This enclosure is part of the broader EnvMart offering of electrical enclosures, ideal for customers seeking durable, reliable, and versatile protective solutions for sensitive equipment.
