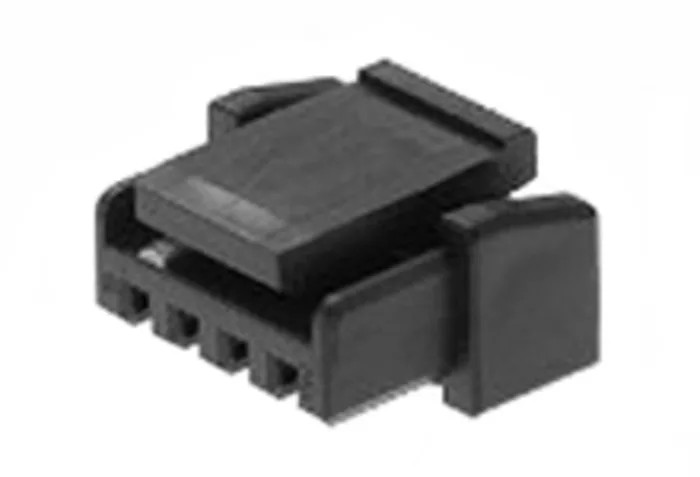

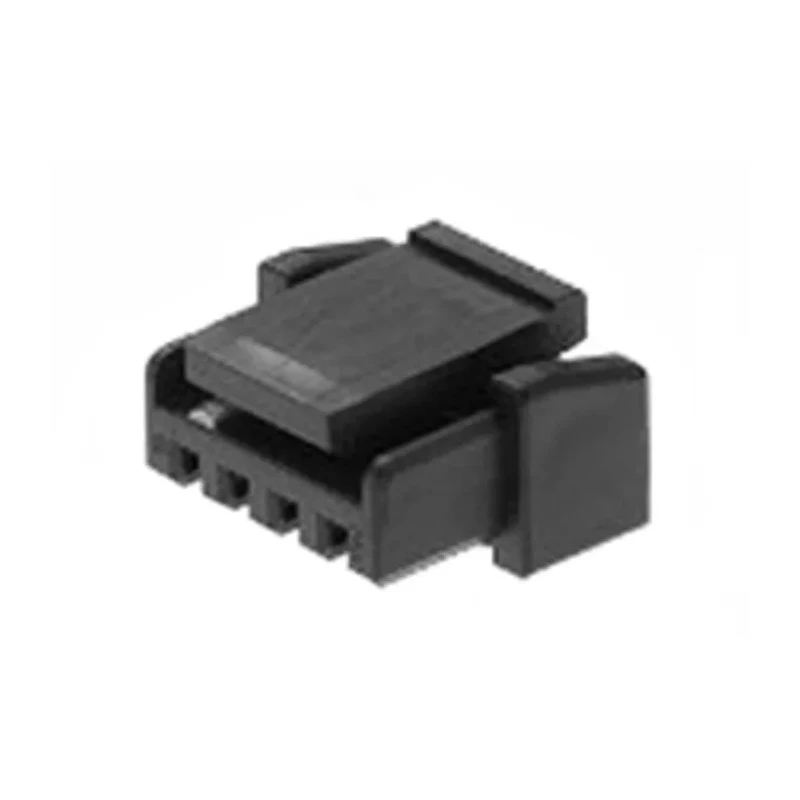

Molex Micro-Lock Plus Female Connector Housing 1.25 mm Pitch 4 Way 1 Row Straight 505565-0401
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 7mm |
| Width | 6.1mm |
| Mount Type | Surface |
| Housing Material | Polyester |
| Series | Micro-Lock Plus |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| For Use With | 505431 Micro-Lock PLUS Terminal |
| Number of Contacts | 4 |
| Connector Gender | Female |
Key Features
- The connector housing has a single row with straight orientation for compact PCB integration.
- Constructed from durable polyester housing material ensuring high-temperature performance.
- Designed for use with 505431 Micro-Lock PLUS Terminal for secure connections.
- Compact dimensions with 7 mm length and 6.1 mm width make it ideal for tight assembly spaces.
- Meets automotive and industrial requirements with sturdy mechanical and electrical reliability.
- Suitable for applications such as automotive steering wheel switches, lighting systems, and industrial automation.
- Color coding aids assembly and identification in manufacturing processes.
- Manufactured in Japan assuring quality and compliance with industry standards.
Product Description
Molex 505565-0401 Micro-Lock Plus Female Connector Housing is a high-quality surface mount connector with 1.25 mm pitch, featuring 4 contacts in a single row with straight orientation. It is engineered for compact and reliable wire-to-board connections in demanding environments.
This connector housing is made of robust polyester material, providing excellent resistance to high temperatures and mechanical stress. The 7 mm length and 6.1 mm width facilitate integration into space-constrained assemblies, making it suitable for automotive and industrial applications.
The product is designed for use with the 505431 Micro-Lock PLUS Terminal, ensuring a secure and positive locking mechanism. Its applications span automotive steering wheels, paddle shift controls, combination switches, and mirror lighting systems. It is also used in consumer electronics such as gaming machines, drones, air conditioners, laser printers, and vacuum cleaners, demonstrating versatility across industries.
Color coding features of the connector housing assist rapid identification and assembly on production lines. Manufactured in Japan, this connector complies with high-quality standards, ensuring reliability and longevity.
The connector housing has a single row straight configuration with 4 contacts. Polyester material housing provides mechanical and thermal durability. 1.25 mm pitch supports compact electronic component design. Surface mount type suitable for PCB integration.
Ideal for automotive and industrial applications requiring dependable electrical connections. Compatible with Micro-Lock PLUS terminal systems. Manufactured in Japan for high reliability and quality assurance. Color coded housing aids in assembly and error reduction.
Choose Molex Micro-Lock Plus Female Connector Housing for precise and reliable electronic component connections in automotive, industrial automation, consumer devices, and more. Browse further in Electronics Components and Connector Housing categories at EnvMart for complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 1.25 mm, designed for compact electronic component integration.
This model features 4 contacts in a single row configuration, suitable for various applications.
The connector housing has a length of 7 mm and a width of 6.1 mm, making it ideal for tight assembly spaces.
The housing is constructed from durable polyester, providing resistance to high temperatures and mechanical stress.
This connector housing is designed for surface mount applications, facilitating PCB integration.
It is designed for use with the 505431 Micro-Lock PLUS Terminal, ensuring secure connections.
This model is suitable for automotive applications such as steering wheel switches and lighting systems, as well as industrial automation.
The orientation of this connector housing is straight, allowing for straightforward integration into assemblies.
This connector housing is manufactured in Japan, ensuring compliance with high-quality standards.
Yes, it includes color coding to aid in assembly and identification during manufacturing processes.
This connector housing is part of the Micro-Lock Plus series, designed for reliable wire-to-board connections.
The connector housing is female, designed to accommodate corresponding male terminals for secure connections.
