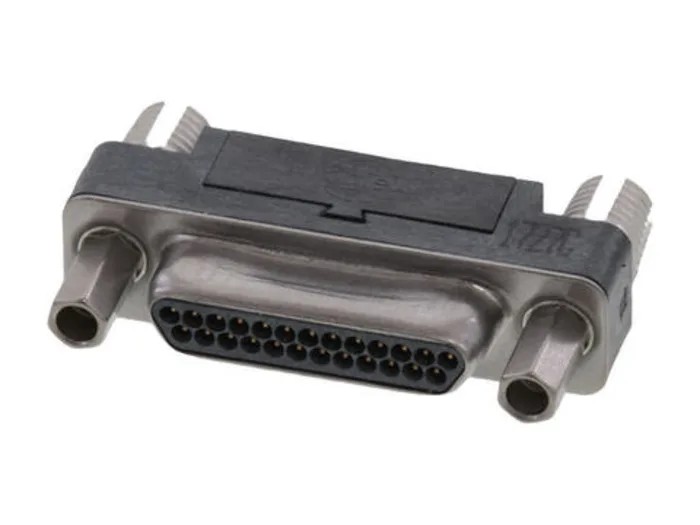

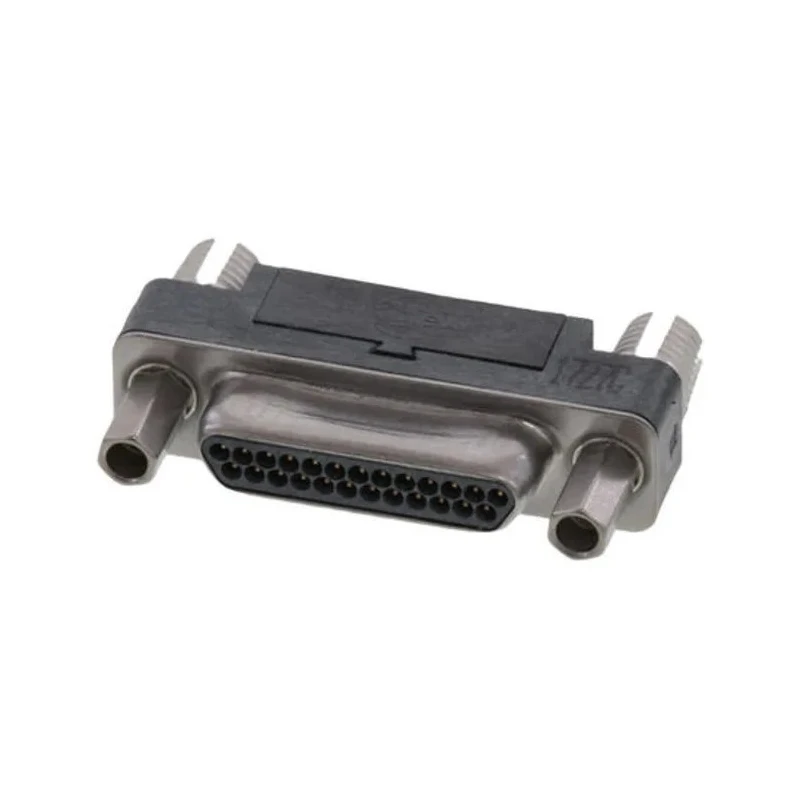

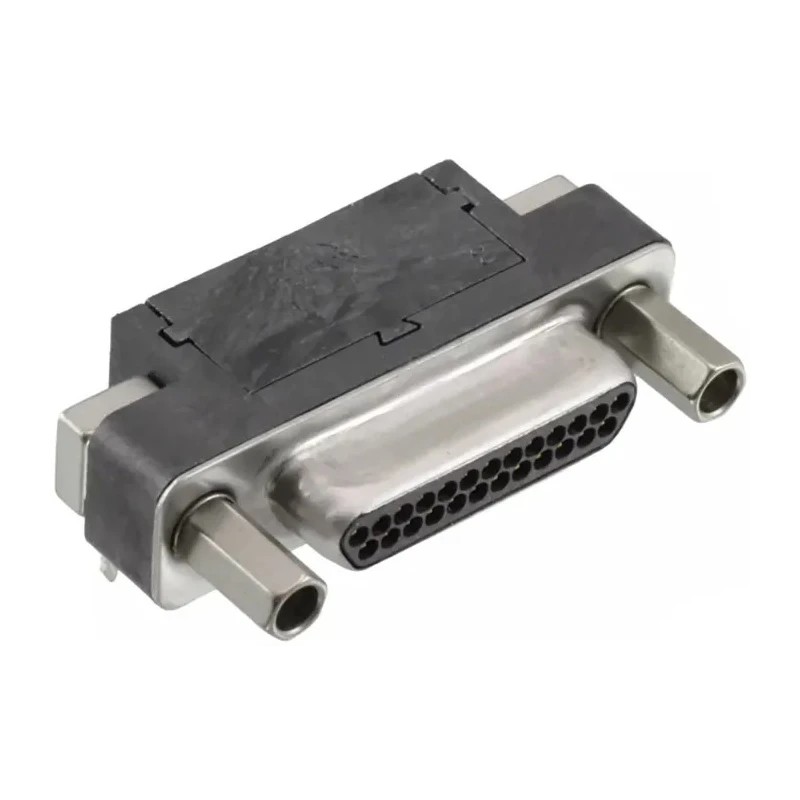

Molex 25 Way Vertical Micro-D PCB Connector Male, 1.27 mm Pitch, 350V AC, 1A, Liquid Crystal Polymer 836149016

Molex 836149016 25 Way Vertical Micro-D PCB Connector Male is a compact, robust solution designed for advanced electronics needing high-density connections. With its Micro-D form factor and 1.27 mm pitch, it is engineered to handle demanding industrial, automation, and commercial applications, where space efficiency and reliable performance are critical.

This connector features 25 gold-plated copper alloy contacts housed in durable liquid crystal polymer, providing superior conductivity and corrosion resistance while remaining resilient in environments with wide temperature extremes. Its vertical mounting orientation allows for optimal PCB use, especially in projects with limited board real estate.

The through-hole solder termination method ensures secure and stable attachment to PCBs, supporting reliable signal integrity. The connector is rated for operational voltages up to 350V AC and a maximum current of 1A, catering to various low- and medium-voltage requirements found in both automation and electronic control devices.

Withstanding temperatures from -40°C to +125°C, this connector is suitable for extreme industrial conditions. It is designed to endure up to 500 mating cycles, making it ideal for installations where repeated connections and disconnections may occur.

Applications include industrial automation, mechanical systems, compact electronics hardware, and industrial control systems that require durable connections for data or signal transmission. Its high-density Micro-D design offers four times the density of standard D-Sub connectors, providing a robust, space-saving alternative for modern data applications.

Provides 25 contacts for versatile data and signal transmission. Vertical mounting enables space-saving PCB integration. Gold plated copper alloy contacts ensure robust conductivity and corrosion resistance. Rated for 350V AC operation and a maximum current of 1A.

Constructed with liquid crystal polymer housing for durability and electrical insulation. Through hole solder termination method enhances secure PCB attachment. Designed to withstand operating temperatures from -40°C to +125°C.

Reliable for up to 500 mating cycles, offering longevity in demanding environments. Ideal for automation, industrial control, and compact electronics where high density is required. Browse the Molex D-Sub Connector category on EnvMart for more solutions meeting industrial, automation, and electronics application requirements.
