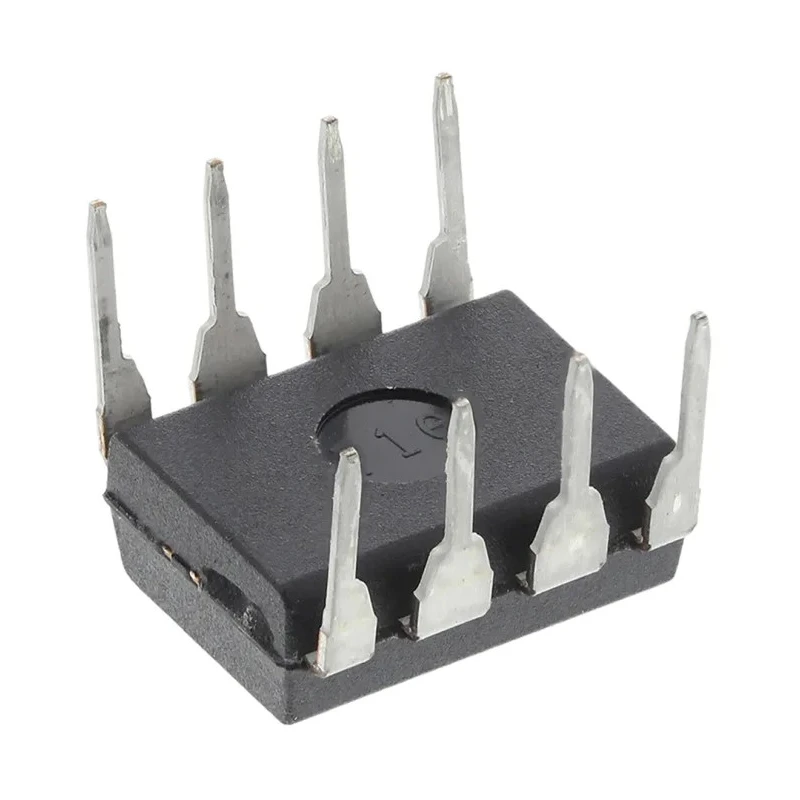

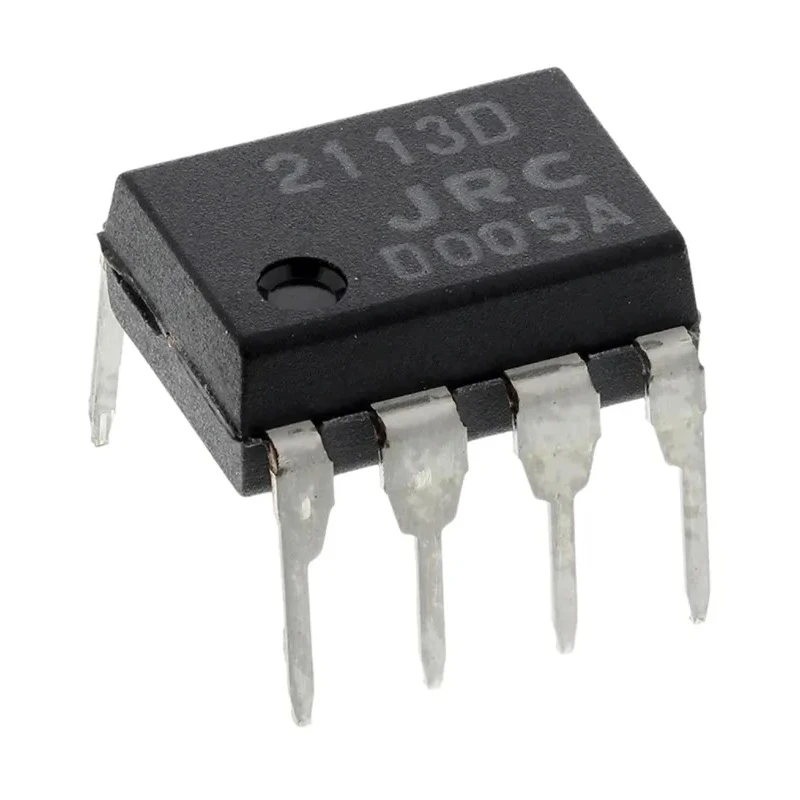

Nisshinbo Micro Devices Operational Amplifier 8-Pin PDIP, 0.25W Output Power NJM2113D

Nisshinbo Micro Devices NJM2113D is a high-quality operational amplifier optimized for audio amplification applications. Featuring a Class A-B amplifier class, it delivers 0.25W output power suitable for speaker systems and other audio amplification needs. The device uses a through-hole mounting type with an 8-pin PDIP package, allowing easy integration into various PCB designs.

This amplifier operates efficiently within a supply voltage range from 3V minimum up to 15V maximum. It works in a wide temperature range of -20°C to 75°C, making it reliable for industrial and commercial electronics environments. Designed for single channel use, the NJM2113D provides precise amplification with stable performance.

The amplifier’s compact form factor with 8.8mm length, 6.4mm width, and 4.19mm height ensures minimal space usage on circuit boards. The device does not comply with any automotive standards and is not certified for specific industry approvals, focusing instead on general-purpose audio amplification applications.

Class A-B amplifier providing efficient audio output. Package type PDIP with through-hole mount. Operating voltage from 3V to 15V suits a range of electronic circuits. Robust operation over a broad temperature range (-20°C to 75°C).

Compact and easy to mount 8-pin PDIP package. Perfect for speaker amplifier circuits and audio devices. Single channel design for straightforward integration.

This Operational Amplifier is ideal for use in industrial, commercial, and laboratory electronics projects requiring reliable audio amplification. Available for purchase in packs, it enhances manufacturing efficiency by being ready for insertion in automated processes.
