TDK Film Capacitor 470 nF 480V AC 1 kV DC Tab Mount B32656S0474K564

TDK B32656S0474K564 Film Capacitor is a high-quality passive electronic component designed for industrial and electronic applications requiring stable capacitance and high voltage tolerance. This capacitor features 470 nF capacitance and can operate at rated AC voltage of 480 volts and a DC voltage of 1 kilovolt, making it suitable for power electronics, filtering, and signal processing uses.

The capacitor uses advanced wound film technology with an internal series connection that provides excellent pulse strength and reliable contact, minimizing inductance and enhancing performance. It is housed in a plastic case sealed with epoxy resin conforming to UL 94 V-0 flame retardant standards, enhancing safety and durability in harsh environments.

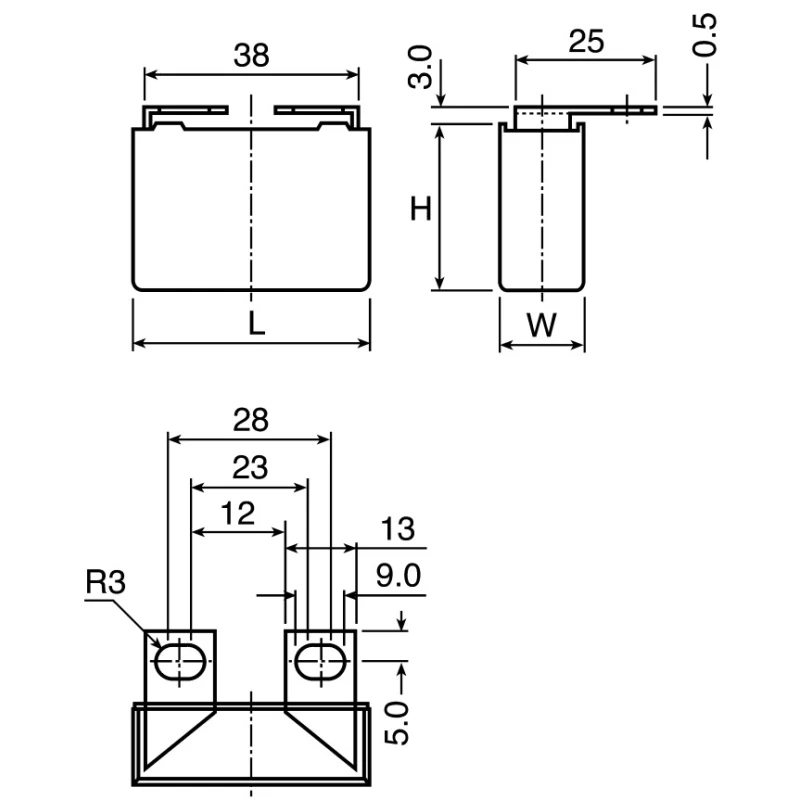

The device is optimized for tab mounting with a lead pitch of 12 mm and two pins, enabling secure and easy PCB assembly in both automated and manual processes. With a compact size of 42 mm length, 14 mm width, and 25 mm height, it fits well into limited space on electronic boards.

Operating temperature up to 100°C guarantees reliable operation in industrial, laboratory, manufacturing, and power supply environments. Compliance with RoHS and UL approvals assures environmental safety and adherence to international quality norms.

Rated AC voltage: 480V ac for industrial power compatibility. Rated DC voltage: 1kV dc to withstand high voltage applications. Capacitance of 470nF for stable filtering and decoupling functions. Plastic molded case with epoxy resin sealing for flame retardancy.

Lead pitch: 12 mm with 2 pins for secure mounting. Compact dimensions of 42 x 14 x 25 mm for space-efficient design. High pulse strength and very low inductance due to internal series construction. Applicable in electronic components assemblies, power electronics, and control circuits.

TDK Film Capacitors like model B32656S0474K564 are widely used across commercial and industrial sectors to improve power quality and reliability of electronic devices and machinery. This capacitor is ideal for engineers and technicians designing robust, long-lasting electronic systems.
