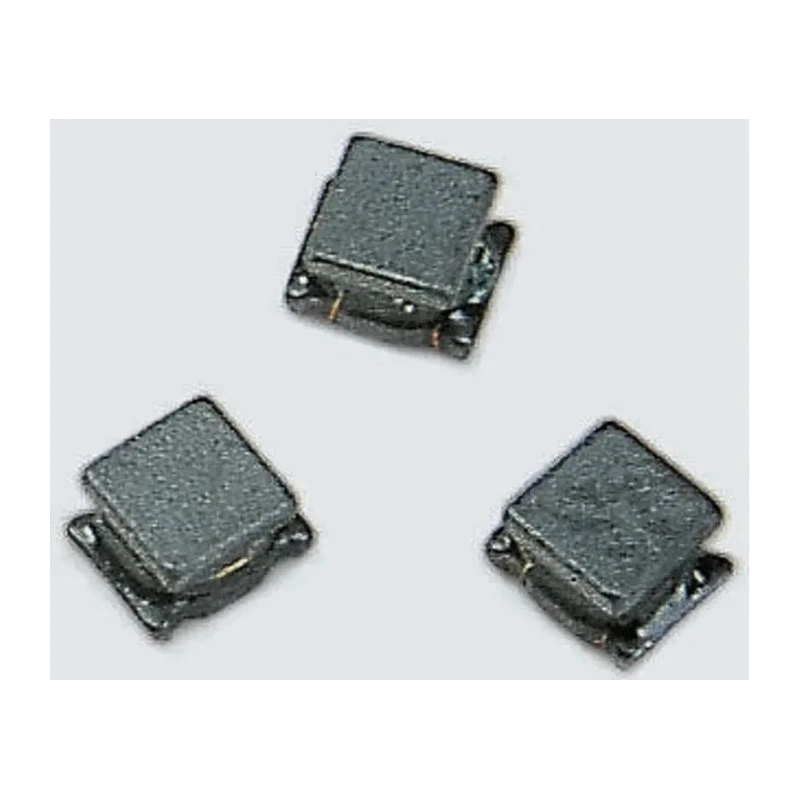

Murata Wirewound Surface Mount Inductor 1210 Case 560 μH ±10 % 60 mA Idc LQH32CN561K23L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 3.2mm |
| Model | LQH32CN561K23L |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 560μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 60mA |
| Pin Count | 2 |
| Maximum DC Resistance | 22Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Wirewound |
Key Features
- High-quality wirewound construction with ferrite core ensures low DC resistance and stable performance.
- Maximum DC current rating of 60 mA suitable for low-power switched mode power supplies.
- Compact 1210 size (3.2 mm length x 2 mm height x 2.5 mm depth) for surface mounting.
- RoHS compliant with solder termination style for reliable PCB assembly.
- Operates in temperature range from -40°C to 85°C, providing excellent thermal stability.
- Maximum self resonant frequency of 5 MHz optimized for filtering and signal conditioning.
- Embossed tape packaging facilitates automated PCB manufacturing processes.
- Constructed in Japan, ensuring quality manufacturing standards.
Product Description
Murata LQH32CN561K23L is a wirewound surface mount inductor designed for compact electronic components requiring stable inductance and low losses. The 1210 case size and solder terminations make it ideal for automated PCB mounting within consumer electronics, industrial instrumentation, and power supply circuits.
This inductor features a 560 μH inductance with a tolerance of ±10%, providing reliable performance in filtering, oscillating, and energy storage applications. Its maximum DC current rating of 60 mA and low DC resistance of 22 Ω minimize voltage drops and power losses, essential for efficient power management.
The operating temperature range from -40°C to 85°C combined with the high quality wirewound ferrite core construction ensures durability and stability under harsh environmental conditions often encountered in industrial and automotive systems. Furthermore, the component complies with RoHS standards and is delivered on embossed tape packaging for seamless integration into manufacturing lines.
High quality wirewound ferrite core construction for low resistance and temperature stability. Compact 1210 case size (3.2 mm x 2 mm x 2.5 mm) ideal for surface mount PCB assembly. Maximum current rating of 60 mA suitable for low power switch mode power supplies.
Wide temperature operation from -40°C to 85°C ensures reliable use in industrial environments. Maximum self resonant frequency of 5 MHz enhances filtering and noise reduction. Solder termination style compatible with automated assembly and reflow soldering.
RoHS compliant meeting environmental and safety regulations. Embossed tape packaging optimizes handling for mass production. Manufactured in Japan, ensuring consistent high quality and reliability.
This wirewound Surface Mount Inductor is widely used in electronics manufacturing including power supply filtering, noise suppression, signal conditioning, and RF applications. It suits sectors such as industrial electronics, communications equipment, consumer devices, and automotive systems.
Explore more high quality inductors and electronic components for your PCB design and manufacturing requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 560 μH with a tolerance of ±10%.
This inductor has a maximum DC current rating of 60 mA, making it suitable for low-power switched mode power supplies.
The dimensions of the 1210 case size are 3.2 mm in length, 2 mm in height, and 2.5 mm in depth.
The maximum self-resonant frequency of this model is 5 MHz, which is optimized for filtering and signal conditioning applications.
It operates within a temperature range of -40°C to 85°C, providing excellent thermal stability for various applications.
This inductor features a solder termination style, which is compatible with automated assembly and reflow soldering processes.
Yes, this model is RoHS compliant, meeting environmental and safety regulations.
It has a wirewound construction with a ferrite core, ensuring low DC resistance and stable performance.
The inductor is delivered in embossed tape packaging, which facilitates automated PCB manufacturing processes.
This inductor has a pin count of 2, suitable for surface mount applications.
The maximum DC resistance for this inductor is 22 Ω, which helps minimize voltage drops and power losses.
This model is manufactured in Japan, ensuring consistent quality and reliability standards.
