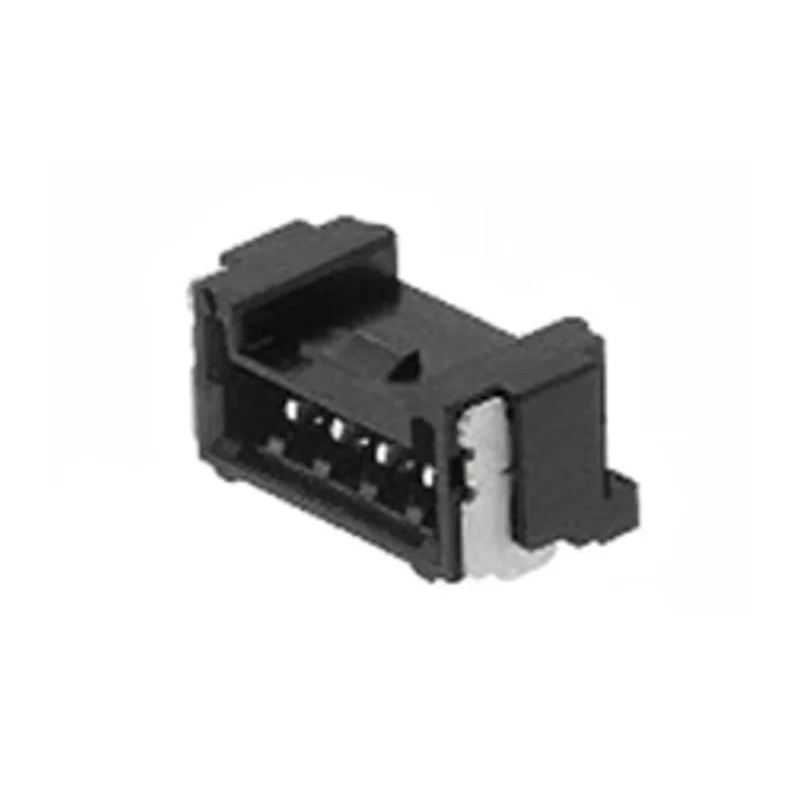

Molex Micro-Lock Plus Series Right Angle Surface PCB Header 4 Contact 1.25 mm Pitch 1 Row Shrouded 505567-0471
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | Micro-Lock Plus |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Series features Micro-Lock Plus design for secure connections.
- Right angle orientation optimizes PCB layout.
- Shrouded, single-row housing made of polyamide for durability.
- Contacts are brass with tin plating ensuring conductivity and corrosion resistance.
- Rated for 1.5A current and 50V voltage.
- Suitable for high-temperature automotive and industrial applications.
- Operating temperature range from -40°C to 105°C.
- Surface mount termination type for efficient PCB assembly.
Product Description
Molex 505567-0471 Micro-Lock Plus Series Right Angle Surface PCB Header is engineered for high-reliability wire-to-board connections in compact applications. Featuring a 1.25 mm pitch and 4 contact points arranged in a single right angle row, this shrouded header ensures secure mating and protection of contacts.
The housing is constructed from durable polyamide material, providing mechanical stability and resistance to high temperatures up to 105°C, making it ideal for automotive uses such as steering wheel controls, paddle shifts, and lighting systems. Brass contacts plated with tin provide excellent electrical conductivity and corrosion resistance while sustaining currents up to 1.5 amperes and voltages up to 50 volts.
This PCB header supports surface mount technology with solder termination and includes design features for easy coloration to aid assembly processes. Its rugged design also suits industrial automation, consumer electronics, white goods, gaming machines, drones, air conditioners, laser printers, and vacuum cleaners. The connector system offers a reliable wire-to-board interface critical for precision electronic manufacturing.
Micro-Lock Plus series with right angle configuration. 1.25 mm pitch with 4 contacts, shrouded single row housing. Brass contacts with tin plating for durability and conductivity. Surface mount solder termination type. Operating temperature: -40°C to 105°C.
Current rating: 1.5 A, voltage rating: 50 V. Ideal for automotive, industrial, and consumer electronics. Compact design with color coding for assembly efficiency. Manufactured in Malaysia ensuring quality standards. Supports applications in steering wheels, shifters, lighting, and more.
Explore more Molex PCB headers and connectors on EnvMart for your precise assembly needs and reliable electronic solutions.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 1.5A and a voltage of 50V.
The pitch size of this PCB header is 1.25 mm.
The housing is made of polyamide, while the contacts are brass with tin plating for conductivity and corrosion resistance.
It operates within a temperature range of -40°C to 105°C.
This unit features 4 contacts arranged in a single row.
It utilizes a surface mount solder termination type for efficient PCB assembly.
Yes, it is designed for high-temperature automotive applications, including steering wheel controls and lighting systems.
The connector is designed with a right angle orientation, optimizing PCB layout.
This model is manufactured in Malaysia.
It supports applications in industrial automation, consumer electronics, and various household devices like air conditioners and laser printers.
It features a wire-to-board connector system, ensuring secure connections between wires and the PCB.
Yes, it includes design features for easy coloration to aid assembly processes.
