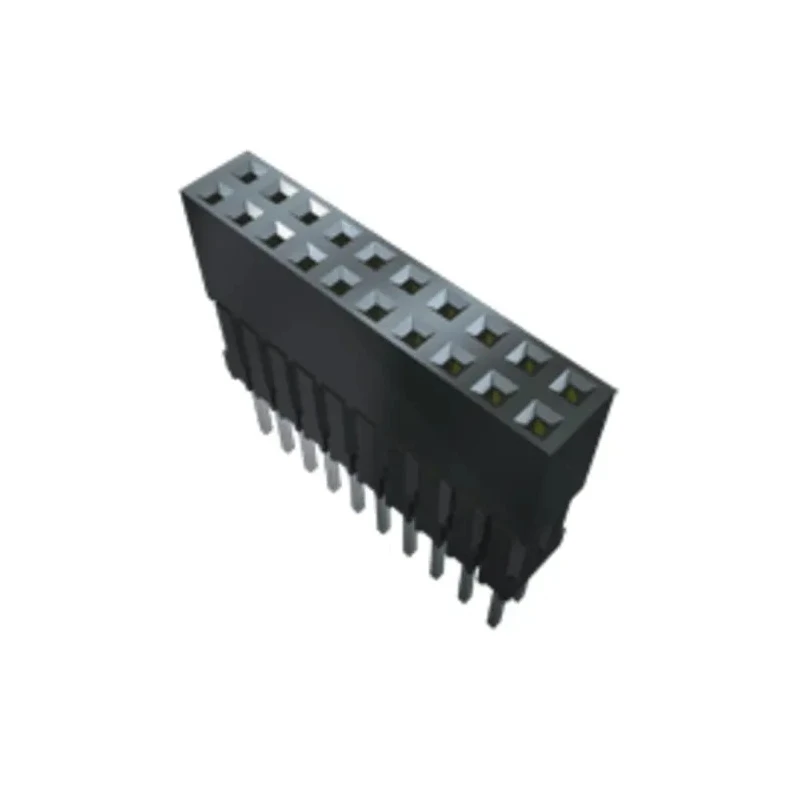

Samtec ESQ Series Straight Through Hole PCB Socket, 16-Contact, 2 Row, 2.54 mm Pitch, 5.2A Current, 550V ESQ-108-14-G-D
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.2A |
| Model | ESQ-108-14-G-D |
| Mount Type | Through Hole |
| Special Features | Standard and low insertion force contacts with .025" (0.635 mm) square tails for PC/104™ applications |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Bronze |
| Series | ESQ |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Connector System | Board-to-Board |
| Contact System | Tiger Buy™ |
Key Features
- Supports a maximum current of 5.2 amperes at 550 volts.
- Constructed with black glass filled polyester housing for durability.
- Features gold-plated bronze contacts for reliable conductivity.
- Designed for through-hole solder termination with a straight orientation.
- Operates reliably between -55°C and 125°C temperature range.
- Includes Tiger Buy™ contact system for enhanced performance.
- Compatible with PC/104™ applications featuring standard and low insertion force contacts.
- Row pitch and general pitch is 2.54 mm (0.100 inches) for precise alignment.
Product Description
Samtec ESQ-108-14-G-D is a high-quality PCB Socket from the ESQ Series designed for straight through hole mounting. This 16-contact, 2-row socket with a 2.54 mm pitch supports a current rating of 5.2 amperes and voltage rating up to 550 volts, making it suitable for various electronic board-to-board interconnection applications.
The socket housing is molded from black glass filled polyester, providing excellent mechanical strength and thermal stability across a wide temperature range from -55°C to 125°C. The bronze contacts are gold-plated, enhancing contact reliability and corrosion resistance, and employ the Tiger Buy™ contact system renowned for consistent electrical performance.
Termination is via through-hole soldering with a straight orientation, ensuring robust solder joints and ease of assembly on printed circuit boards. The ESQ-108-14-G-D socket is specially designed for PC/104™ applications, supporting single, double, and triple row configurations up to 108 pins. It incorporates standard and low insertion force contacts with .025" (0.635 mm) square tails for effective mechanical and electrical connections.
Supports a maximum current of 5.2 amperes at 550 volts. Black glass filled polyester housing offers durability. Gold-plated bronze contacts for reliable conductivity. Through-hole solder termination with straight orientation.
Operating temperature range from -55°C to 125°C. Tiger Buy™ contact system for enhanced electrical performance. Designed compatible for PC/104™ applications with standard and low insertion force contacts. Precision pitch of 2.54 mm ensures accurate board-to-board alignment.
This product is ideal for use in industrial electronics, telecommunications, computing, aerospace, and other sectors requiring reliable PCB connectivity solutions. Manufactured in the United States, it meets professional standards for electronic component quality and performance.
Browse the Electronics & Electricals category for more PCB Sockets and connectors suitable for various industrial and laboratory equipment needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this socket is 5.2 amperes.
This socket can handle a voltage of up to 550 volts.
The pitch of this socket is 2.54 mm (0.100 inches).
The housing is made from black glass filled polyester, and the contacts are made of bronze with gold plating.
It operates reliably within a temperature range of -55°C to 125°C.
The socket features through-hole solder termination with a straight orientation.
It includes standard and low insertion force contacts with .025" (0.635 mm) square tails, suitable for PC/104™ applications.
This socket has a total of 16 contacts arranged in 2 rows.
Yes, it is designed for board-to-board interconnection applications.
This socket utilizes the Tiger Buy™ contact system for enhanced electrical performance.
This product is manufactured in the United States.
It is compatible with PC/104™ applications and is suitable for use in industrial electronics, telecommunications, and computing.
