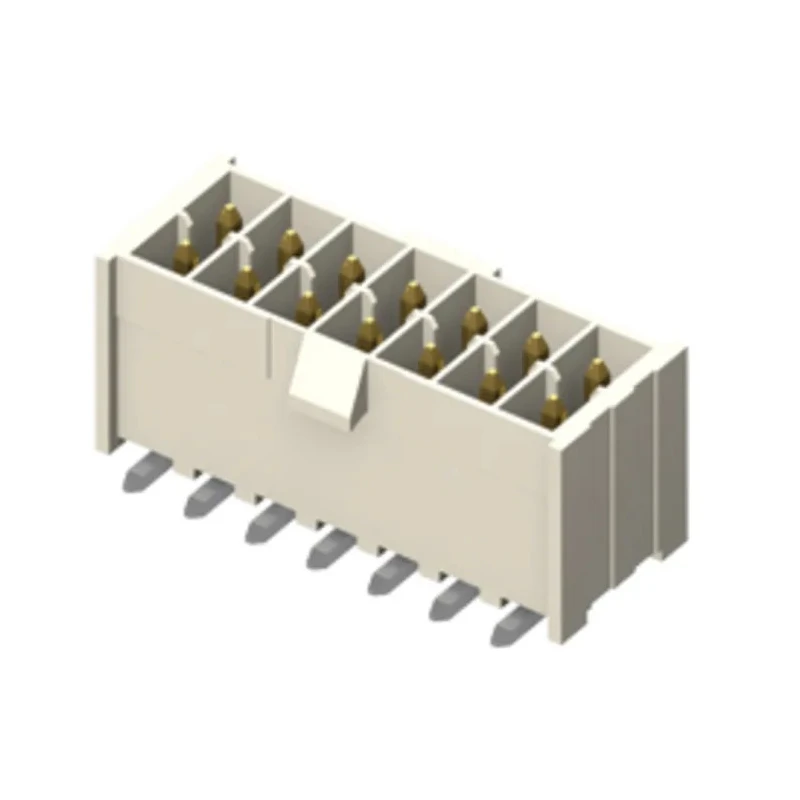

Samtec IPL1 Series Straight Through Hole 20 Contact Shrouded PCB Header 2.54 mm Pitch IPL1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 954V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.8A |
| Model | IPL1 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | IPL1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features 20 male contacts arranged in 2 rows with a 2.54 mm pitch.
- Constructed of durable liquid crystal polymer housing for high performance.
- Phosphor bronze contacts plated with gold ensure excellent conductivity and corrosion resistance.
- Supports a current rating of 3.8A at 95°C for reliable electrical performance.
- Designed for through hole mounting with a straight orientation for easy PCB integration.
- Shrouded design enhances protection and prevents accidental contact.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Rated for voltage up to 954V for versatile applications.
Product Description
Samtec IPL1 Series Straight Through Hole Shrouded PCB Header IPL1 features a robust design ideal for electronic component interconnectivity. This through hole PCB header includes 20 gold-plated male contacts arranged in two rows with a standard 2.54 mm pitch. The housing is made from liquid crystal polymer, assuring high mechanical strength and temperature resistance.
Engineered to support a current of up to 3.8A at 95°C and withstand voltage up to 954V, it delivers reliable electrical performance in demanding industrial and manufacturing environments. The shrouded contact design provides enhanced safety by preventing inadvertent contact during operation and handling.
The device operates effectively across a wide temperature span from -55°C to 125°C, making it suitable for diverse industrial conditions. Its solder termination type ensures a solid and durable connection to PCBs.
This PCB header caters to applications including industrial electronic assemblies, power supply systems, instrumentation, and wire-to-board connections. Its straight orientation and through hole mounting facilitate seamless integration into standard PCB layouts.
Features 20 male contacts arranged in 2 rows with a 2.54 mm pitch. Constructed of durable liquid crystal polymer housing for high performance. Phosphor bronze contacts plated with gold ensure excellent conductivity and corrosion resistance.
Supports a current rating of 3.8A at 95°C for reliable electrical performance. Designed for through hole mounting with a straight orientation for easy PCB integration. Shrouded design enhances protection and prevents accidental contact.
Operates reliably in temperatures ranging from -55°C to 125°C. Rated for voltage up to 954V for versatile applications. Termination type is solder, providing secure mechanical and electrical connection. Suitable for industrial, electronics manufacturing, and other PCB assembly applications.
Explore a broad selection of Samtec connectors and PCB components on EnvMart for your electronic development and production needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3.8A at 95°C, ensuring reliable electrical performance.
It is rated for a maximum voltage of 954V, making it suitable for various applications.
The contacts are arranged with a pitch of 2.54 mm, which is a standard size for PCB headers.
This unit features 20 male contacts arranged in 2 rows, facilitating effective connectivity.
The housing is constructed from liquid crystal polymer, providing high mechanical strength and temperature resistance.
It uses a solder termination type, ensuring a secure mechanical and electrical connection to PCBs.
It operates reliably in temperatures ranging from -55°C to 125°C, suitable for diverse industrial conditions.
The contacts are designed in a straight orientation for easy integration into standard PCB layouts.
This model is suitable for applications including industrial electronic assemblies, power supply systems, and wire-to-board connections.
The contacts are made of phosphor bronze and are plated with gold to ensure excellent conductivity and corrosion resistance.
The country of origin for this model is India.
The shrouded design provides enhanced protection by preventing accidental contact during operation and handling.
