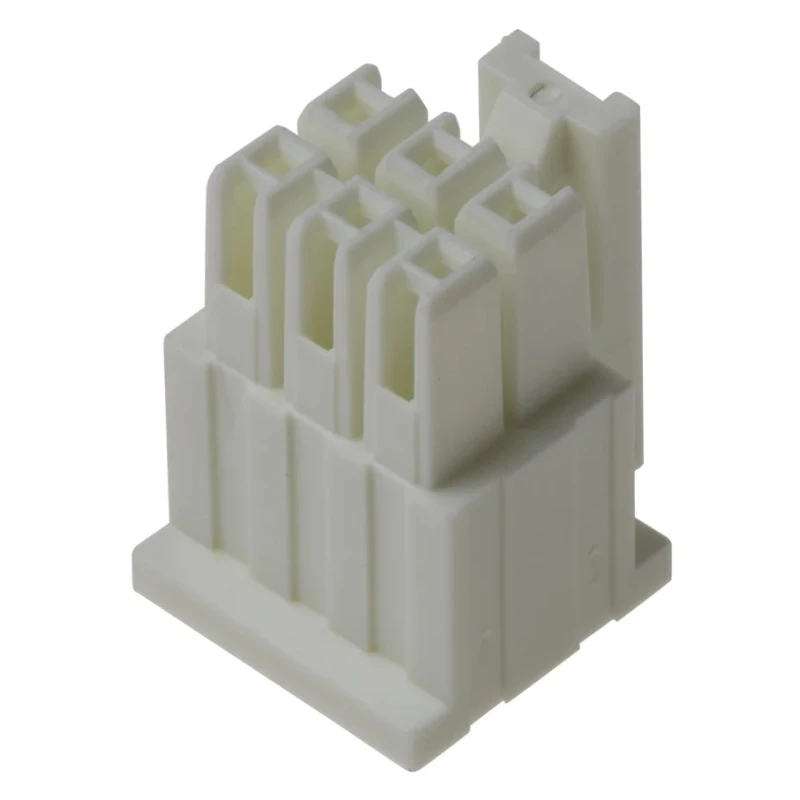

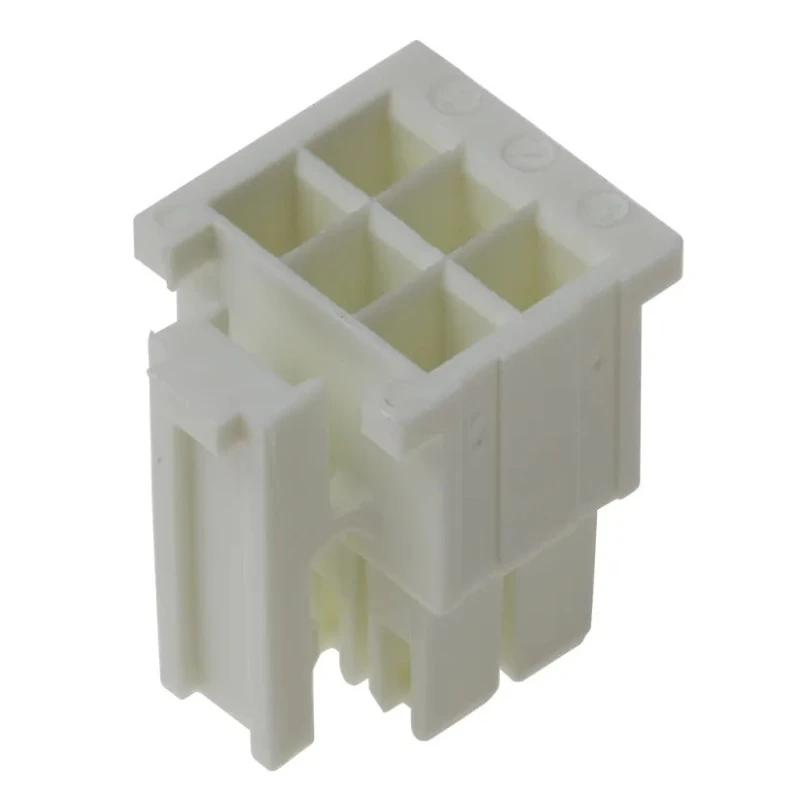

Samtec IPD1 Female Crimp Connector Housing 2.54 mm Pitch 6 Way 2 Row Straight

Free Delivery in India | Lowest Global Shipping Charges

Samtec IPD1 Female Crimp Connector Housing 2.54 mm Pitch 6 Way 2 Row Straight

Name: Samtec IPD1 Female Crimp Connector Housing 2.54 mm Pitch 6 Way 2 Row Straight
Brand: Samtec
SKU: 216123
Price: 0.75 USD
Availability: InStock



Category Connector Housing Brand Samtec Condition New

Specifications

Country of Origin	United States
Brand	Samtec
Orientation	Straight
Length	9.02mm
Model	IPD1
Width	8.97mm
Mount Type	Cable
Housing Material	Nylon
Series	IPD1
Number of Rows	2
Pitch	2.54mm
For Use With	FFC Connectors, IDC Connectors
Number of Contacts	6
Connector Gender	Female

Key Features

Constructed from durable nylon for reliable insulation and mechanical strength.
Features a straight orientation for easy cable mounting.
Compatible with FFC and IDC connectors for versatile use.
Compact dimensions of 9.02 mm length and 8.97 mm width facilitate space-efficient applications.
Designed as a polarized system ensuring secure mating and alignment.
Suitable for applications requiring 2 row, 6 way connector configurations.
No specific industry standards or approvals are cited for this housing.

Product Description

Samtec IPD1-03-D-K Female Crimp Connector Housing is a high-quality cable mount connector featuring a 2.54 mm pitch and 6 contacts arranged in a 2-row straight configuration. The housing is made of robust nylon material providing excellent insulation and mechanical durability.

This connector housing is designed to be polarized, supporting single or double row assemblies and featuring metal or plastic latches to ensure secure connections.

Its compact size with a length of 9.02 mm and width of 8.97 mm makes it suitable for densely populated electronic circuits and assemblies requiring precise and reliable wire-to-board connections.

The housing is designed to interface with Flexible Flat Cables (FFC) and Insulation Displacement Connectors (IDC), making it highly versatile for electronic applications including signal, data, and power transmission.

Constructed from durable nylon for reliable insulation and mechanical strength. Features a straight orientation for easy cable mounting. Compatible with FFC and IDC connectors for versatile use. Compact dimensions support space-efficient design.

Polarized design ensures proper mating and alignment. Supports 6 contacts in 2 rows. Manufactured to ensure consistent high quality. Explore more Connector Housings and cable mounting solutions in the Connectors category at EnvMart for a wide range of compatible products.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Samtec IPD1 Female Crimp Connector Housing features a 2.54 mm pitch and accommodates 6 contacts arranged in a 2-row configuration.

This connector housing is constructed from durable nylon, providing reliable insulation and mechanical strength.

The connector housing has a straight orientation, which facilitates easy cable mounting.

It is compatible with Flexible Flat Cables (FFC) and Insulation Displacement Connectors (IDC), allowing for versatile applications.

The housing has compact dimensions of 9.02 mm in length and 8.97 mm in width, suitable for space-efficient applications.

The polarized design ensures secure mating and alignment, which helps prevent incorrect connections during assembly.

This model is designed for cable mounting, making it suitable for various electronic applications.

The Samtec IPD1 Female Crimp Connector Housing is manufactured in the United States.

This connector housing belongs to the IPD1 series, which features a variety of connector solutions.

The connector housing is designed as a female crimp connector, suitable for specific applications requiring this configuration.

Yes, its compact size makes it suitable for densely populated electronic circuits and assemblies requiring precise connections.

It is suitable for applications involving signal, data, and power transmission due to its versatile design and compatibility with FFC and IDC connectors.
