SMC Pneumatic Control Valve Pilot/Spring Metric 5 Ports Die Cast Aluminium SYJ5000
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 0.7 Mpa |
| Model | SYJ5000 |
| Mount Type | Free |
| Series | SYJ5000 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Thread Size | M5 x 0.8 |
| Port Type | Manifold |
| Port Size | Metric M5 x 0.8 |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Pilot/Spring |
| Maximum Flow Rate | 129L/min |
| Connection Thread Standard | Metric |
| Minimum Pilot Pressure | 0.15MPa |
| Valve Function | NO, NC |
| SMC 5/2 Pneumatic Control Valve - Pilot/Pilot Metric M5 VZA3000 SeriesBrand | SMC |
Key Features
- Operates at maximum pressure of 0.7 MPa for reliable performance.
- Manifold port type with Metric M5 x 0.8 connection thread standard.
- Designed for a maximum flow rate of 129 L/min, suitable for efficient pneumatic control.
- Includes normally open (NO) and normally closed (NC) valve functions for versatile applications.
- Body constructed from die cast aluminium to ensure durability and corrosion resistance.
- Operates within a temperature range of -10°C to 50°C to support varied industrial environments.
- Pilot/spring actuation type with minimum pilot pressure of 0.15 MPa for precise control.
- Free mount type providing flexible installation options in pneumatic systems.
Product Description

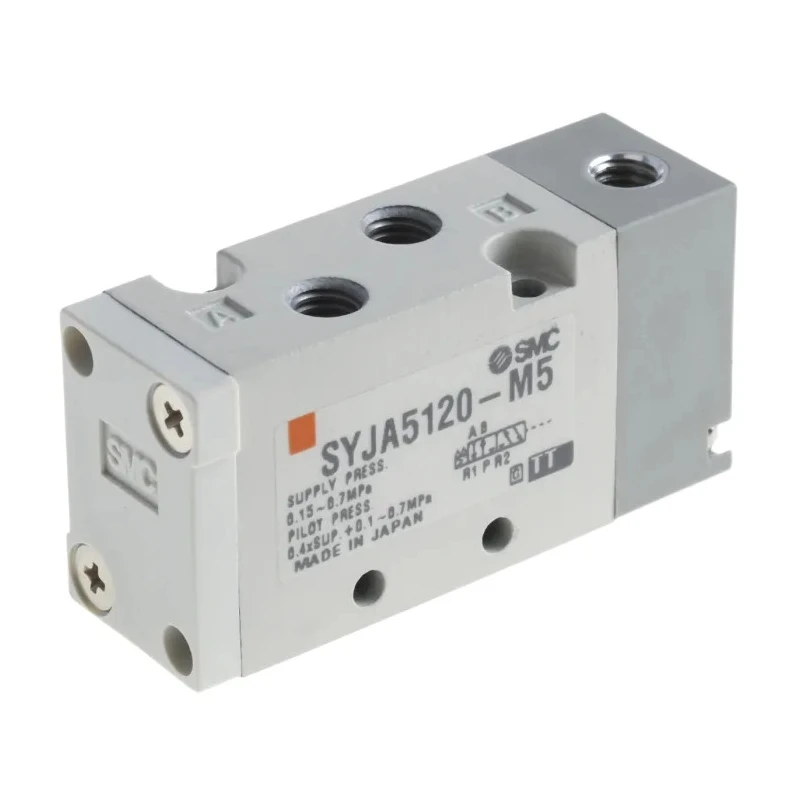

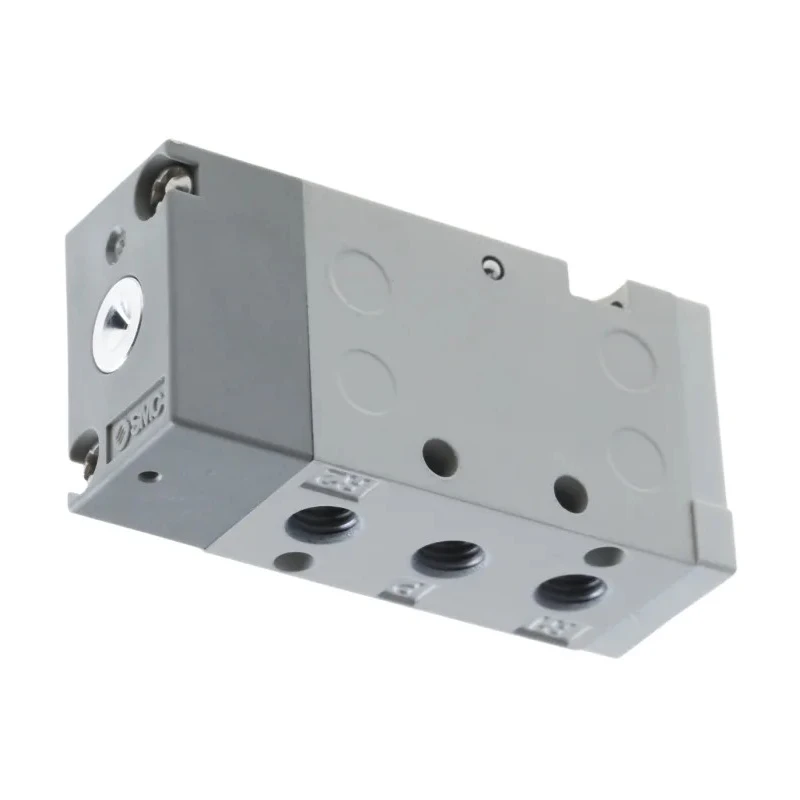

SMC SYJA5120-M5 Pneumatic Control Valve from the SYJ5000 Series features pilot/spring actuation with a die cast aluminium body suitable for industrial pneumatic control applications. Designed for manifold port type connections with metric M5 x 0.8 threads, this valve supports up to 5 ports ensuring efficient flow control.
The valve operates at a maximum pressure of 0.7 MPa and a maximum flow rate of 129 L/min, offering robust performance in demanding environments. It supports both normally open (NO) and normally closed (NC) functions with minimum pilot pressure requirements of 0.15 MPa, delivering precise and reliable actuation.
Its operational temperature range spans from -10°C to 50°C, accommodating various industrial and manufacturing conditions. The valve's copper-free design helps prevent contamination in sensitive pneumatic circuits ensuring extended service life.
Low power consumption allows these valves to be operated directly via PLCs, reducing system costs and energy usage. The free mount type design facilitates flexible installation onto sub plates or base mounted manifolds, enhancing system configurability and space efficiency.
The SYJ5000 series is suitable for applications in industrial automation, fluid power systems, pneumatic controls in manufacturing plants, laboratory and HVAC pneumatic systems among others. The valve's robust construction and advanced features support effective and reliable pneumatic control device implementations.
Operates at maximum pressure of 0.7 MPa for reliable performance. Manifold port type with Metric M5 x 0.8 connection thread standard. Designed for a maximum flow rate of 129 L/min, suitable for efficient pneumatic control.
Includes normally open (NO) and normally closed (NC) valve functions for versatile applications. Body constructed from die cast aluminium to ensure durability and corrosion resistance. Operates within a temperature range of -10°C to 50°C to support varied industrial environments.
Pilot/spring actuation type with minimum pilot pressure of 0.15 MPa for precise control. Free mount type providing flexible installation options in pneumatic systems. Copper-free design to prevent contamination and enhance longevity.
Low power consumption enables direct operation by PLC, reducing energy costs. Explore the full range of SMC pneumatic control valves and related Pneumatic Solenoid Valves on EnvMart for your industrial automation and fluid power needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 0.7 MPa.
It is designed for a maximum flow rate of 129 L/min.
This model features pilot/spring actuation.
The valve operates within a temperature range of -10°C to 50°C.
It has a Metric M5 x 0.8 connection thread standard.
This valve is designed with 5 ports.
It includes normally open (NO) and normally closed (NC) valve functions.
The body is constructed from die cast aluminium, ensuring durability and corrosion resistance.
The minimum pilot pressure for operation is 0.15 MPa.
It features a free mount type design, allowing flexible installation options.
This valve is suitable for applications in industrial automation, fluid power systems, and pneumatic controls in manufacturing and HVAC systems.
