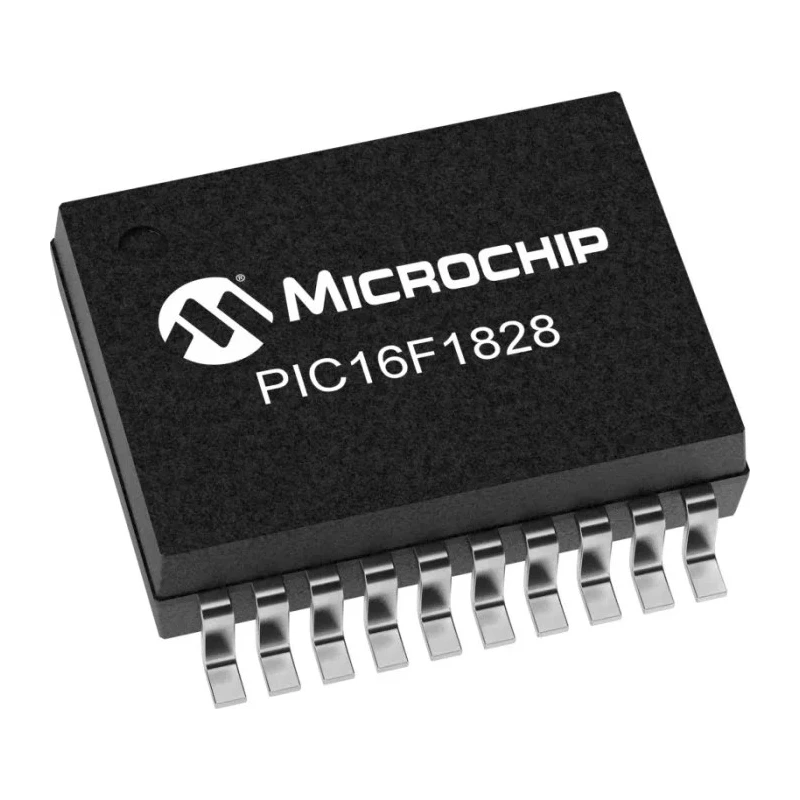

Microchip 8 Bit PIC Microcontroller PIC16F1828T-I/SS, 32 MHz Clock, 7kB FLASH, 20 Pin SSOP

Microchip PIC16F1828T-I/SS is an advanced 8-bit PIC microcontroller featuring a 32 MHz maximum clock frequency and 7 kB of FLASH program memory. Designed on the PIC16F enhanced mid-range core, it suits a wide range of embedded applications requiring robust performance and low power consumption.

This device supports a voltage supply range from 1.8 V to 5.5 V, enabling operation in diverse environments. It includes 256 bits of RAM, 256 bytes of data EEPROM, and 18 programmable I/O pins, providing extensive connectivity options for peripherals and sensors.

The microcontroller includes 12 channels of 10-bit Analog-to-Digital Converters (ADCs), two analog comparators, and a 5-bit digital-to-analog converter (DAC) with selectable positive and negative references. The device’s 5 timers and RISC architecture provide enhanced control and efficient execution of code instructions.

Operating temperature ranges from -40°C to 125°C make it suitable for automotive and industrial environments. The 20-pin SSOP surface mount package allows for compact circuit designs in space-constrained applications.

Its embedded hardware stack supports up to 16 levels, with a 49-instruction set delivering up to 8 MIPS processing speed. The microcontroller’s low operating currents including 48 µA/MHz and ultra-low sleep mode current of 20 nA allow for energy-efficient designs.

Operates up to 32 MHz clock frequency providing fast processing. Includes 7 kB of FLASH memory and 256 bit RAM for program and data storage. Offers 18 programmable I/O lines for flexible interfacing. Contains 12 10-bit ADC channels and 2 analog comparators for sensor inputs.

Incorporates a 5-bit DAC for analog output requirements. Works within 1.8 V to 5.5 V supply voltage range for broad compatibility. Wide operating temperature (-40°C to 125°C) for industrial and automotive use. Compact 20-pin SSOP package for small form factor designs.

Implements RISC instruction set for optimized code performance. Five onboard timers support multiple timing functions.

This microcontroller is ideal for automated control systems, consumer electronics, instrumentation, and other embedded system applications requiring reliable and fast processing in a small footprint. Explore more Microchip Microcontrollers for varied needs on EnvMart.
