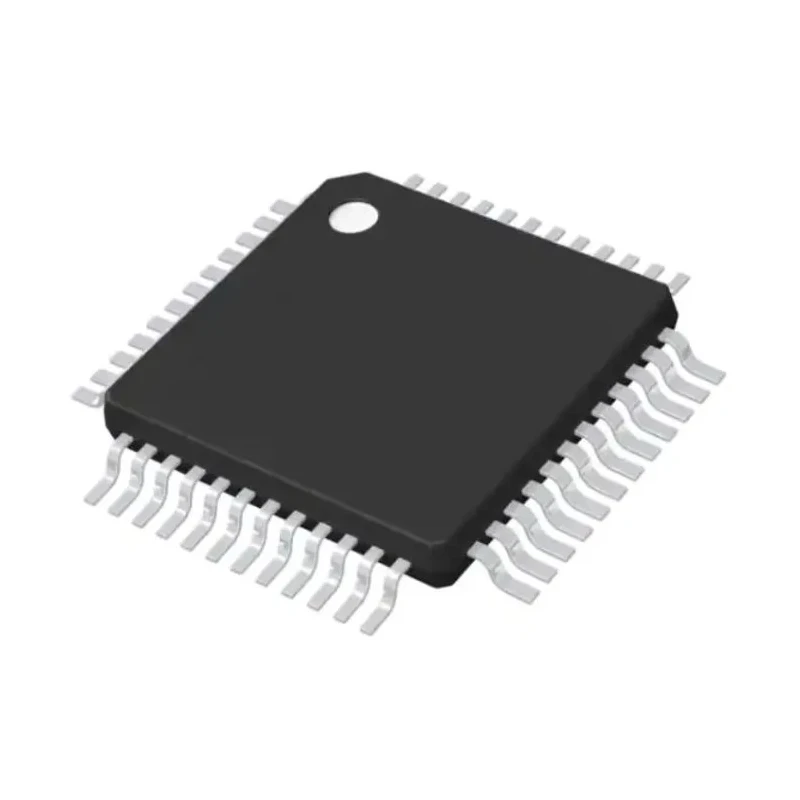

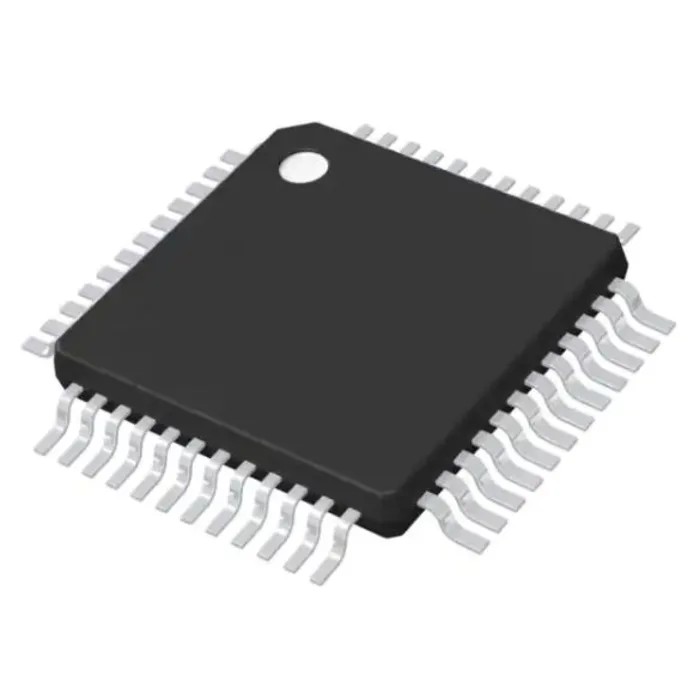

STMicroelectronics STM32L010C6T6 32 bit ARM Cortex M0+, STM32L0 Microcontroller, 32 MHz Clock, 32kB FLASH, 48-Pin LQFP

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics STM32L010C6T6 32 bit ARM Cortex M0+, STM32L0 Microcontroller, 32 MHz Clock, 32kB FLASH, 48-Pin LQFP

Name: STMicroelectronics STM32L010C6T6 32 bit ARM Cortex M0+, STM32L0 Microcontroller, 32 MHz Clock, 32kB FLASH, 48-Pin LQFP
Brand: STMicroelectronics
SKU: 322668
Price: 4.16 USD
Availability: InStock



Category Microcontroller Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Length	7mm
Model	STM32L010C6T6
Width	7mm
Mount Type	Surface
Series	STM32L0
Maximum Operating Temperature	175°C
Package Type	LQFP
Minimum Operating Temperature	-55°C
Ram size	8kB
Interface Type	I2C/SPI
Standards/Approvals	RoHS3, REACH
Pin Count	48
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	1.8V
Device Core	ARM Cortex M0+
Program Memory Size	32kB
Maximum Clock Frequency	32MHz
Number of Programmable I/Os	38
Instruction Set Architecture	ARM Cortex M0
ADCs	12 bit
Program Memory Type	FLASH

Key Features

Incorporates high-performance ARM Cortex-M0+ 32-bit RISC core for efficient processing.
Operates at a maximum clock frequency of 32 MHz for responsive computation.
Features 32 kB Flash program memory, 8 kB RAM, and 256 bytes data EEPROM.
Designed with 38 programmable I/Os and supports I2C and SPI interface types.
Package is a 7mm x 7mm LQFP surface mount with 48 pins for compact integration.
Wide operating voltage range from 1.8 V to 3.6 V accommodating various power supplies.
Operational temperature range from -55°C to 175°C suitable for harsh environments.
Low power consumption modes including 0.23 µA standby and 0.35 µA stop modes.

Product Description

STMicroelectronics STM32L010C6T6 is a high-efficiency 32-bit ARM Cortex-M0+ microcontroller designed for ultra-low power embedded applications. It operates at a maximum clock frequency of 32 MHz and incorporates 32 kB of Flash memory, 8 kB of RAM, and 256 bytes of data EEPROM, delivering a versatile memory profile suitable for diverse industrial, laboratory, and embedded system implementations.

Housed in a compact 48-pin LQFP package measuring 7 mm by 7 mm, this surface-mount device supports 38 programmable input/output pins, interfacing through I2C and SPI communication standards. Its wide operating voltage range of 1.8 to 3.6 V and extreme temperature tolerance from -55°C up to 175°C makes it reliable for demanding environments such as automotive, industrial control, and commercial electronics.

The microcontroller includes 12-bit analog-to-digital converters (ADCs) and advanced power management features, including ultra-low-power brownout reset, POR/PDR with selectable thresholds, and super-low current standby and stop modes, minimizing energy consumption.

Additional embedded features include 31 I/Os that are 5-volt tolerant, multiple wakeup pins, and sector protection against unauthorized read/write operations, fostering robust security and control in critical embedded designs.

This product complies with the RoHS3 and REACH environmental directives, reinforcing its suitability for eco-conscious manufacturing and deployment. Incorporates ARM Cortex-M0+ 32-bit RISC core operating at 32 MHz. 32 kB Flash memory, 8 kB RAM, 256 bytes data EEPROM support.

38 programmable I/Os with I2C and SPI interface options. Wide supply voltage (1.8 V to 3.6 V) and extended temperature range (-55°C to 175°C). Ultra-low-power operation with advanced standby and stop power modes. Compact 48-pin LQFP surface-mount package (7 mm x 7 mm).

12-bit ADCs and brownout reset with multiple threshold options. RoHS3 and REACH compliant for environmental safety.

Ideal for embedded systems in industrial, automotive, laboratory instruments, and consumer electronics requiring low power consumption and reliable operation. Explore more in the Microcontrollers category at EnvMart.
