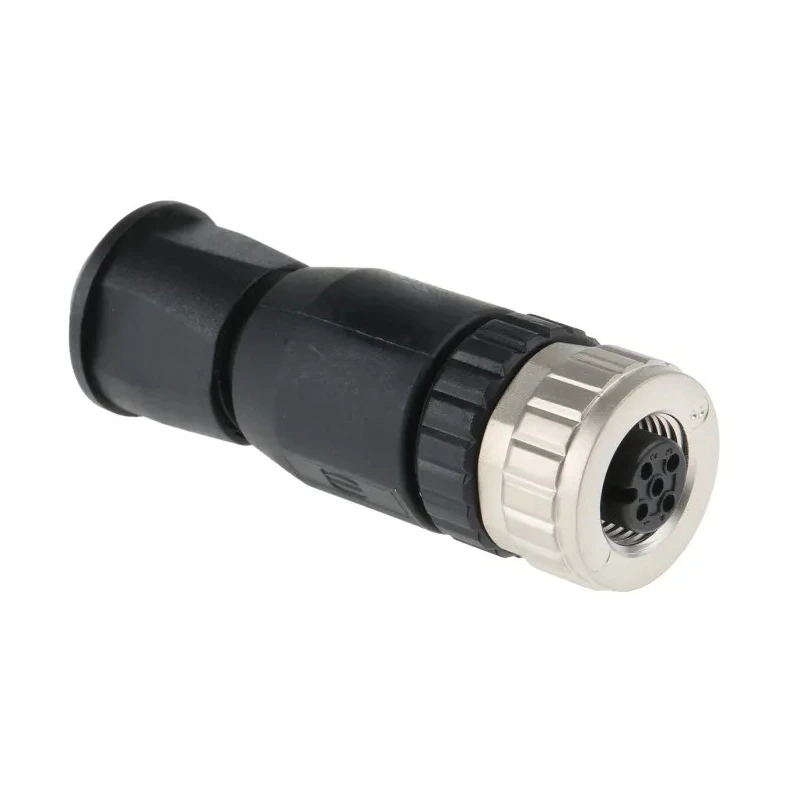

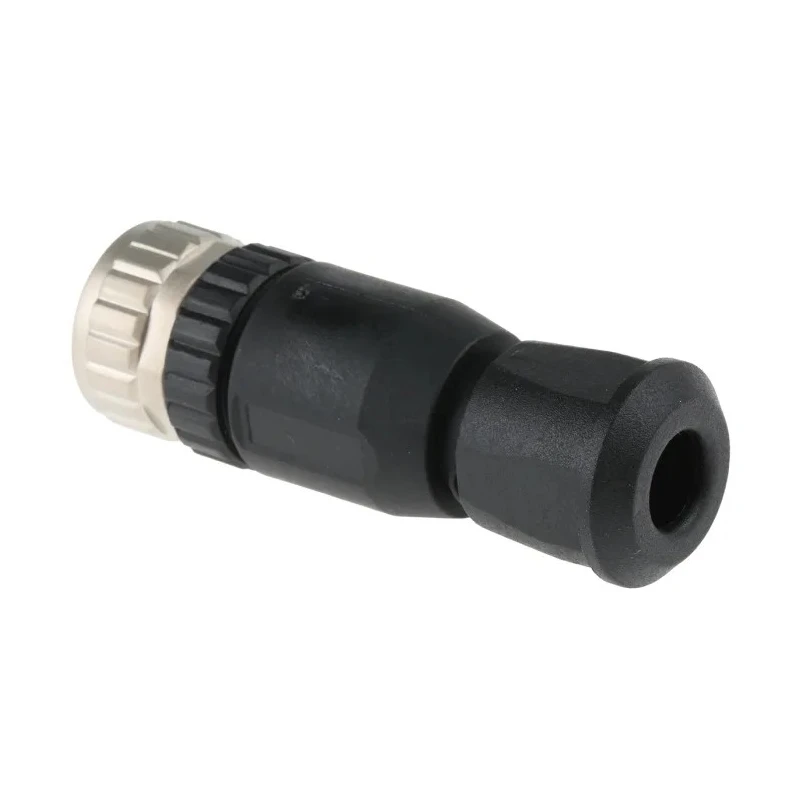

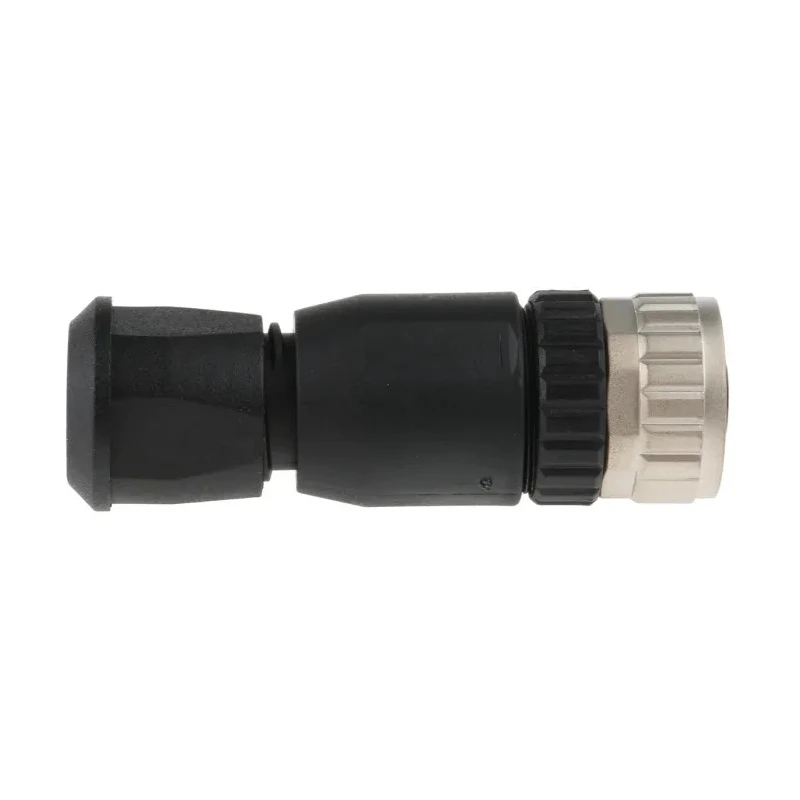

HARTING Circular Connector 4 Contacts Cable M12 Connector Socket Female IP67 M12 Series 21033192401

HARTING 21033192401 Circular Connector is a high-performance 4-contact cable-mounted M12 series socket designed for industrial electrical connections. Its female contacts are gold plated over nickel to ensure low resistance and corrosion protection while maintaining excellent conductivity.

The connector supports a current rating of 7.5A and voltage up to 250V, making it suitable for various industrial and automation tasks. It incorporates a screw-on mating type and screw termination mechanism that secure the connection reliably in demanding environments.

Constructed from die cast zinc with a polyamide shell, the housing provides a durable and robust enclosure resistant to mechanical stress. The connector's design with a straight body orientation and shell size of 20 mm facilitates straightforward cable installation and integration.

Its IP67 ingress protection rating ensures complete protection against dust ingress and temporary water immersion, enabling dependable operation in harsh conditions. The operation temperature range from -30°C to 85°C accommodates a wide variety of environments.

Typical applications include electrical equipment assemblies, HVAC installations, industrial automation systems, and general industrial environments requiring durable and reliable circular connectors.

This connector features 4 gold-plated brass contacts ensuring reliable electrical connections. It supports currents up to 7.5A and voltage up to 250V for versatile use. The screw-on mating type and screw termination ensure secure and durable connections.

Operating temperature range extends from -30°C to 85°C, suitable for harsh environments. The housing is manufactured from die cast zinc with a polyamide shell for robust protection. Designed with a straight body orientation coded as A, compatible with M12 series plugs.

It provides unshielded connection with a cable mount and a shell size of 20 mm. The mating cycle rating exceeds 100 cycles for extended equipment longevity. Certified with IP67 rating, this connector is dust-tight and resistant to temporary water immersion.

Applications include electrical equipment, HVAC systems, industrial automation, and general industrial use.

For professionals requiring a reliable, rugged, and compact circular connector, the HARTING 21033192401 offers dependable performance under demanding industrial conditions. Explore additional options within the Industrial Circular Connectors category on EnvMart for complementary connectivity solutions.
