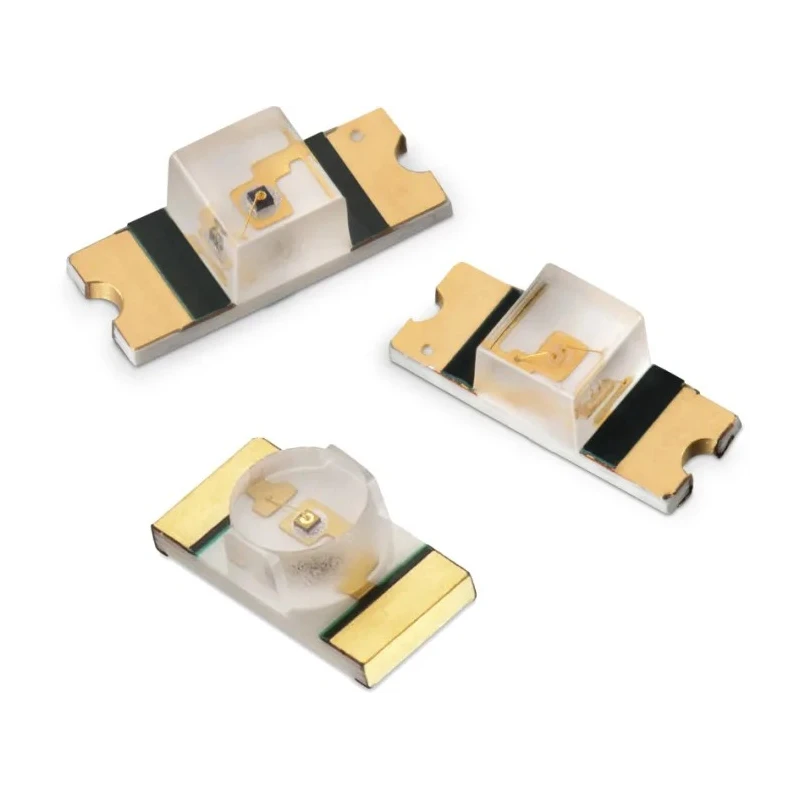

Wurth Elektronik 2.4 V Red LED 1205 Surface Mount WL-SMRW 156125RS75000
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Model | 156125RS75000 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SMRW |
| Maximum forward current | 30mA |
| Viewing angle | 140 ° |
| Package Type | 1205 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 624nm |
| Forward Voltage | 2.4V |
| Number of Pins | 2 |
| LED Luminosity | 110 mcd |
| Maximum Power Dissipation | 48mW |
| Lens Dimensions | 3.2 x 1.2 x 1.1 mm |
| Lens Shape | Rectangular |
Key Features
- Designed for narrow space applications with a small 1205 footprint.
- Surface mount package suitable for automatic placement machines.
- Offers a 140° viewing angle with rectangular clear lens.
- Low power consumption with a maximum power dissipation of 48 mW.
- Emits bright red light with a dominant wavelength of 624 nm.
- Compliance with RoHS standards ensures material safety.
- Equipped with 2 pins for efficient electrical connection.
- Ideal for front panel indicators and backlighting applications.
Product Description
Wurth Elektronik 156125RS75000 is a high-quality red LED designed for surface mounting applications with a 2.4 V forward voltage and low power consumption of 48 mW. The small 1205 package size measuring 3.2 x 1.2 x 1.1 mm makes it ideal for compact circuit designs where narrow space and exceptional brightness are required.
The LED emits bright red light with a luminosity of 110 millicandela and a dominant wavelength of 624 nm, ensuring vivid color output and clear visibility. Its rectangular clear lens and 140° viewing angle provide wide illumination coverage, suitable for front panel indicators, LCD backlighting, and keypad or switch backlighting applications.
Built to industry standards, including RoHS compliance, this LED supports automatic placement machinery for efficient manufacturing processes. It features 2 pins and a tape & reel packaging type optimized for high-volume automated assembly lines.
Applications for the Wurth Elektronik 156125RS75000 LED range from front panel indicators in electronic devices to instrumentation, networking and telecommunications, mobile devices, medical and healthcare equipment, fitness wearables, and audio/video systems. Its small footprint and robust design make it versatile for various industrial and commercial lighting applications.
Designed for narrow space applications with a small 1205 footprint. Surface mount package suitable for automatic placement machines. Offers a 140° viewing angle with rectangular clear lens. Low power consumption with a maximum power dissipation of 48 mW.
Emits bright red light with a dominant wavelength of 624 nm. Compliance with RoHS standards ensures material safety. Equipped with 2 pins for efficient electrical connection. Ideal for front panel indicators and backlighting applications.
Compatible with LCD backlighting, keypad, symbol, and switch button illumination. Suitable for use in instrumentation, telecommunications, and mobile devices. Explore more Wurth Elektronik LED components and lighting solutions at EnvMart for reliable industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 2.4 V.
The maximum power dissipation for the Wurth Elektronik 156125RS75000 is 48 mW.
It offers a viewing angle of 140 °.
The luminosity of this LED is 110 millicandela.
This model is packaged in tape & reel format, suitable for automated assembly.
The package size is 3.2 x 1.2 x 1.1 mm.
It is equipped with 2 pins for electrical connection.
Yes, the Wurth Elektronik 156125RS75000 is compliant with RoHS standards.
This LED is ideal for front panel indicators, backlighting, and various electronic devices including telecommunications and medical equipment.
The dominant wavelength of the emitted light is 624 nm, producing bright red light.
It features a surface mount design, suitable for automatic placement machines.
This model belongs to the WL-SMRW series.
