TDK N97 PQ 26/25 Transformer Ferrite Core, 5150 nH, Maximum Operating Temperature 180°C B65877B0000R097

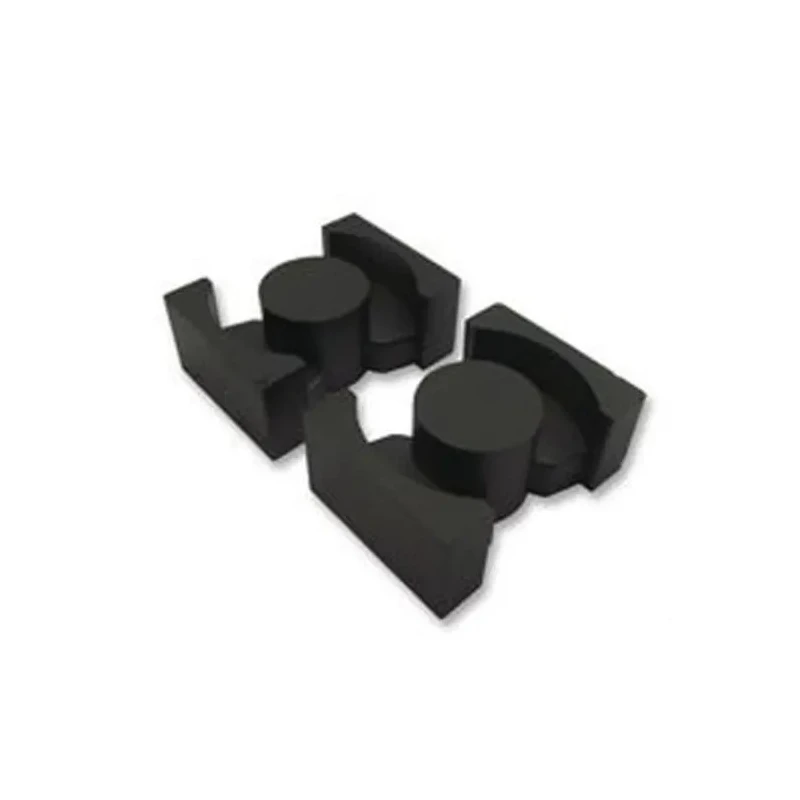

TDK B65877B0000R097 transformer ferrite core PQ 26/25 is a high-performance ferrite core specifically engineered for power transformers. It features an AL rating of 5150 nH, which ensures effective inductance suitable for transformer applications requiring precise magnetic characteristics. It supports a maximum operating temperature of 180°C, making it suitable for demanding industrial and electronic environments.

This transformer ferrite core is made from premium N97 ferrite material, known for its excellent magnetic properties and minimal core losses. The PQ 26/25 core size is optimized with a round leg design that reduces winding length, increasing efficiency while also providing a wider outer surface for enhanced heat dissipation. This thermal management capability reduces the overall thermal resistance and improves transformer reliability and lifespan.

With dimensions of length 26.5 mm, width 19 mm, and depth 10.08 mm, the core is compact yet robust, supporting easy adaptation in various power transformer designs. The core meets the IEC 62317-13 standard, guaranteeing compliance with international transformer core specifications.

The design offers improved shielding for the windings, further reducing electromagnetic interference and enhancing transformer performance. The TDK core is part of the B65877B series, recognized for consistent quality and performance in electronic component applications.

Its applications include industrial transformers, power supplies, and electronic devices that demand stable and reliable magnetic cores. The product is manufactured in India, ensuring adherence to international quality standards with local production efficiency.

The core is made from high-quality N97 ferrite material ensuring efficient magnetic performance. It has a compact size with length 26.5 mm, width 19 mm, and depth 10.08 mm for easy integration. The PQ 26/25 core size optimizes winding length and improves thermal dissipation.

Designed to comply with IEC 62317-13 standards for transformer cores. Offers better shielding to transformer windings and lower thermal resistance. Explore more Transformer Cores and electronic components in the Electronics & Electricals category at EnvMart for your industrial and commercial applications.
