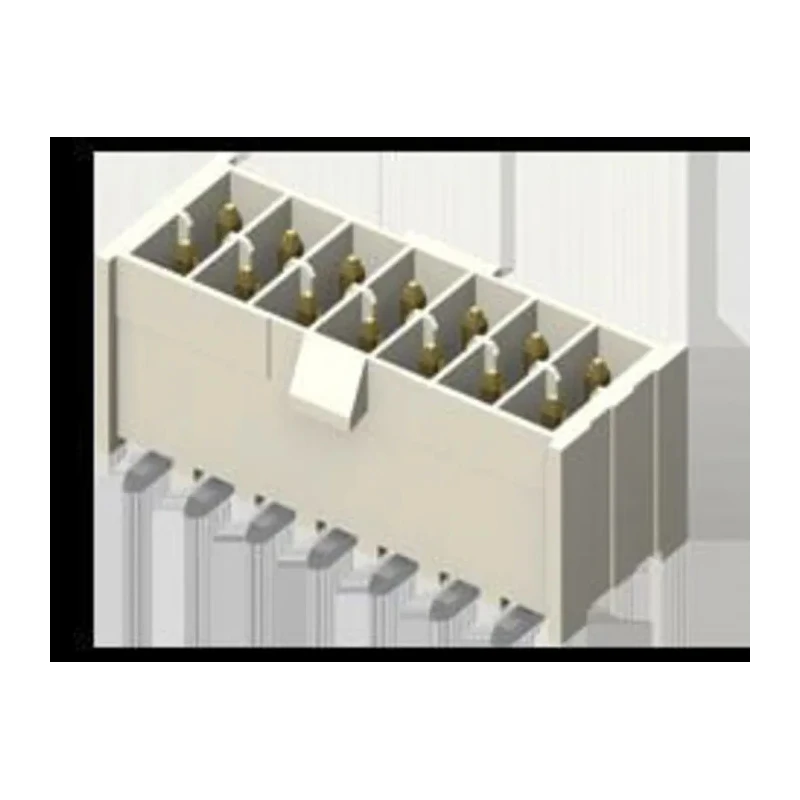

Samtec IPL1 Series Right Angle Through Hole PCB Header, 12 Contacts, 2.54 mm Pitch, 2 Row, Shrouded IPL1
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 954V |
| Brand | Samtec |
| Orientation | Right Angle |
| Model | IPL1 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | IPL1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 1.52mm |
Key Features
- Features a pitch of 2.54 mm for precise PCB alignment.
- Includes 12 male phosphor bronze contacts with gold plating for excellent conductivity.
- Shrouded housing made from liquid crystal polymer enhances durability and protection.
- Designed with two rows and right angle orientation for compact PCB mounting.
- Rated for voltage up to 954V and current up to 3.8A at 95°C.
- Operating temperature range from -55°C to 125°C suits harsh environments.
- Mount type is through hole, providing strong mechanical connection.
- Tail pin length is 1.52 mm ensuring proper solder termination.
Product Description
Samtec IPL1 Series Right Angle Through Hole PCB Header, model IPL1, features 12 contacts with a 2.54 mm pitch arranged in 2 rows in a shrouded, right angle configuration. This PCB header is designed for wire-to-board connections in demanding industrial and electronic applications requiring compact and reliable connectors.
The housing material is liquid crystal polymer, providing excellent mechanical strength and temperature resistance. Contact material is phosphor bronze with gold plating, ensuring low contact resistance and durability.
With a rated voltage of 954 V and current capacity of up to 3.8 A at 95°C, it supports high-performance circuits. The operating temperature range from -55°C to 125°C allows use in wide industrial, communications, computing, and instrumentation settings.
Termination type is solder through hole with a tail pin length of 1.52 mm, providing robust mounting and reliable electrical connection to PCBs. The male contact gender fits diverse mating connectors.
This right angle, shrouded PCB header design reduces risk of short circuits and damage to pins, making it ideal for compact, multi-row board layouts. It is suitable for electronic manufacturing, maintenance, and prototyping in sectors such as industrial equipment, medical devices, and automation.
Features a pitch of 2.54 mm for precise PCB alignment. Includes 12 male phosphor bronze contacts with gold plating for excellent conductivity. Shrouded housing made from liquid crystal polymer enhances durability and protection.
Designed with two rows and right angle orientation for compact PCB mounting. Rated for voltage up to 954V and current up to 3.8A at 95°C. Operating temperature range from -55°C to 125°C suits harsh environments. Mount type is through hole, providing strong mechanical connection.
Tail pin length is 1.52 mm ensuring proper solder termination. Manufactured in the United States adhering to quality standards. This product is categorized under PCB Headers at EnvMart. Explore more from Samtec and other trusted brands for your electronic component needs.
